40kva Open Type Power Genarators Diesel With 6120 Controller Low Price
GENSET MODEL | Genset Specification | Engine Specification | Alternator Model | ||||||||
KVA | Cons 100% (L/H) | dB(A) @7m | Tank (L) | Model | Cyl. | Gov. | Asp. | ||||
ESP | PRP | ||||||||||
KP-I40P | 40 | N/A | 99 | 74 | 400 | 4JB1TA | 4 | E | TCA | -- | |
KP-I40P | 32 | N/A | 99 | 74 | 400 | 4JB1TA | 4 | E | TCA | -- | |
Diesel generator Specifications
1. Powered by reliable engines
2. Branded alternator
3. Open type, silent type or super silent type generator
4. ISO, CE certified
Genset specs:
Engine Brands: Powered by Cummins,Powered by Perkins,Powered by Lovol,Powered by Deutz,Powered by Doosan, Powered by Mitsubishi, Powered by Kubota, Powered by Yanmar or other
reliable Chinese engines such as Fawde and Laidong.
Rated output: 2 to 2,000kW/2 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Cooling method: closed water-cooled or air-cooled
Starting method: electric start or recoil start
Rated speed: 1,500/1,800/3,000/3,600rpm
Noise level: 56 to 75dB, 7 meters away

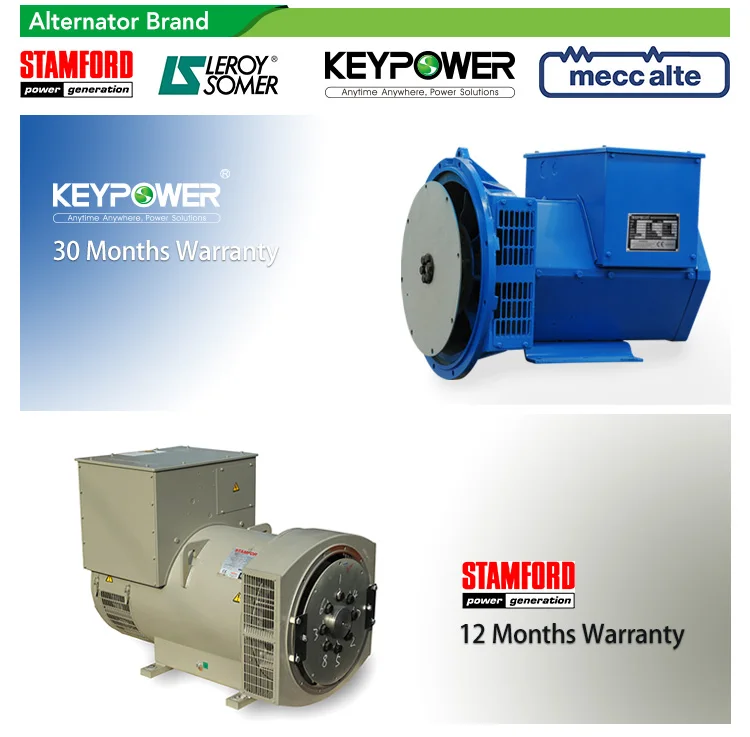

Alternator:
Brands: By Stamford, By Leroy Somer, By Mecc Alte and Keypower brushless alternator
Rated output: 8 to 2,000kW/10 to 2,500kVA
Rated voltage: L-N 110 to 277V, L-L 220 to 480V
Rated frequency: 50/60Hz
Phase: 3-phase, 4-wire or 1-phase, 2-wire
Connection: y or other type connection
Rated speed: 1,500/1,800rpm
Excitation: harmonic excitation or phase compound or brushless
Voltage regulation: AVR automatic
1.0% voltage regulation in static conditions (maximum)
Protection class: IP23
Control panel: Deepsea, ComAp, Keypower
THE PANEL IS PROVIDED WITH:
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
MCB of suitable rating with overload and short-circuit protection
Optional with AMF control panel or with ATS (automatic transfer switch)

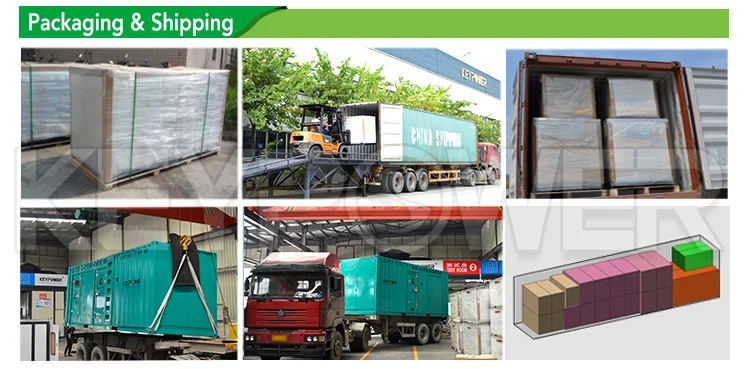

Packing:
Wooden packaging, Carton packaging, PE film with hard paper corner protector
Applications:
With advanced reasonable structure, high efficiency, low vibration and noise, smooth running, high reliability, easy handling, KEYPOWER generators are widely used in national defense, telecommunications, construction site, commercial buildings, industrial and mining sites, oil fields, roads, ports, villas, banks, hospitals etc.
GFF KEYPOWER is ready to supply GENSETS range from 3kw to 1000kw. These generators cover different types for general and special users, including open type, soundproof type, trailer type, and containerized. etc. We always adhere to the vision of quality first, customers first. Because we believe in right determination to achieve perfection. Our mission is to supply quality diesel power generating set at the best prices in a quality service to assure perfect power solutions. We provide one year manufacturer limited warranty. All machine's fault caused by the defects in material and workmanship of our generator produced by GFF KEYPOWER is warranted, during the warranty period, GFF KEYPOWER will offer technical support and sending parts for replacement if needed. The distributors of our products should examine the generators which have problem and feedback to us with related picture and products serial number. GFF KEYPOWER does not provide warranty for battery and filters. Warrantee period:1 year or 1000 hours, whichever comes first.
