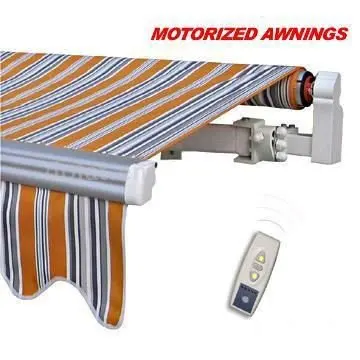

SCVE 45mm diameter tube Tubular Motor Non- manual AC Motor electric tubular motor for rolling awning window
MOQ:100 Piece(s)
Payment Method : L/C T/T D/P
Keywords:tubular motor AC tuhbular motor
| Product Category: | Construction & Decoration > | Trademark: | |
| Product Package: | Carton or Pallet | Specifications: | |
| Place of Origin: | Zhejiang, China | Port: | shanghai/ningbo |
SCVE Tubular Motor Specifications:
?Model: SF45 S1
?Torque: 10Nm,20Nm,30Nm,40Nm,50Nm
?Rotating: 12/17 rpm
?Rated Voltage: 230V
?Rated Frequency: 50Hz
?Rated Power: 162-282 W
?Rated Current: 0.71-1.23 A
?Limit Turns: 26 turns
?Protection Index: IP44
?Running Time: ≥ 4
?Net Weight:2.1-3.2 Kg
?Lifting: 38-110Kg
?The Motor Length:595 mm
?Motor Color: Blue and follow with customers' demands
?Motor Voltage: 230/110 follow with customers' demands
?Remark:1)Working temperature:-30°C-50°C
2)Remote radio control of operators
3)Precise limit switch. Repeat limiting precise degree
4)Quite running:40db-57db
5)With braking, more reliable
Certificate: TUV/UL/ CE/CCC/ GS/ ROHS/FCC |
Packaging:neutral box or gift box as your demands. |
Payment terms: T/T (with 30% deposit,70% B/L copy),L/C at sight |
Loading port: Shanghai |
Sample lead time: 5-7 days |
Order lead time: 25-30 days |
Offer quotation on FOB Shanghai or CIF port. |
