Single Station Blow Molding Machine

Print,Pack,Plastic Rubber & Plastics Products

FOB Price:US$ 20,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T Wesstern Union

Keywords:Blow Molding Machine

Inquire


Add to Favorites

Product Category: Print,Pack,Plastic > Rubber & Plastics Products Trademark: YIJIU
Product Package: Specifications:
Place of Origin: Jiangsu, China Port: Shanghai
Overview
Quick Details

  • Condition:

  • New

  • Application:

  • Bottle, Plastic bottle

  • Plastic Processed:

  • PE

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • YIJIU

  • Voltage:

  • 380V/50HZ

  • Dimension(L*W*H):

  • 2.8*2.2*2.4

  • Certification:

  • CE ISO

  • Warranty:

  • 1 Year

  • Product name:

  • Fully Automatic extrusion blow molding machine with robot

  • Color:

  • Chosen

  • Key words:

  • Fully Automatic extrusion blow molding machine

  • OEM&ODM Service:

  • Yes

  • Type:

  • High speed plastic bottle making machine

  • Control System:

  • PLC+touch Screen

  • Energy Saving:

  • Yes

  • Easy Operation:

  • Yes

  • After sales:

  • Engineers available to service machinery overseas

  • Blow Moulding Type:

  • Extrusion Blow Moulding

  • Automatic:

  • Yes

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Power(W):

  • 31kw

  • Weight:

  • 4.3Ton
Supply Ability

  • Supply Ability:

  • 4 Set/Sets per Year

Packaging & Delivery

  • Packaging Details

  • General package

  • Port

  • Shanghai

  • Lead Time :

  • Quantity(Sets)1 - 1>1
    Est. Time(days)60To be negotiated

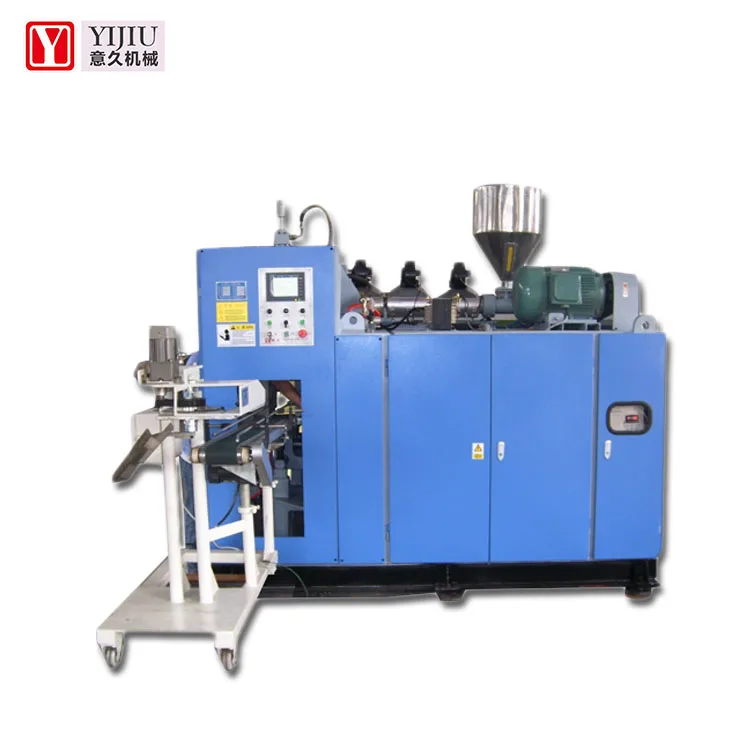

Fully Automatic 2 Liter PP PC PVC PE HDPE Plastic Detergent Cosmetic Bottle Extrusion Blow Molding Machine With Robot

Product Description

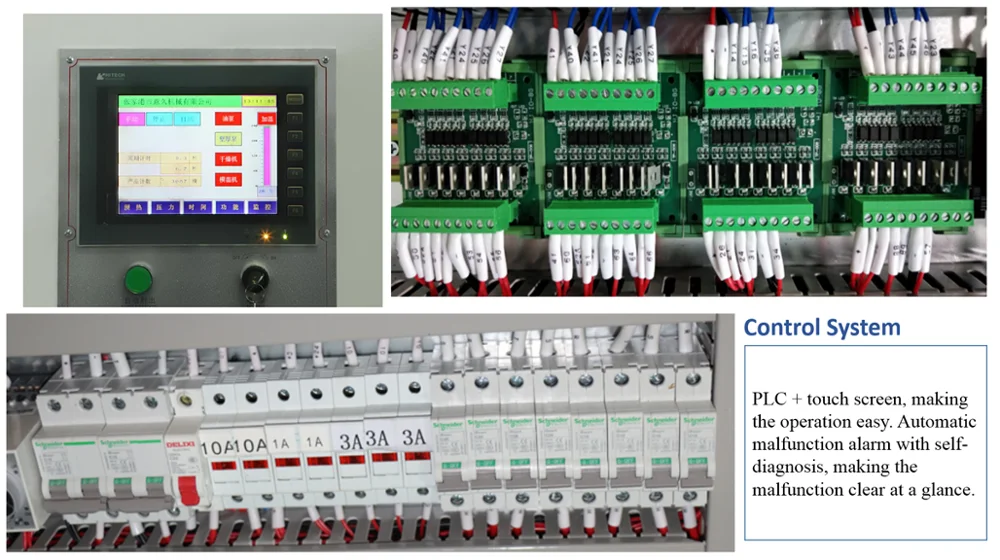

*PLC+touch screen: making the operation easy.

*Automatic malfunction alarm: with self-diagnosis,

making the malfunction clear at a glance.

*Center input die head: eliminating the knit line completely and making it easy to change the material and color.

*Double linear guide rail: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.

*Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.

*High speed and efficient plasticizing: mixing well and ensuring the produce purity.

Product Details



Main Parameters

Available material

PE,PP,etc.

Max. Product Volume

2

(L)

Dry Cycle

900x2

(pcs/h)

Machine Size

2.8x2.2x2.4

(LxWxH)(m)

Machine Weight

4.3

(Ton)

Installed capacity

31

KW

Plasticizing System

Screw Diameter

60

(mm)

Screw L/D Ratio

24

L/D

Plasticizing capacity

70

(kg/h)

Screw Heating Zone

3

(Zone)

Screw Drive Power

15

(KW)

Extrusion Die Head

Type

Continuous Die Head

NO. of Heating Zone

3

(Zone)

Die Heating Power

1.8

(KW)

Max. Die Diameter

100

(mm)

Opening And Clamping System

Clamping Force

40

(KN)

Mold Stroke

128-368

(mm)

Max. Mold Size

300x320

(WxH)(mm)

Hydraulic System

Oil Pump Power

5.5

(KW)

System pressure

12

(MPa)
