Zhangjiagang Yijiu machinery Co., Ltd.

Business Type:Manufacturer

Main Products: Blow Molding Machine

view on mobile

Double Station Blow Molding Machine

Print,Pack,Plastic

FOB Price:US$ 29,000.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T Wesstern Union

Keywords:Double Station Blow Molding Machine

Inquire


Add to Favorites

Product Category: Print,Pack,Plastic > Trademark: Yijiu
Product Package: Specifications:
Place of Origin: Jiangsu, China Port: Shanghai
Overview
Quick Details

  • Condition:

  • New

  • Application:

  • bottle, bottle,jerrycan,toy,special shape parts......

  • Plastic Processed:

  • PE

  • Screw Design:

  • Single-screw

  • Place of Origin:

  • Jiangsu, China

  • Brand Name:

  • Yijiu

  • Voltage:

  • 380V

  • Dimension(L*W*H):

  • 3.2*2.2*2.5

  • Weight:

  • 7.8 TON

  • Certification:

  • CE

  • Warranty:

  • 1 year

  • Install:

  • by engineer

  • Color:

  • multicolor

  • Available material:

  • pe,pp,pvc,petg

  • OEM&ODM Service:

  • Yes

  • Type:

  • High speed plastic bottle making machine

  • Control System:

  • PLC+touch Screen

  • Energy Saving:

  • Yes

  • Easy Operation:

  • Yes

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Automatic Grade:

  • automatic

  • Power(W):

  • 56KW
Supply Ability

  • Supply Ability:

  • 1 Set/Sets per Month

Packaging & Delivery

  • Packaging Details

  • General Package

  • Port

  • Shanghai

  • Lead Time :

  • Quantity(Sets)1 - 1>1
    Est. Time(days)45To be negotiated
Video Description
00:00
01:10

Automatic High Speed Energy Saving HDPE PVC PP PC Small Plastic  Bottle  Blowing Making  Extrusion Blow Molding Machine Price

Product Description

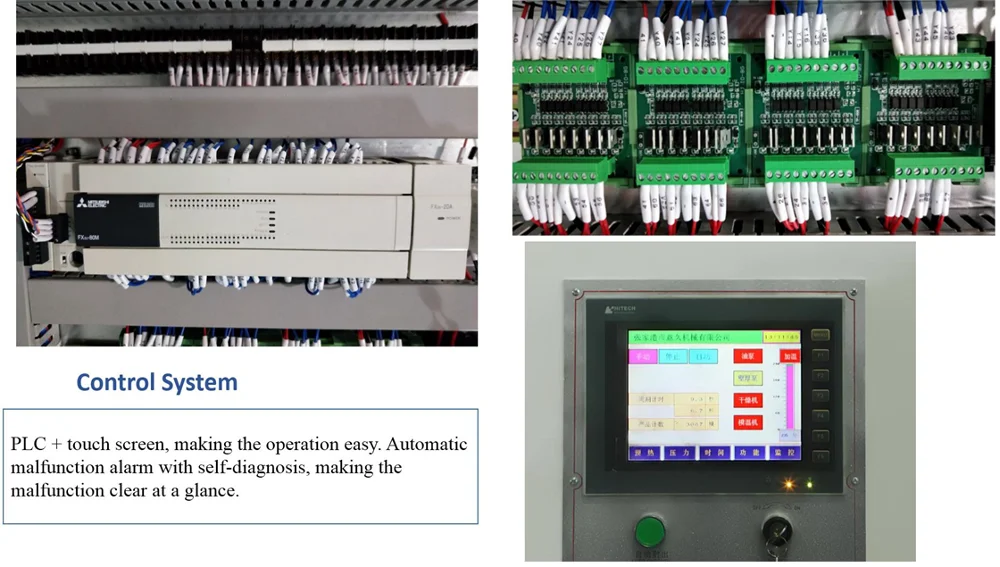

*PLC+touch screen: making the operation easy.

*Automatic malfunction alarm: with self-diagnosis,

making the malfunction clear at a glance.

*Center input die head: eliminating the knit line completely and making it easy to change the material and color.

*Double linear guide rail: Unique “liner guide” to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.

*Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.

*High speed and efficient plasticizing: mixing well and ensuring the produce purity.



Product Details



Main Parameters

Available material

PE,PP,etc.

Max. Product Volume

5

(L)

Dry Cycle

700x2

(pcs/h)

Machine Size

3.2x2.2x2.5

(LxWxH)(m)

Machine Weight

7.8

(Ton)

Installed capacity

46.5

KW

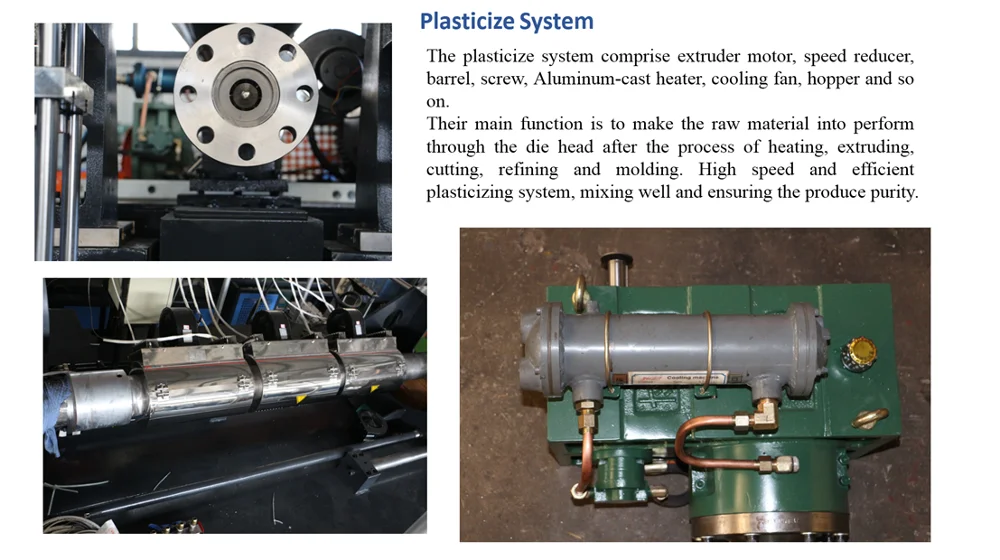

Plasticizing System

Screw Diameter

70

(mm)

Screw L/D Ratio

24

L/D

Plasticizing capacity

90

(kg/h)

Screw Heating Zone

3

(Zone)

Screw Drive Power

22

(KW)

Extrusion Die Head

Type

Continuous Die Head

NO. of Heating Zone

3

(Zone)

Die Heating Power

2.5

(KW)

Max. Die Diameter

140

(mm)

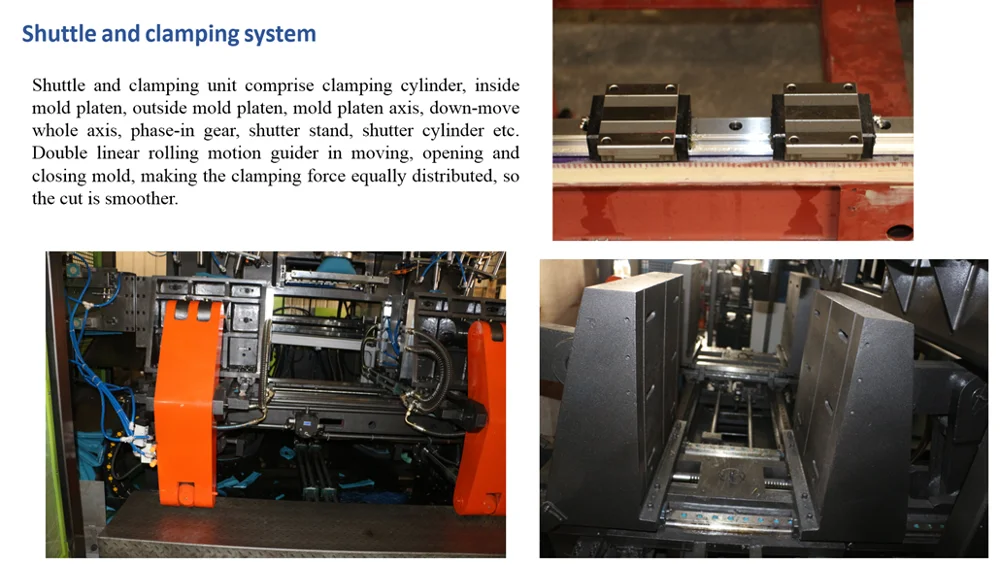

Opening And Clamping System

Clamping Force

65

(KN)

Mold Stroke

164-524

(mm)

Max. Mold Size

380x390

(WxH)(mm)

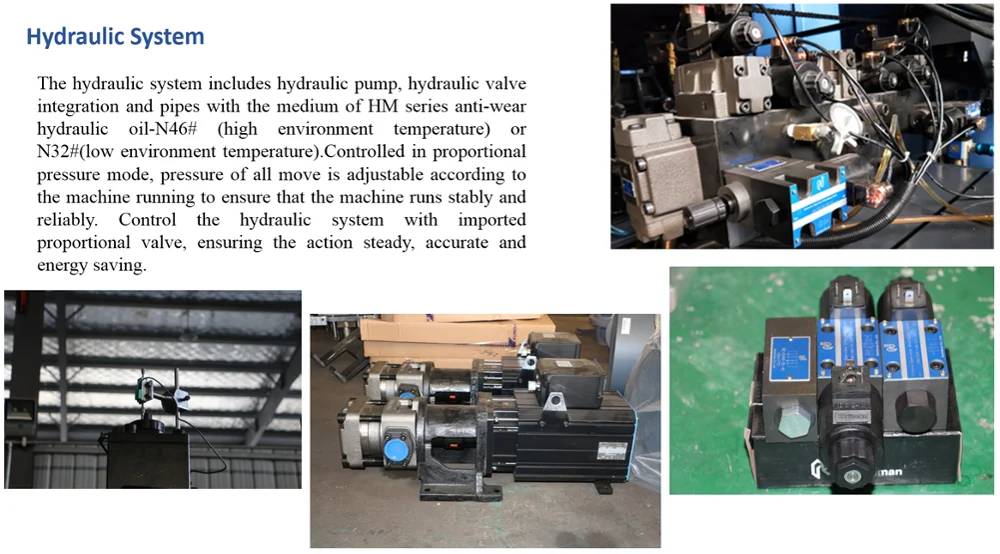

Hydraulic System

Oil Pump Power

7.5

(KW)

System pressure

10

(MPa)









Certificate

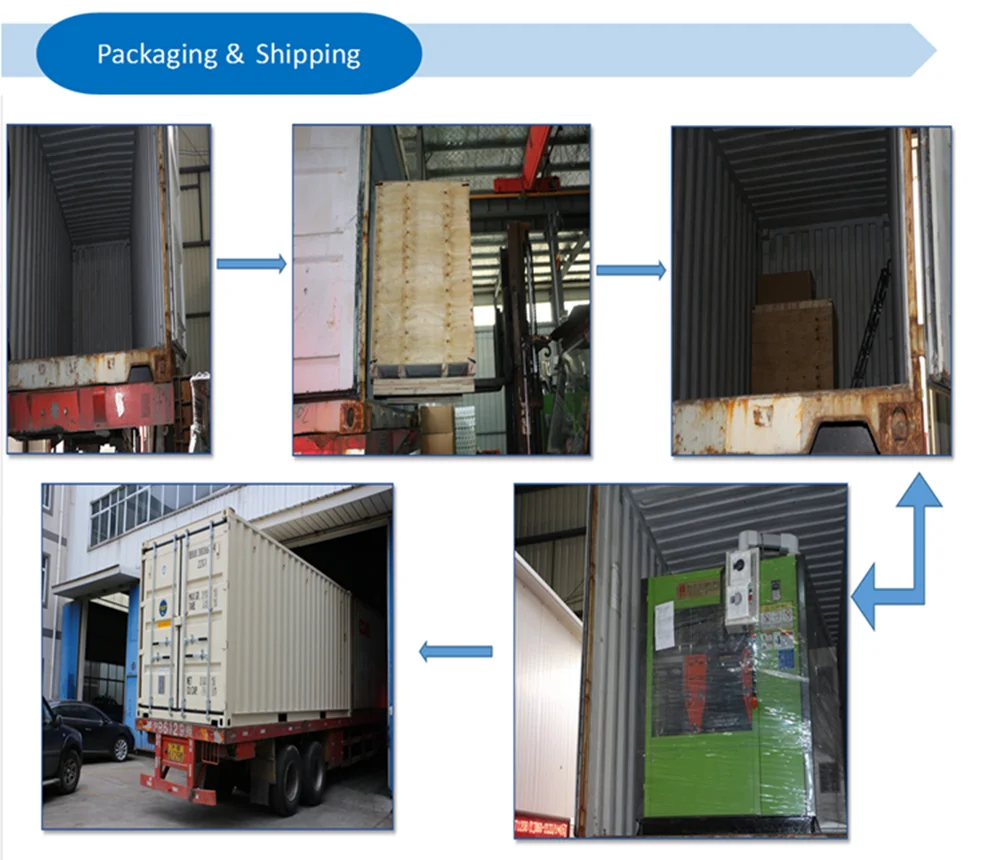

Packaging & Shipping




Contact Name: Mr. Robin WU Contact Email: ro****n@yjmachine.com
Contact Job Title: Manager Contact Mob: 136***318
Contact Tel: 86-512-58342732 Contact Fax: 86-512-58342712
Address: Jinqiao Road,Luyuan Town , Zhangjiagang City , Jiangsu Province ,China Website: https://www.yjmachine.com/
Zhangjiagang Yijiu Machinery Co., Ltd. is located in the new Port City - Zhangjiagang, neighboring Shanghai in the south, the Yangtze River in the north and Jiangyin Yangtze Bridge in the west. The transportation is quite convenient.We have combined the advanced technology and theory with our design, manufacture and sale of fully automatic blow molding machines of 3 series and over 20 types.Our machines are suitable to make 5ml to 200L bottles, drums, cans, containers, toolboxes, oil tanks, and special-shape automobile parts with the material of PE, PP, PVC, PETG, PS, EVA, EVOH, PVDC, ABS, TPE, and TPU.Because of our high quality, dependable performance and competitive price, our machines are bestselling in more than twenty provinces and are also exported to many countries in Southeast Asia, the Middle East, Central Asia, Russia and South Africa. All of our clients have given high reputations for our machines and services.To be honest and innovative is the eternal spirit of Yijiu Machinery. We aim to provide our customers and partners with high quality machines and top after-sales service to help them to create more value in the competitive market.No matter where you are, we speak your words. We are ready to spare no effort to explore the future by our joint efforts.
