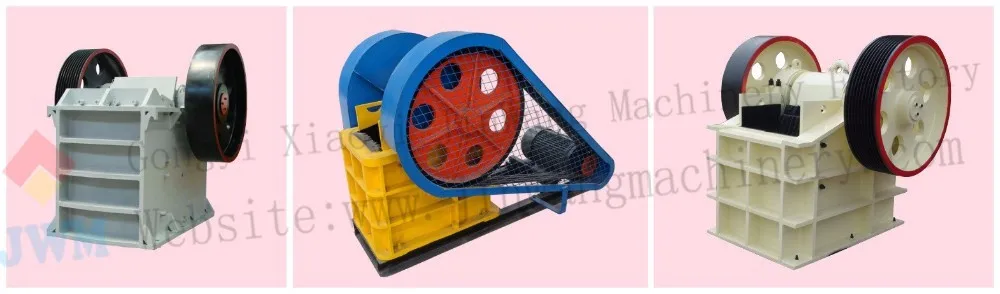

Henan top quality jaw crusher machine construction equipment

The jaw crusher machine as one of the most popular stone-crushing equipments in the world, it is ideally suitable for primary and secondary crushing.

The jaw crusher machine is widely used in mining, smelting, building materials, roads, railways, water conservancy, chemical industry and many other departments, meanwhile all kinds of materials.

  We always earn high compliments from our customer at home and overseas because our high quality and reasonable price.

Model：
PE-**
Max feed size(mm)
Discharge opening range(mm)
Processing capacity
(t/h)
Eccentric shaft speed
(r/min)
Power(kw)
Weight(t)
Dimension(mm)
150*250
150*250
10-40
1-3
250
5.5
0.8
720*660*850
200*300
200*300
15-50
2-6
260
7.5
1.2
910*750*990
200*350
200*350
18-70
3-10
260
11
1.5
1000*870*990
250*400
250*400
20-60
5-20
300
15
2.8
1300*1090*1270
400*600
400*600
40-100
16-60
275
30
7
1730*1730*1630
500*750
500*750
50-100
40-110
275
55
12
1980*2080*1870
600*750
600*750
150-200
80-240
275
55
15.8
2070*2000*1920
600*900II
600*900II
65-160
50-180
250
55
17
2190*2206*2300
750*1060
750*1060
80-140
110-320
250
110
29
2660*2430*2800
800*1060
800*1060
130-190
130-330
250
110
29.8
2710*2430*2800
830*1060
830*1060
160-220
150-226
250
110
30.7
2740*2430*2800
870*1060
870*1060
200-260
190-336
250
110
31.5
2810*2430*2800
900*1060
900*1060
230-290
230-390
250
110
33
2870*2420*2940
900*1200
900*1200
95-165
220-450
200
110
52
3380*2870*3330
1000*1200
1000*1200
195-265
315-500
200
110
55
3480*2876*3330
1200*1500
1200*1500
150-350
400-800
180
160
100.9
4200*3300*3500
1500*1800
1500*1800
220-350
500-1000
180
280
122
5160*3660*4248
1800*2100
1800*2100
300-400
600-1200
160
400
150.6
6210*4013*4716

Main Features

1. Motion characteristics are superior and unique cavity and jaw plate can swap U-turn four times using, reach jaw crushing uniform wear, improve material utilization rate, prolong the service life. Larger than similar processing capacity of more than 15%, saving more than 10% of energy consumption.
2. unique crushing cavity to make the jaw plate material utilization rate is higher.
3. crushing cavity jaw plate tooth peak relative (movable jaw plate and fixed jaw plate), is more conducive to breaking the more hard materials.
4. transmission angle adjustable structure design, in the case of the same discharge port production is higher.
5. the fixed jaw plate and the movable jaw plate are universal, which can effectively reduce the number of the user's spare parts, and make the installation more convenient.
6. discharge port with double jack hydraulic adjustment, adjust faster and more effort.
7. the movable jaw and the frame part can be split structure to facilitate the transportation.

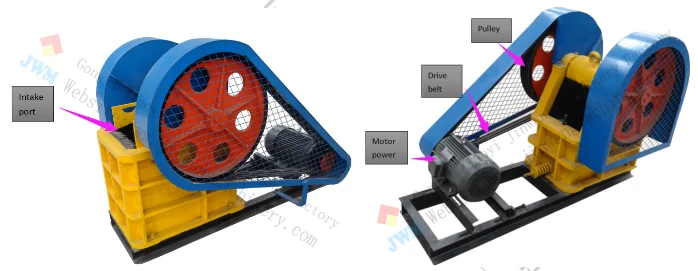

Detailed Images

Machine Parts：Frame body



cast iron, cast stell, welded or rivet joint. Rack structure is quite strong.

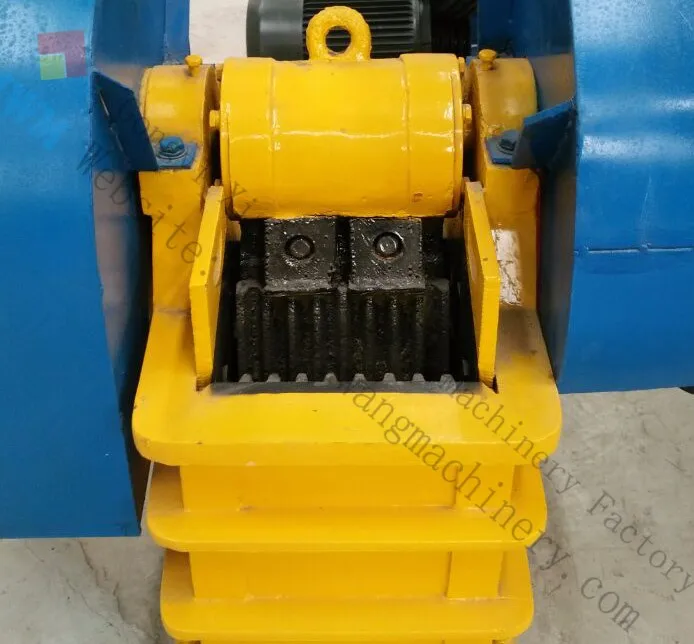

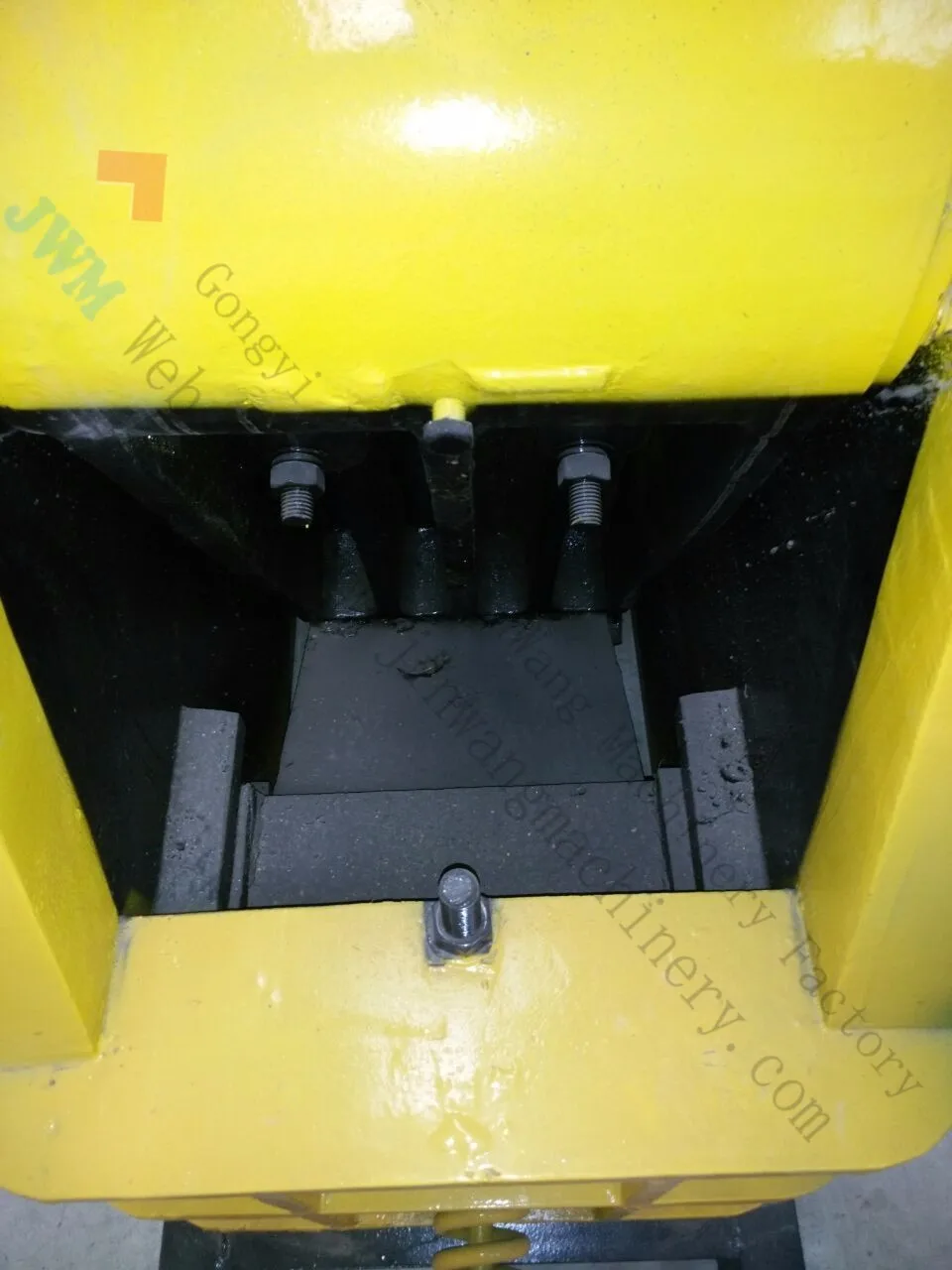

Machine Parts: Intake port


This Intake port consist of two jaw plate, one is fixed jaw plate, vertically fixed the front wall, the other is movable jaw plate, the position is tited, and the fixed jaw plate is formed crushing cavity.
It adopts high strength wear resistant material. Improve the material ulitization and the service life of the machine.

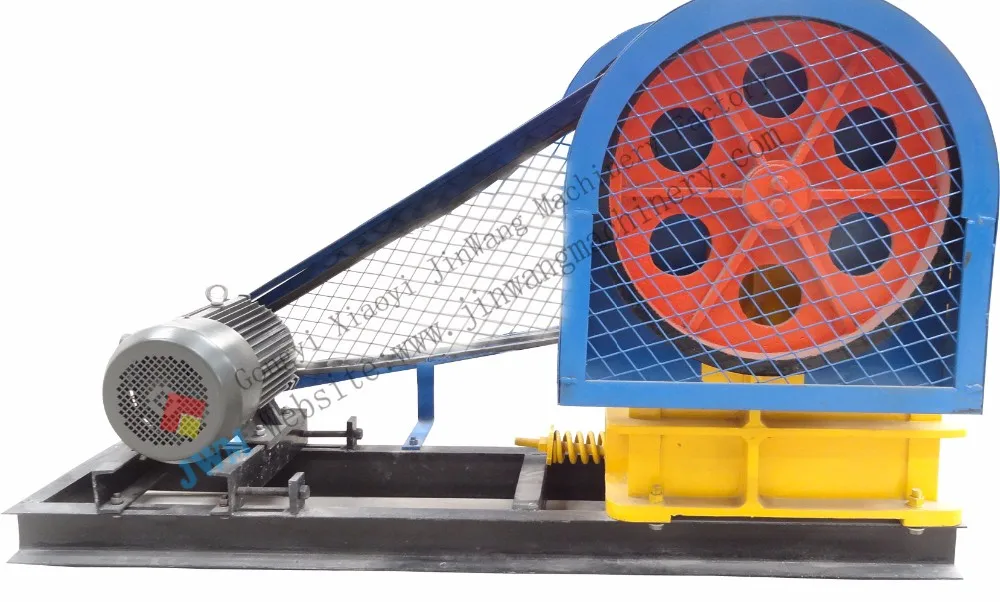

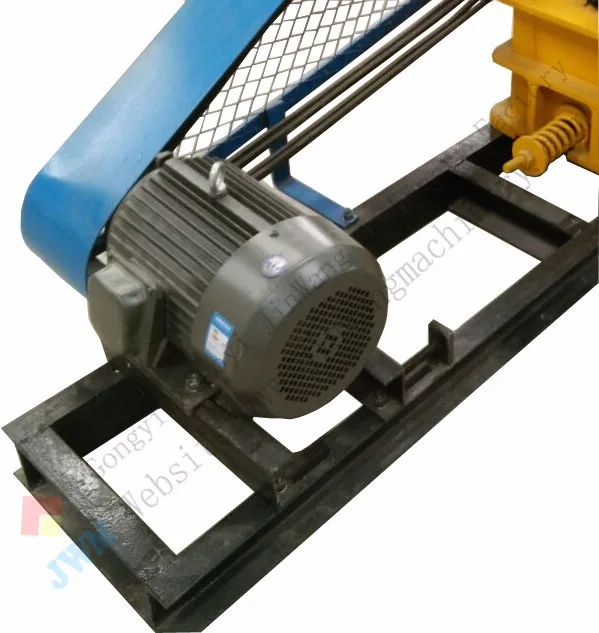

Machine Parts：Motor


 Motor has good performance,  can saving energy and can save all kinds of materials.



Machine parts: Discharging port hydraulic adjusting device

Faster or easier to adjust

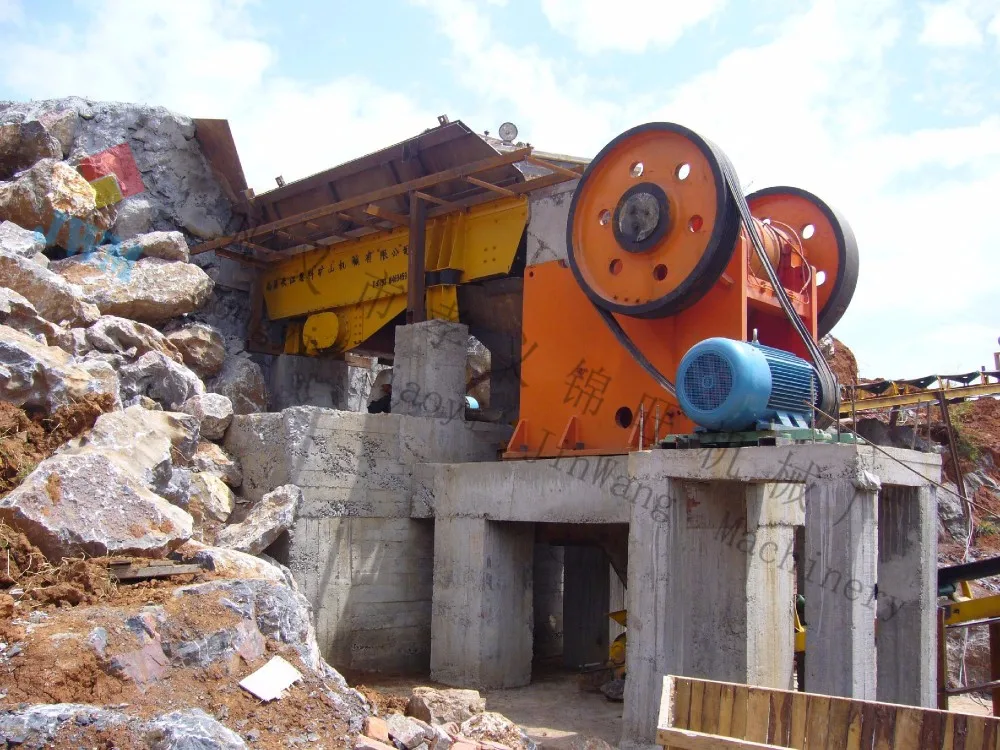

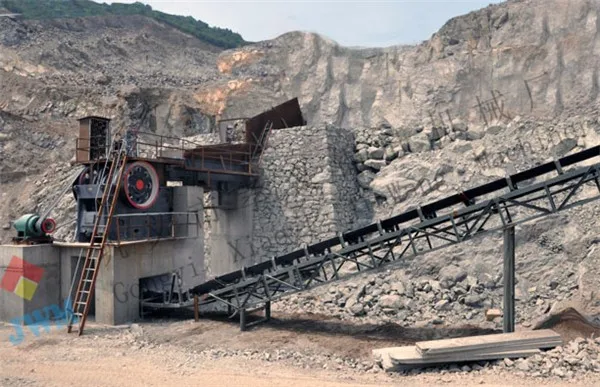

Application

This series jaw crusher has a feature of large crushing ratio, uniform product granularity, simple construction, reliable operation, easy maintenance, low operating cost.
