200L-5000L plastic HDPE blow molding machine
Print,Pack,Plastic Rubber & Plastics Products
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:200L-5000L plastic HDPE blow molding machine
| Product Category: | Print,Pack,Plastic > Rubber & Plastics Products | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Qingdao |
Professional Service

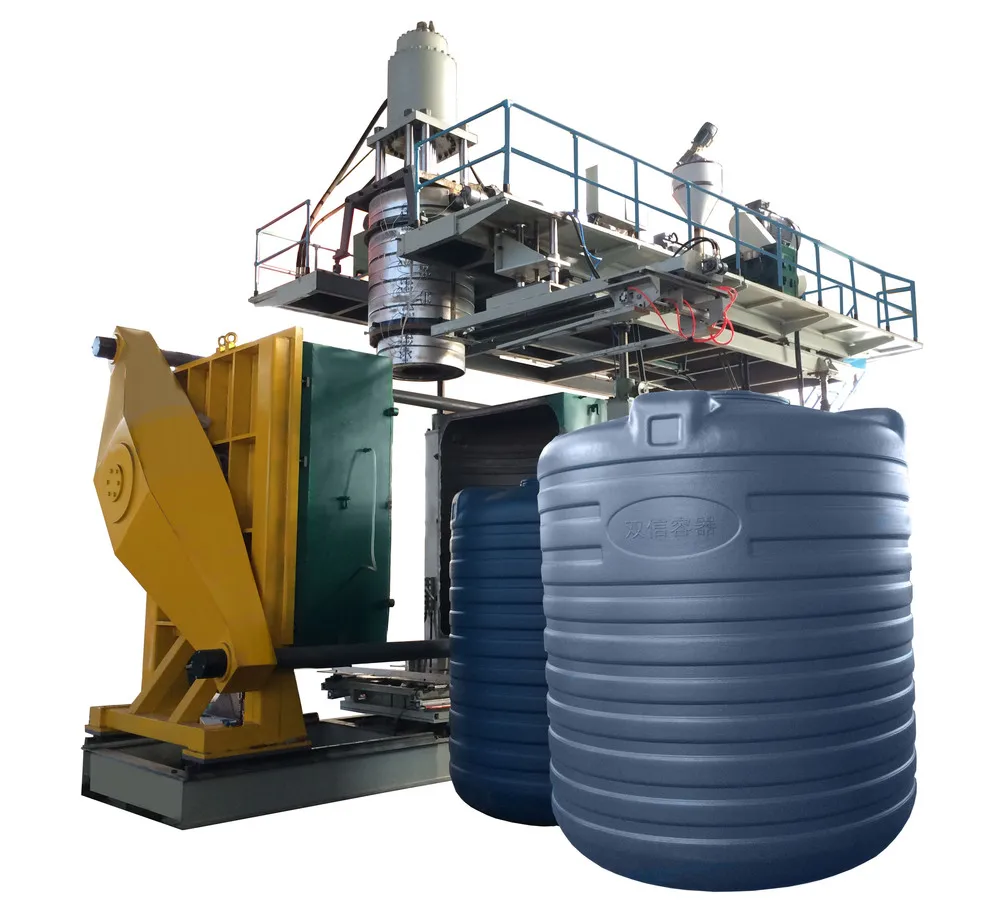

SKJ2000L and 5000L water tank blow moulding machine( 1-4 layers)
| Specifications | Single Layer | Double layers | Three layers |
| Max container capacity | 5000L | 5000L | 5000L |
| Machine weight(TON) | 50 | 58 | 80 |
| Machine size(L*W*h) | 14*4.8*8 | 14*4.8*8 | 14*5*8 |
| Total Power(KW) | 372.5 | 478.5 | 600.5 |
| Average energy consumption | 260 | 330 | 380 |
| Extruder unit | |||
| Screw Diameter | 150 | 130/130 | 120/120/120 |
| Screw Ratio L/D | 30/1 | 30/1 | 30/1 |
| Screw and barrel materials | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA |
| Max Output(kg/h) | 500 | >600 | >650 |
| Driving motor(KW) | 160 | 110/110 | 90/90/90 |
| Temperature Control | 10 | 16 | 24 |
| Heating power(KW) | 50 | 76 | 108 |
| Clamping Unit | |||
| Structure | Double rod | Double rod | Double rod |
| Platen opening stroke(MM) | 1600-4000 | 1600-4000 | 1600-4000 |
| Template size(MM) | 2300-2500 | 2300-2500 | 2300-2500 |
| Clamping force(KN) | 2500 | 2500 | 2500 |
| Die head | |||
| Die head material | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA |
| Accumulator capacity(L) | 220 | 220 | 200 |
| Die core size(MM) | 400-800 | 400-800 | 400-800 |
| Heating power(KW) | 100 | 120 | 160 |
| Temperature Control | 5 | 6 | 6 |
| Parison thickness adjust | MOOG | MOOG | MOOG |
| Hydraulic system | |||
| Main oil pump motor power | 55KW | 55KW | 55KW |
| Servo oil pump motor power | 7.5KW | 7.5KW | 7.5KW |
| Auxiliary parameters | |||
| Air compressor | |||
| Output(m3/min) | 5 | 5 | 5 |
| Air pressure(Mpa) | 1.2 | 1.2 | 1.2 |
| Air tank(m3) | >6 | >6 | >6 |
| Specifications | Single layer | Double layers | Three layers | Four layers |
| Max container capacity | 2000L | 2000L | 2000L | 2000L |
| Machine weight(TON) | 28 | 42 | 50 | 65 |
| Machine size(L*W*H) | 11*4.8*6.5 | 11*4.8*6.5 | 11*5*6.5 | 11*8*6.5 |
| Total Power(KW) | 280.5 | 340.5 | 401.5 | 396.5 |
| Average energy consumption | 180 | 200 | 220 | 220 |
| Extruder unit | ||||
| Screw Diameter | 140 | 110/110 | 100/110/100 | 90/90/90/90 |
| Screw Ratio L/D | 30/1 | 30/1 | 30/1 | 30/1 |
| Screw and barrel materials | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA |
| Max Output(KG/H)) | 400 | 450 | 500 | 500 |
| Driving motor(KW) | 132 | 75/75 | 55/75/55 | 45/45/45/45 |
| Temperature Control | 8 | 12 | 16 | 16 |
| Heating power(KW) | 36 | 48 | 64 | 64 |
| Clamping Unit | ||||
| Structure | Double rod | Double rod | Double rod | Double rod |
| Platen opening stroke(MM) | 1040-3200 | 1040-3200 | 1040-3200 | 1040-3200 |
| Template size(MM) | 1800*1900 | 1800*1900 | 1800*1900 | 1800*1900 |
| Clamping force(KN) | 1250 | 1250 | 1250 | 1250 |
| Die head | ||||
| Die head material | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA | 38CrMoAlA |
| Accumulator capacity(L) | 80 | 80 | 80 | 80 |
| Die core size(MM) | 230-600 | 230-600 | 230-600 | 230-600 |
| Heating power(KW) | 60 | 90 | 100 | 100 |
| Temperature Control | 4 | 5 | 6 | 6 |
| Parison thickness adjust | MOOG | MOOG | MOOG | MOOG |
| Hydraulic system | ||||
| Main oil pump motor power | 45KW | 45KW | 45KW | 45KW |
| Servo oil pump motor power | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| Auxiliary parameters | ||||
| Air compressor | ||||
| Output(m3/min) | 2 | 2 | 2 | 2 |
| Air pressure(Mpa) | 1.2 | 1.2 | 1.2 | 1.2 |
| Air tank(m3) | 3 | 3 | 3 | 3 |
1. Appliction: For PE or HDPE 1-4layers water tank from 200L-5000L.
also can be used to produce pallet, waste bin, road barrier, septictank,and so on.
2. Mainpower: 380V and 415V electric power and 2 workers are enough for the whole production line, even both are female, and two weeks training are free of charge.
3. Output: 4-9 pcs for 2000L 3 layer tank per hour, with weight 46kg, also the weight and thickness can be adjusted by 100% Moog wall thickness control system from 1mm to10mm.
4. Training: Our engineer and interpretor will be your factory to train your workes for 2 weekes
5. Certificate: CE, ISO9001:2008.
6. Main Markets: Asia, South Amereica,India and Indonesia, etc.
| Contact Name: | Mr. Jerry Liu Liu | Contact Email: | 28****1@qq.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 188***247 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Weifang XinhengdaMachine Co., Ltd. was established in 2005, a large-size blow molding machineprofessional manufacturer. It is located in the beautiful Weifang City ShandongProvince. We have developed advanced technology of 20-10000L large-size multilayer accumulator type blow moulding machine in the domestic leading level. Our machine can produce chemical barrels, water tanks, pressure tanks, Watertreatment tank,pallet, toys, traffic road barrel and othervariety of blow molding products.Attaching great importance to product development and technical innovation. We have newtechnology breakthroughs, and have new patent registration every year. We have gain innovationfund for small technology based firms. Our products have beenpassed ISO9000 and CE, we abide by the strict quality standard ensure high qualityof products and prompt delivery.Our products areexported to the Middle East, Central Asia, Southeast Asia, South America,Africa and other places. Technology companies exquisite quality and perfectafter-sales service, access to the customers.
