Taizhou Huangyan PET tube injection molding mould,PET preform mould
Print,Pack,Plastic Rubber & Plastics Products
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:PET tube injection molding mould
| Product Category: | Print,Pack,Plastic > Rubber & Plastics Products | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Ningbo |
Preform Mould Description:
| Name | Taizhou Huangyan PET tube injection molding mould |
| Brand | YZMOULD |
| Mould Shaping | Injection molding mould |
| Mould structure | Bottle preform mould cavity, thread, core, slider, heating blocks and die set a six-part composition, general bottle preform mould can be divided into two categories: ordinary long runner preform mould and ordinary short water bottle preform mould, needle valve type bottle preform mould, double self-locking bottle preform mould, etc |
| De-mould Type | Automatic |
| Mould material | S136/2316/P20/3CR13/40Cr,45# etc |
| Mould Cavity | Single or multi |
| Runner | Hot runner |
| HRC heat treatment | HRC50-60,mirror polishing |
| Design software | UG, PROE, CAD, CAXA, ect. |
| Plastic material | PET,PC,PP,PMMA,PS ect. |
| Mould life | 1,000,000-5,000,000 shots |
| Delivery time | 20-45 days |
| Payment Terms | T/T or L/C |
| Packaging | Wooden Case |
| Transportation | By Sea or by air |
| Export Country | worldwide |
| Specification | Depends on customer's requirements. |
| OEM order | welcome |
1.The preform using computer design, all standardized CNC manufacturing.
2.Using the world's most advanced two-axis double taper positioning technology, each chamber independently from the lock, ensure low eccentricity.
3.The production cycle is short, long life, I plant a small fine rich experience in mold, preform eccentricity error within 5 wire.
4.According to the international standardization of mouth thread manufacturing, material selection aluminum nitride 38 chrome-molybdenum steel, high hardness, long life.
5.Runner advanced design, heating temperature, can improve quality of plastic products.
6.Avoid cutting the gate, and reduce labor costs.
7.Advanced technology, high-precision machining, the parts are interchangeable, easier to use.
8.Room temperature water cooling to achieve high efficiency, automated production.
Preform Mould Maintenance:
1. Maintenance of oil in the hydraulic oil, hot oil type from cooling nozzle into, can act as a lubricant, antirust function.
2. The guide pillar maintenance guide post on also want to apply a small amount of hydraulic oil, cycle for once a month.
3. If not for a long time production need coated with rust inhibitor.
4. The bottle preform thread screw requires constant reinforcement.

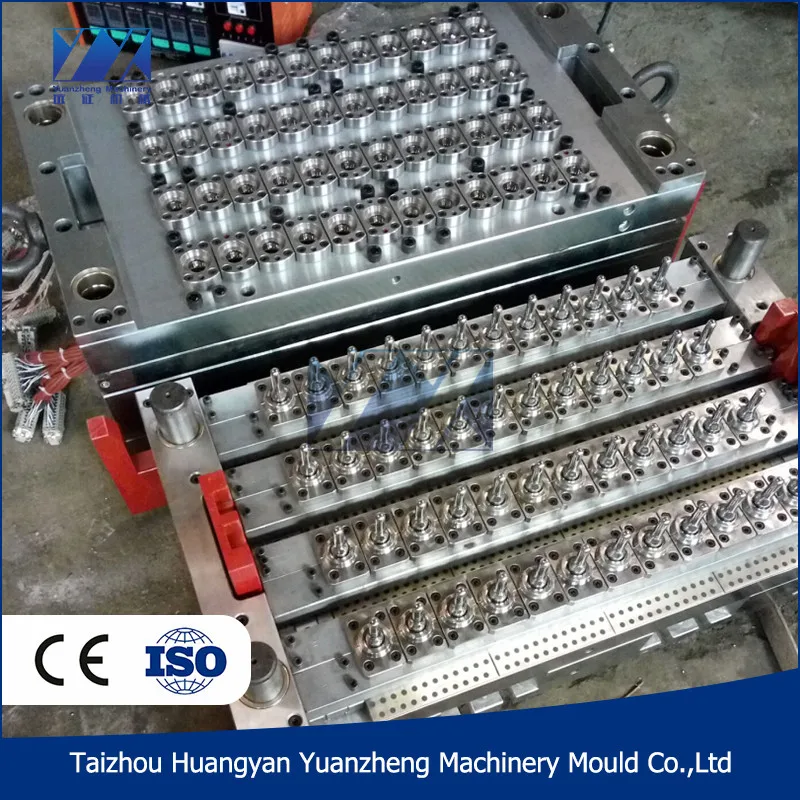

Preform Mould Pictures:
| Contact Name: | Mr. George Ge | Contact Email: | 28****1@qq.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 188***247 |
| Contact Tel: | Contact Fax: | ||
| Address: | Website: |
Taizhou Huangyan Yuanzheng Machinery Mould Co.,Ltd is a high-tech enterprise which specializes in production of two stage stretch blow molding machine and plastic injection molds.The company is located in mold hometown Huangyan China.The company is mainly engaged in plastic blow molding machine,preform mould,cap mould,commodity mould,auxiliary machine,plastic products and so on.With solid work,excellent performance,products are exported to Middle East,Southeast Asia,Russia,Africa,America and other many countries and regions,well received by the masses of users.Company adhering to the advanced design idea,and the spirit of pragmatic innovation,and constantly improve production technology,strengthen the detection means,is committed to the broad masses of users to provide stable and high efficiency,energy conservation and environmental protection equipment.And provide efficient after-sales service and product solutions for users.
