Whole House Water Ultrafiltration Membrane Purification System 1000-3000L/H

Smart Home & Security Home Appliances

FOB Price:US$ 26.00 / Piece(s)

MOQ:20 Piece(s)

Payment Method : L/C T/T Wesstern Union Others

Keywords:Water Ultrafiltration Membrane Purification

Add to Favorites

Product Category: Smart Home & Security > Home Appliances Trademark:
Product Package: Specifications:
Place of Origin: Port: shenzhen
Product Description

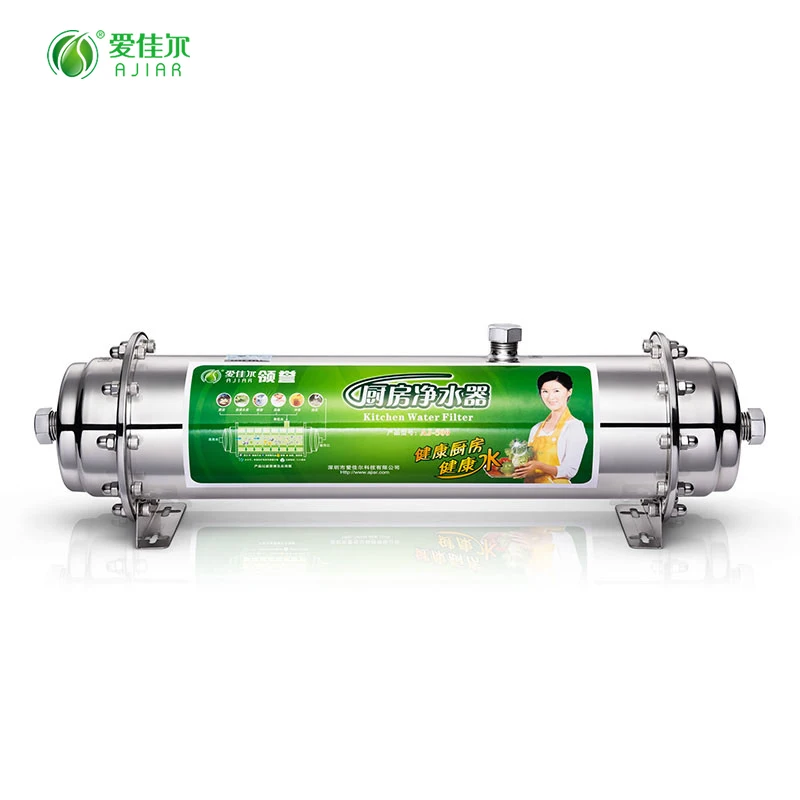

Whole House Water Ultrafiltration Membrane Purification System 1000-3000L/H


This product is suitable for the whole house water purification, make sure we have enough Purifier water for the Kitchen, bathroom, and direct drink for the whole family needs.

This product has 3 features:

     1. 304 Stainless Steel for the shell material,   the Service life will be increased to more than 3 years.

2. UF Membrane Filters (Ultrafiltration Filter).

3. All range of water output volume from 1000L/H to 3000L/H, satisfy different water output needs.

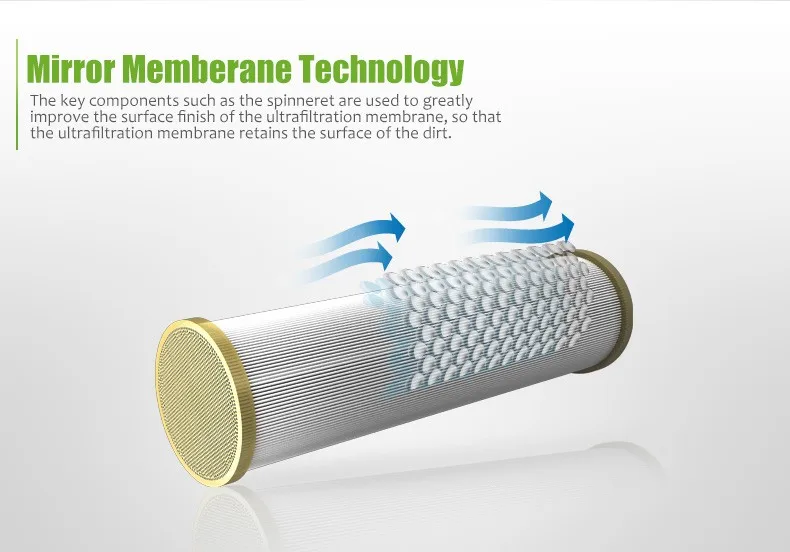

What's UF membrane ?


Ultrafiltration Membrane

The filter cartridge uses thousands of hollow fibre membrane strands. Each membrane strand contains billions of microscopic pores. Water pressure pushes water through these pores towards the hollow center of the membrane, while blocking out contaminants larger than 0.01 microns such as bacteria, parasites and viruses.

Filtered water then flows through each fibre and is distributed to every household fixture. Unwanted particles and micro-organisms are flushed out during the automatic cleaning cycle.


Product Parameter
Product Size:
1000L/H: 480*130*135mm
2000L/H: 625*150*150mm
2500L/H: 725*150*150mm
3000L/H : 885*150*150mm
Body material:
304 stainless steel
Filter housing material:
food-grade ABS
Working pressure:
0.1-0.4MPa
Applicable water temperature:
5°C-45°C
Applicable water source:
municipal tap water
Applicable target:
whole-house water purification
Filtration Technology:
Ultrafiltration membrane
Water turbidity:
≤0.1NTU
Filter replacement:
1-3years
Filtration accuracy:
0.01μm
0.01μm

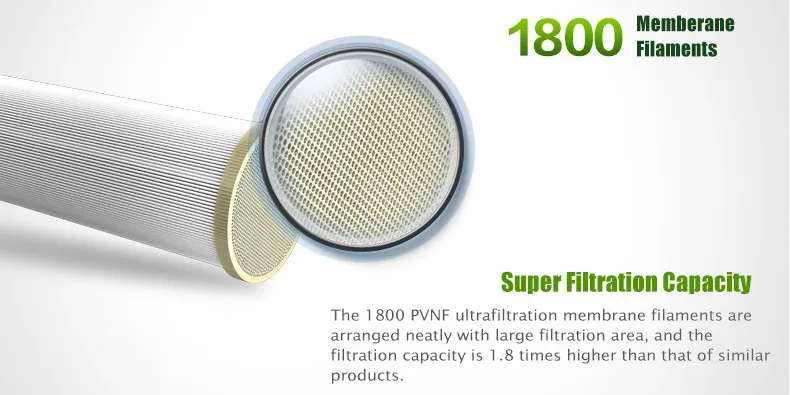

1800 pieces

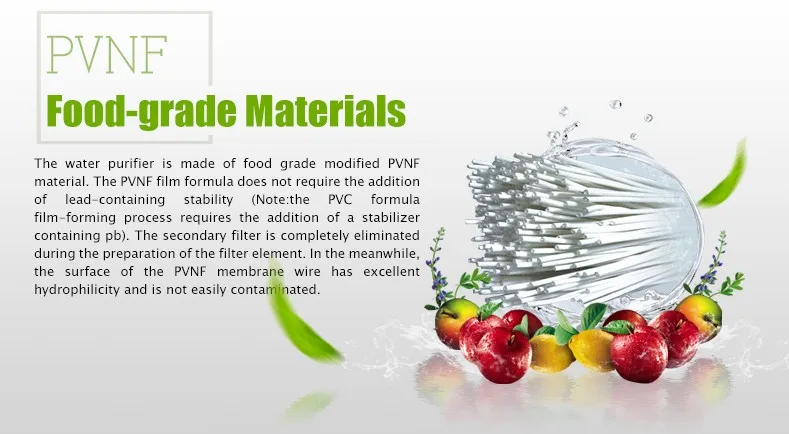

Membrane filament material:
PVNF hydrophilic food grade polyacrylonitrile

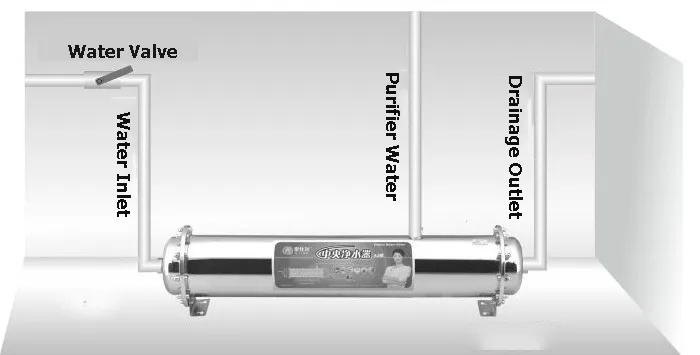

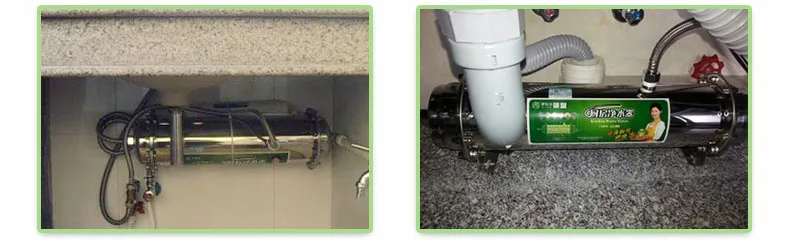

Installation location:
main water pipe / under sink
Microbial removal rate:
≥99.999%
Pathogen removal rate:
≥99.999%
Suspended matter and particle removal rate:
100%
Detailed Images

Ultrafiltered Water

High-precision ultrafiltration membrane screening water purification technology
The ultrafiltration membrane separation technology uses a high-precision purely physical filtration principle with a filtration accuracy of 0.01 μm. No chemical substance is added, and the micropores densely coated on the surface of the ultrafiltration membrane are used for screening, thereby trapping harmful substances and purifying water.

0.01 Micron Inlet Hole

Ajiar water purifier adopts nano-scale ultrafiltration membrane with the filtration precision of 0.01 micron, which can effectively remove impurities such as sediment, rust, bacteria, colloid, large particles and suspended solids in water, and retain minerals and miroelements beneficial to human body.
