RSD6000 Patient Monitor

Health & Beauty Medical Devices

FOB Price:US$ 369.00 / Set(s)

MOQ:1 Set(s)

Payment Method : L/C T/T D/P Wesstern Union

Keywords:RSD6000, Patient, Monitor

Inquire


Add to Favorites

Product Category: Health & Beauty > Medical Devices Trademark:
Product Package: Specifications:
Place of Origin: Port: Shenzhen
Overview
Quick Details

  • Brand Name:

  • RONSEDA

  • Model Number:

  • RSD6000

  • Place of Origin:

  • China

  • Product name:

  • RSD6000 Patient Monitor

  • Monitor size:

  • 8inch

  • Parameters:

  • SPO2,ECG,NIBP,TEMP,Resp

  • Screen Display:

  • TFT LED display

  • Application:

  • Adult,pediatric,neonate

  • working mode:

  • diagnosis,monitor and surgery

  • Optional parts:

  • HDMI ;EtCO2;Touch screen

  • Warranty:

  • 12 months

  • Shipping:

  • DHL/FedEX/TNT

  • Payment:

  • T/T;Western Union; Paypal

  • Type:

  • First-Aid Devices
Supply Ability

  • Supply Ability:

  • 500 Set/Sets per Month

Packaging & Delivery

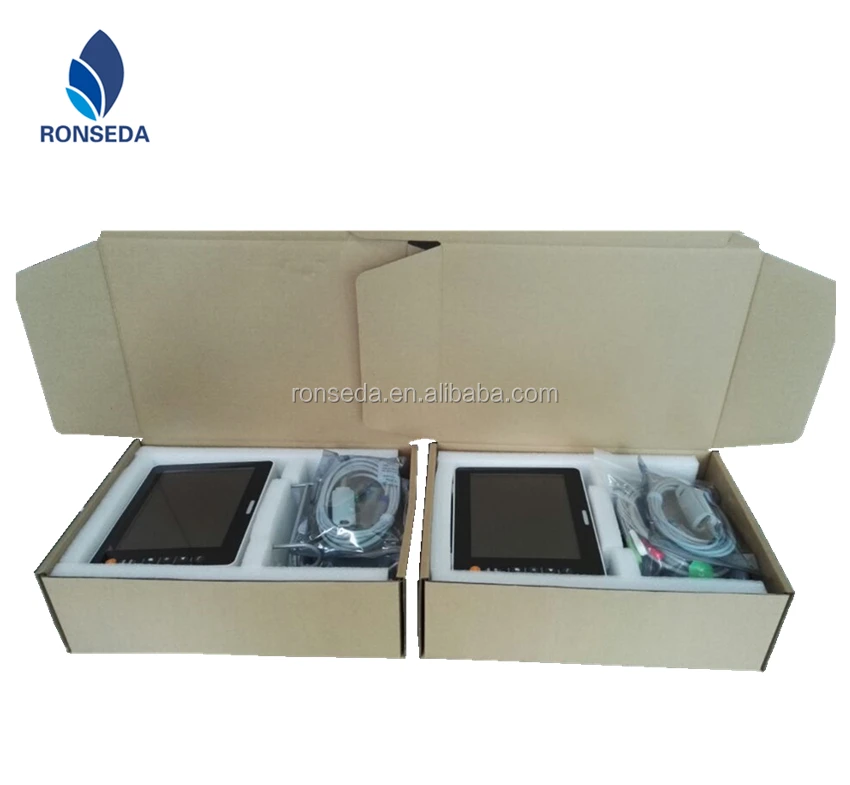

  • Packaging Details

  • Box

  • Port

  • Shenzhen

  • Lead Time :

  • 3 working days


Product Details

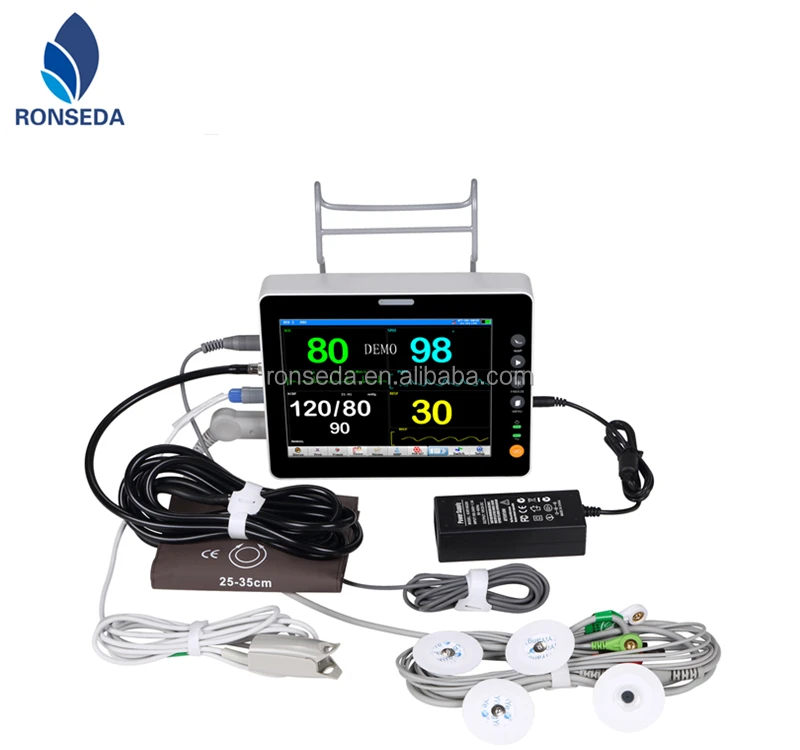

RSD6000
First-Aid Medical Equipment 8 inch multi parameter ICU patient monitor


Details:
Features:
1.Standard configuration:SPO2,ECG,NIBP,TEMP,Resp
2.8inch high brightness, high resolution  color TFT LED display
3.Waterproof , fanless design, low energy consumption
4.Built-in rechargeable Li-battery working up-to 5 hours  for field monitoring, ambulance and  short term transportation
5.Clear bright and Large character display , NIBP measurement review, one-click operation, unique Vector display
6.7 channel ECG waveform display;ST-segment analysis
7.Application:Adult,pediatric,neonate;
working mode: diagnosis,monitor and surgery
8.13 kinds of arrhythmia analysis and 15 kinds of drug dose calculation
9.High-frequency electric surgical knives(300W),defibrillation and ESU protection
10.New SpO2 technology to ensure the accuracy and low perfusion upto 0.2% measurement
11.Intelligent audio and visual alarm function
12.Optional parts:HDMI ;EtCO2;touch screen

Specifications:

ECG:
ECG Cable: Standard 3/ 5 leads
3 Leads:RA,LA,LL,Leads section:I,II,III
5 Leads:RA,LA,LL,RL,V, Leads section:I,II,III/aVR,aVL,aVF/V
Gain selection:′0.25,′0.5,′1,′2
Heart Rate Range:
Adult:15 ~ 300bpm
Children/Infant/Neonate:15 ~ 350 bpm
Accuracy:±1% or ±1bpm
Resolution:1 bpm Sensitivity >200 uV(Peak to peak)
Input Resistance >5(MΩ)
Bandwidth:
Diagnosis :0.05~130Hz
Monitor:0.5~40Hz
Surgery :1~20Hz
ST segment deviation analysis:
Range:-0.8 mV~+0.8mV
Accuracy:±2.0mV

NIBP:
Work mode: Manual, Automatic, Continuous
Unit: mmHg, Kpa
Measurement Range:
Adult: SYS: 40~270mmHg
DIA: 10~215mmHg
MEAN:20~240mmHg
Pediatric: SYS:40~200mmHg
DIA: 10~150mmHg
MEAN:20~165mmHg
Neonatal:SYS:40~135mmHg
DIA:10~100mmHg
MEAN:20~110mmHg
Resolution:1mmHg
Measurement Type :SYS,DIA,MEAN
Overpressure protection
Adult: 300mmHg
Pediatric :240mmHg
Infant/Neonate :150mmHg

SpO2
Measurement range:0~100%
Resolution:1%
Accuracy:±2(70~100%)
Pulse rate
Measurment range:20~300bpm
Resolution:1bpm
Accuracy:±3bpm


Respiration:
Measurement Range:
Adult: 2~120BrPM
Child/Infant/Neonate:2~150 BrPM
Resolution:1 BrPM
Accuracy:±2 BrPM
Asphyxiation alarm: 10~40 seconds
Resolution:1BrPM
Accuracy:±2%

TEMP:
Channel Number: 2
Measurement Range: 0~50°C
Resolution : 0.1°C
Accuracy:±0.1°C
Response time: ≤ 3min


Power requirement
Voltage:90~245V AC 50/60Hz
Power Consumption:15W
Battery:14.8V 2200mAH Li- Battery
Battery life: 5 hours
DC: 12~20V/2A

Working Environment:
Operating Temperature:0 ~ 40 (°C)
Transport and Storage Temperature:-20~60 (°C)
Working Humidity ≤ 85 %
Transport and Storage Humidity: ≤ 93 %
