CE/ISO approved portable automatic Infusion Pump in hospital ICU CCU Medical equipment
Health & Beauty Medical Devices
FOB Price:US$ 300.00 / Set(s)
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Wesstern Union
Keywords:CE/ISO approved， portable， automatic， Infusion Pump ，in hospital ICU CCU ，Medical equipment
| Product Category: | Health & Beauty > Medical Devices | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai, Shenzhen, Ningbo |
Product Description

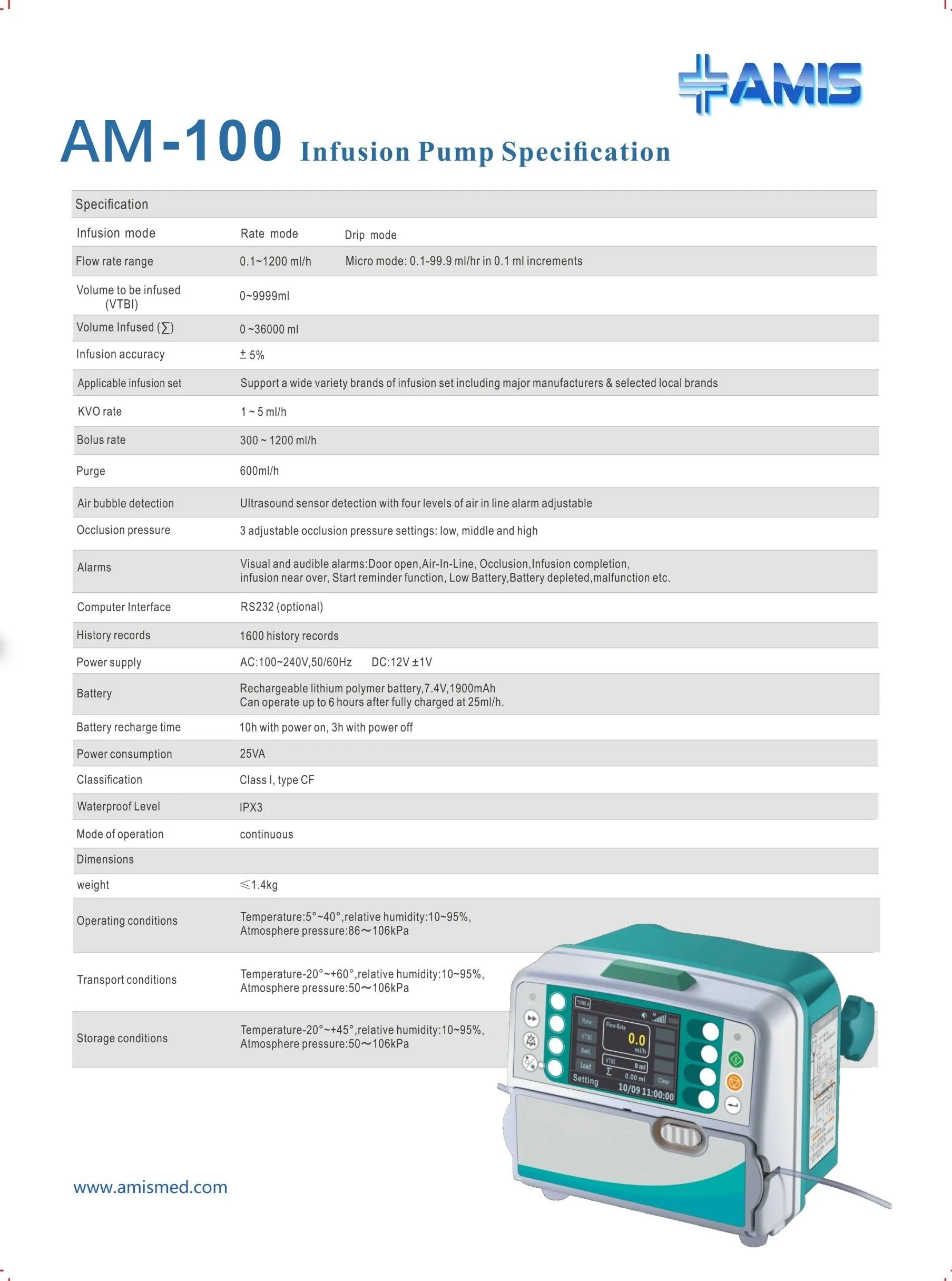

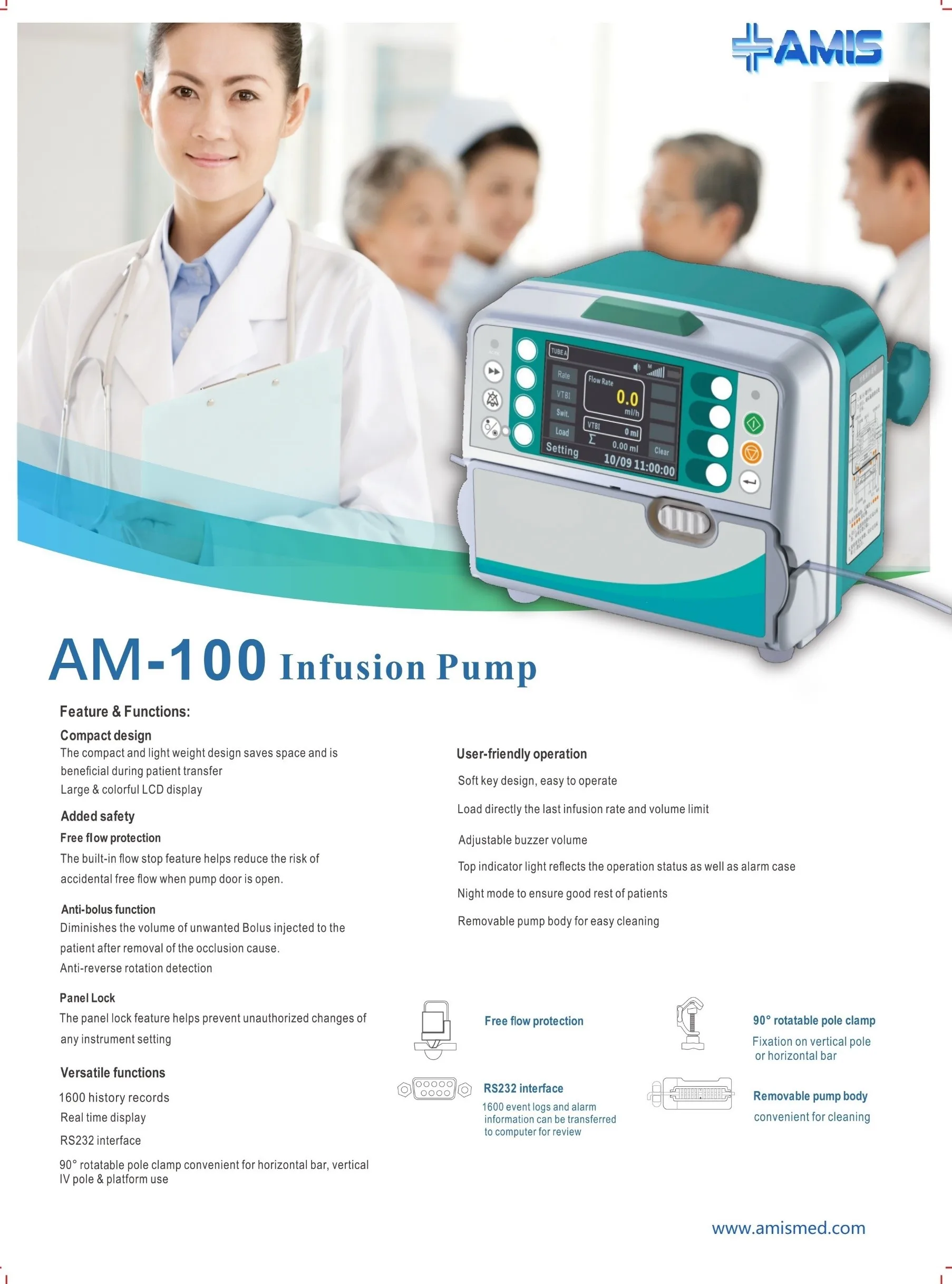

Infusion Pump AM-100
| Infusion mode | rate mode,drip mode |
| Applicable infusion set | Support a wide variety brands of infusion set including major manufacturers&selected local brands |
| Infusion accuracy | ±5% |
| Flow rate range | 0.1-1200ml/h |
| Volume to be infused(VTBI) | 0-9999ml |
| Volume infused | 0-36000ml |
| KVO rate | 1-5ml/h |
| Bolus rate | 300-1200ml/h |
| Purge | 600ml/h |
| History records | 2000 histrory records |
| Air bubble detection | Ultrasound sensor detection with four levels of air in line alarm adjustable |
| Alarms | Visual and audible alarms:Door open,Air-In-Line, Occlusion,Infusion completion,infusion near over, Strat reminder function,Low Battery,Battery depleted,malfunction etc. |
| Occlusion puressure | 40.0-160.0kpa, 3 adjustable occlusion pressure settings; low,middle and high |
| Functions | Free flow protection; Stop error power off; four levels of air in line alarm adjustable; 3 adjustable occlusion pressure setting; Anti-reverse rotation decetion; 2000 history records, screen display and output to the computer; rate mode,drip mode; Bolus; Adjustable buzzer volume; KVO function; Alarms of infusion near over or infusion completion; Colorful LCD Screen Display |
| Circuit theory | Same |
| PCB layout | Same |
| Structure | Same |
| Front label | different |
| 90 degree rotatable pole clamp | Yes |
| Removable pump body | Yes |
| Drug library (optional) | no |
| Intermittent infusion mode | no |
| History records | Yes |
| Infusion near over alarm | Yes |
| Panel lack | Yes |
| Real time display | Yes |
| Anti-bolus | Yes |
| Night mode | Yes |
| Adjustable buzzer volume | Yes |
| Power supply AC | AC100-240V,50/60HZ |
| Power supply DC | DC12V±1v |
| Power consumption | 25VA |
| Battery | Rechargeable lithium polymer battery,7.4V,1900mAh |
| Battery recharge time | 10 hours with power on,3 hours with power off |
| Battery operating time | Operating for more than 6 hours after full charged at 25ml/h |
| Clasification | ClassI,type CF |
| Waterproof level | IP×3 |
| machine size | 145×100×120mm |
| machine weight | ≤1.4kgs |
| Dimension of single unit carton | 200×190×200mm |
| Dimension of four units carton | 420×195×210mm |
| Dimension of eight units carton | 420×195×420mm |
| Operating conditions | Temperature:5℃-40℃, relative humidity:10-95%, Atmosphere pressure:86-106kPa. |
| Transport conditions | Temperature:-20℃-60℃, relative humidity:10-95%, Atmosphere pressure;50-106kPa |
| Storage conditions | Temperature:5-20℃-45℃, relative humidity:10-95%, Atmosphere pressure;50-106kPa |
| Contact Name: | Mr. Lily Song | Contact Email: | 28****4@qq.com |
| Contact Job Title: | Sales Manager | Contact Mob: | 188***071 |
| Contact Tel: | Contact Fax: | ||
| Address: | 19F PEACE MANSION, 22BEIJING EAST ROAD | Website: | http://www.amismedical.com |
