Inner flat dripper agricultural pipe making machine

Inner flat dripper agricultural pipe making machine

Print,Pack,Plastic Rubber & Plastics Products

FOB Price:US$ 200,000.00 / Set(s)

MOQ:2 Set(s)

Payment Method : L/C T/T D/P

Keywords:Inner flat dripper agricultural pipe making machine

Inquire

Add to Favorites

Product Category:	Print,Pack,Plastic > Rubber & Plastics Products	Trademark:
Product Package:		Specifications:
Place of Origin:		Port:	Tianjin

Overview

Quick Details

Condition:
New

Application:
Pipe

Plastic Processed:
PE

Output (kg/h):
100 - 150

Screw Design:
Single-screw

Screw diameter (mm):
65 mm

Screw L/D Ratio:
38/1

Place of Origin:
Hebei, China

Brand Name:
ZFSJ

Voltage:
380V

Dimension(L*W*H):
36m*3.5m*2.7m

Power (kW):
120

Weight:
6T

Certification:
CE&ISO9001

Warranty:
1 year

After-sales Service Provided:
Online support, Engineers available to service machinery overseas

Key Selling Points:
High Productivity

Applicable Industries:
Farms

production speed:
160m/min

Certificate:
CE ISO

Utility new patent1:
Durable filter

Utility new patent2:
Automatic cutter on winder

Utility new patent3:
Hole drilling device

Utility new patent4:
mosaic drip irrigation tape dripper

Apperance Design patent:
vacuum sizing water tank

package:
wooden box

delivery time:
40 working days

Automatic Grade:
high

Supply Ability

Supply Ability:
1 Set/Sets per Month

Packaging & Delivery

Packaging Details
wooden box and also we can do as customer's demand.

Port
XINGANG(Tianjin) Port

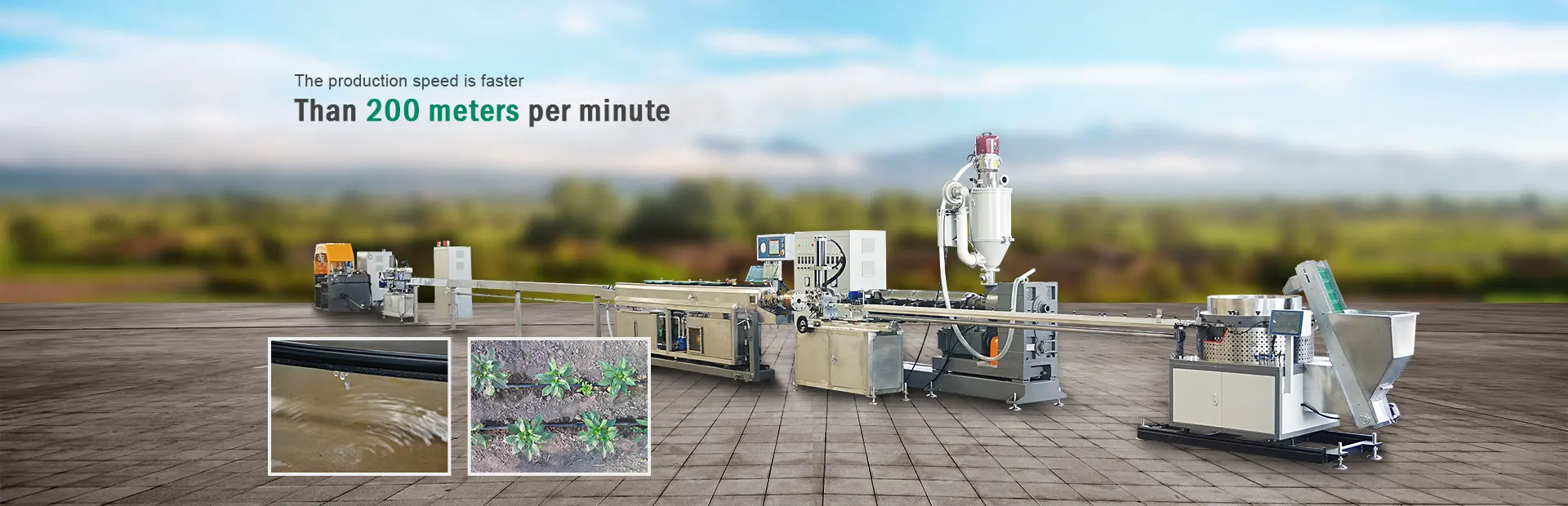

Inner Flat Dripper Drip Irrigation Tape Making Machine

Equipment Use

The flat drip irrigation machine used in the production of inner panel drip irrigation tape products. Drip irrigation products are widely used in the cultivation of field crops (such as cotton), fruits and vegetables, trees and flowers and other industries.

.

The Flat Drip Irrigation Machine Features

1. It adopts centralized control of computer system, stable production process and convenient operation. It can efficiently and continuously produce water-saving equipment with inner drip irrigation belt.
2. Feeding, screening, conveying, storage, quantitative supply of dripper, embedded and sustainable, synchronous, the delivery rate can be adjusted according to the production speed of the drip tape, ensuring that the plastic dripper is accurately sent to the dripper and the plastic pipe. Position and bond firmly.
3. Extruder screw, pipe head and pipe top sleeve have unique structural principle, using special materials, advanced processing technology, uniform plasticizing of extruded materials, smooth surface of pipe and stable sizing size.
4. The vacuum water tank and cooling water tank are made of stainless steel. The vacuum in the vacuum water tank can be adjusted flexibly and accurately according to the production demand and stable.
5. Equipped with powerful drying equipment to effectively solve the problem of water in the drip tape during the production process.
6. Using two tractors controlled by frequency conversion technology, the traction speed can be adjusted synchronously according to the needs at any time. The traction speed is stable and the noise is small.
7. The drip hole of the drip tape is completed by the mechanical drilling method controlled by PCL. At the same time, it is equipped with a residue recovery system, which has fast drilling speed and no residual slag.
8. The flat drip irrigation machine with double-station winding, there is no need to stop the roll change. The wiring pitch, winding tension, and winding length can be adjusted as required.

Delivery

Contact Name:	Mr. Lynda Song	Contact Email:	28****1@qq.com
Contact Job Title:	Export Manager	Contact Mob:	188***247
Contact Tel:		Contact Fax:
Address:		Website:

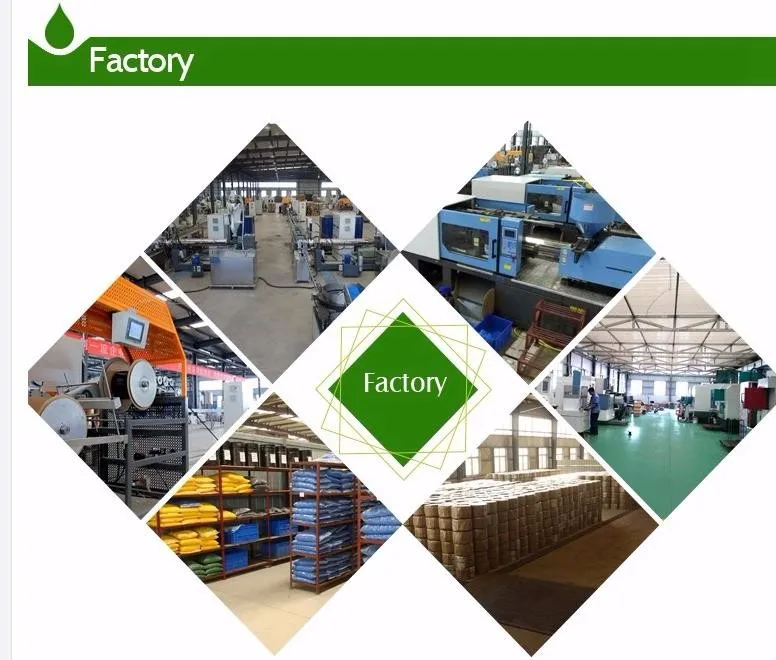

China Tangshan Zhifu Plastic Machinery CO. , LTD was established in 1986, lies in thesoutheast of Beijing (capital of China) about 110 kilometers and is adjacent to NationalHighway 102 with convenient transportation. We have 120 employees including 2 seniorengineers, 12 highly experienced engineers, 24 mechanicians and a large number of professionals who have graduated from university and college. It is a knowledge-based, scientific and technological enterprise for special-purpose plastic machinery intergrating design, develop, manufacture and service with advanced equipment, perfect monitoring method and strong technological foundation. The company was awarded the Advanced Technology Enterprise by China Ministry Of Science And Technology, it is also the member of National Commercial and Industrial Association and awarded the honor for several times. The company has import-export authority independently and passes the Certificate of ISO9001 Quality System and European Union CE Certificate. Our products have been distributed throughout the country and also exported to Europe, Amercias, Middle East, and Southeast Asia etc. over thirty countries and regions. The superior quality, favorable price and perfect after-sales service make the products be well received at home and abroad. The management principle of our company is to keep improving and creat perfection, and our services aim is Customers First and Credit First. Meeting customers' demand is our unique aim and satisfying customers' expectation is our everlasting pursuit. We base on the abundant technical force and always insist on the manufacture idea of People Foremost, we are trying our best to supply the top quality service to our friends from all over the world.Our products are sold throughout the country and exported to more than 10 countries and regions. With superior quality, favorable prices and attentive after-sales service, our company is popular at home and abroad. For details, please do not hesitate to contact us.
