Good stability peri aluminum construction formwork
MOQ:100 Square Meter(s)
Payment Method : L/C T/T D/P
Keywords: Forming concrete slab beam wall
| Product Category: | Construction & Decoration > | Trademark: | |
| Product Package: | According to customer needs | Specifications: | |
| Place of Origin: | Hebei, China | Port: | tianjin port |
Good stability peri aluminum construction formwork
Aluminum Formwork | |
Material | 6061-T6 Aluminium alloy |

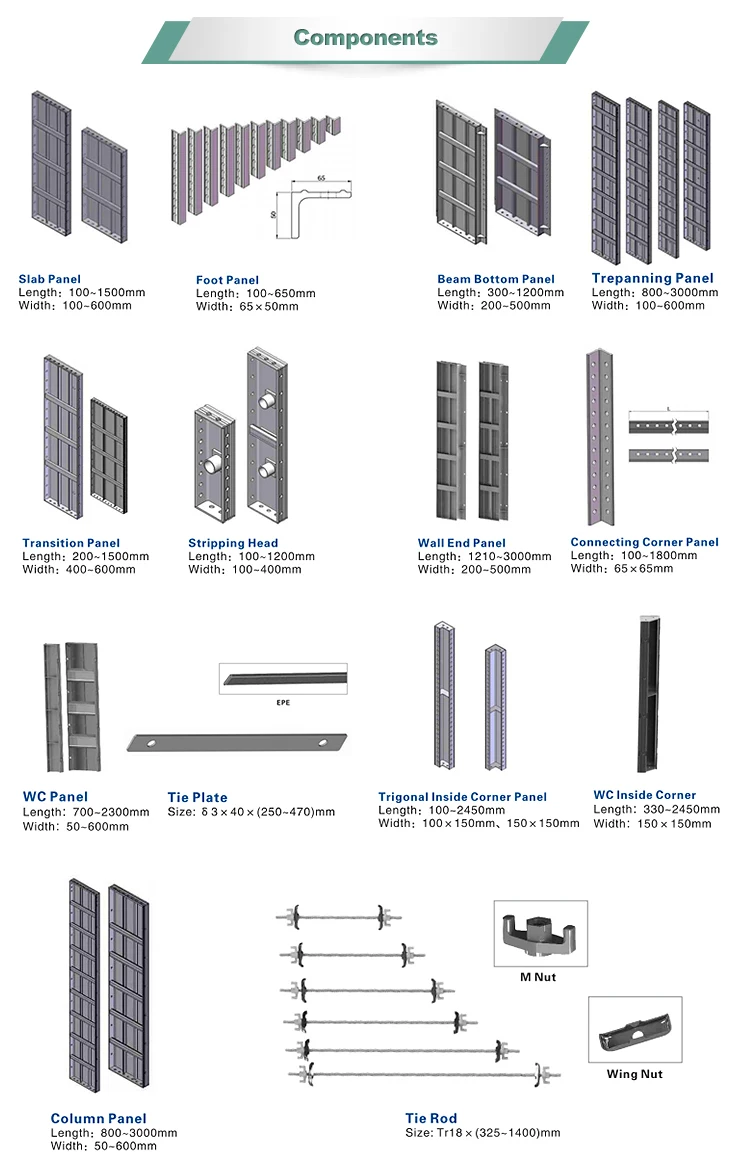

Main Components | Beam,Column,Wall,Prop,Others |
Safe Working Load | 60KN/m2 |
Size | Non-standard: custom-made as per buy’s requirements |
Capacity | 20000 sqm per month |
Applications | Exhibition setup |
Interior refurbishing | |
All the towers can be connected together for multi-purpose | |
Prop Of Aluminum Formwork | |||||
Material | Q235 Q275 Q345 | ||||
Usage | To support aluminum formwork firmly and safely (Concrete Construction Works) | ||||
Type | Heavy / light duty | ||||
Surface Treatment | Painted varnish / pre-galvanized / Hot dip galvanized | ||||
Fixed Pin | Straight or Hook | ||||
Common Height(m) | 1.6 - 2.9 | 1.7 - 3.0 | 1.8 - 3.2 | 2.0 - 3.6 | 2.2 - 4.0 |
2.4 - 3.9 | 2.5 - 4.5 | 2.6 - 5.0 | 3.0 - 5.0 | 3.2 - 6.0 | |
Diameter(mm) | 40/48mm 48/56mm 48/60mm | ||||
Thickness(mm) | 1.6 | 1.8 | 2.0 | 2.5 | 3.0 |
FAQ
FREQUENTLY ASK QUESTIONS:(If your questions are unlisted on below, pls Click here to let usknow.)
-Q-: Do I use this set of formwork to another project?
A: There are nearly 70% standard panels can be common use.
-Q-:What's your packing methods?
A: protection foam+heat contracted plastic film. / wooden packing / Metal pallet or depend on clients special requirement.
-Q-:What's your payment terms?
A: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/ C 100%, or negotiate according to the order status
-Q-:Are you manufacturer or trader?
A: We are the munafacturer of aluminum formwork system. Our group company has 4 factories, coveraged every scaffolding systems.
-Q-:If I don't have people know well about your forwmork system?
A: We will send 2 or more technicists to your construction site for guidance.
-Q-:Do I use this set of formwork to another project?
A: There are nearly 70% standard panels can be common use.
