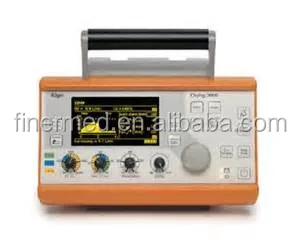

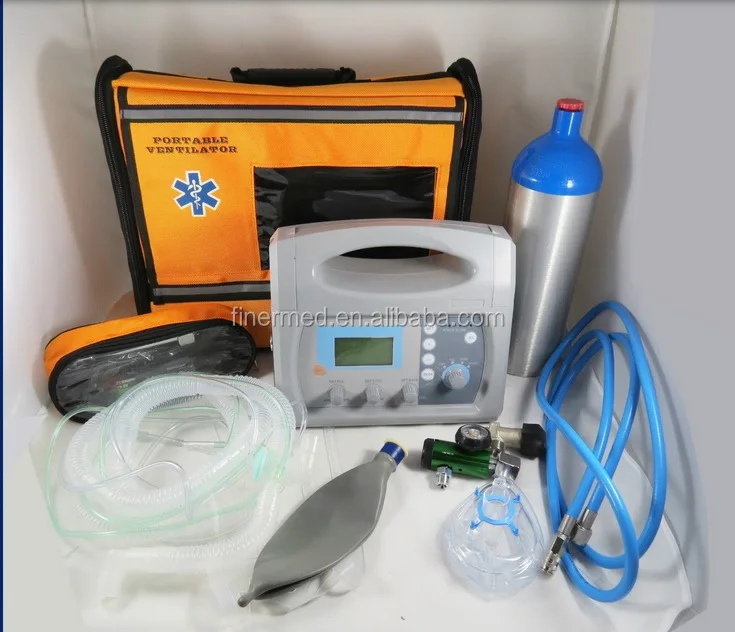

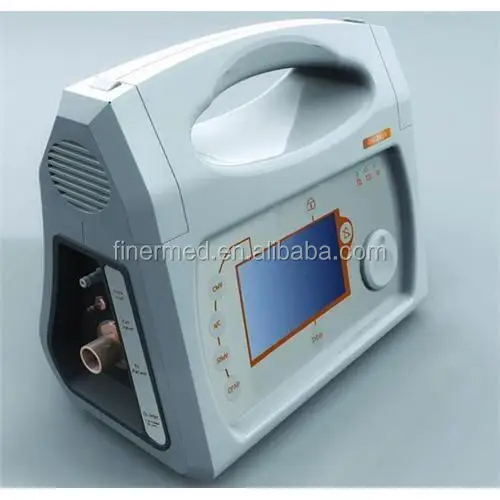

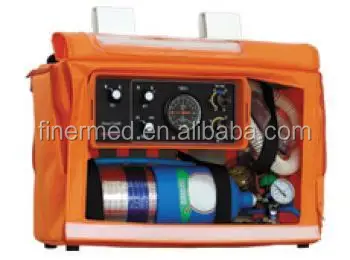

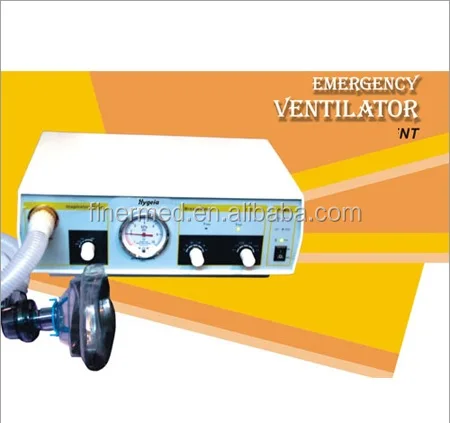

Portable transport Emergency Ambulance ventilator
Health & Beauty Health Care & Medical Sanitary
MOQ:100 Piece(s)
Payment Method : L/C T/T D/P
Keywords:Portable transport Emergency Ambulance ventilator
| Product Category: | Health & Beauty > Health Care & Medical Sanitary | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai Port or Other |
Kinds of modes: C, A/C, SIMV, SIGH, CPAP, PEEP | ||
| Parameters | Range | Remark |
| Tidal Volume | 50~2000 ml | Digital Precise Adjustable |
| Respiratory Rate | 1~100 bpm | Digital Precise Adjustable |
| O2% | 45~100% | Digital Precise Adjustable |
| Trigger Level | -20~0 hpa | Digital Precise Adjustable |
| Peak Pressure | 0~60 hPa | Digital Precise Adjustable |
| PEEP | 0~20 hPa | Digital Precise Adjustable |
| SIGH | 1~10 times per 100 breath | Digital Precise Adjustable |
| Display | Range |
Large LCD Screen Data Display | Tidal Volume, O2%, Sigh, Respiratory Rate, Flow, Pressure (Synchronized Trigger, Peak Airway, CPAP, PEEP ) |
Large LCD Screen Curve Display | Airway Pressure Time Waveform Display |
Alarm Data Display | High/Low Airway Pressure Alarm, Lack of Gas/Power Alarm, Parameter Error |
Other Display | Lock, Charge Indicator, Inspiratory/Expiratory Situation, DC/AC Power Supply |
Portable ventilator complies with the latest National standards,such as YY0600.3-2007,ISO9001,ISO13485,CHINA FDA,etc | |
Circuit Connect Prompt | Remind the operator to connect the breath circuit correctly to access the using state; |
Sound Alarm Test | Test sound alarm, to guarantee the reliability using |
Gas Pressure Test | Test gas pressure, remind operator to ensure the gas pressure supply |
Internal Battery Capacity Test | Test the capacity of the internal battery |
Circuit Leakage Test | Test Circuit Leakage, to lest circuit drop off or leak and unexpected situation to happen |
J portable ventilator contains perfect alarm function and response the machine and patient condition timely and effectively. | |
High Airway Pressure | Low Airway Pressure |
Low Battery Voltage Alarm | Low Gas Pressure |
Parameter Error | Silence |
High Frequency Alarm | |
(Used for: first aid, ambulance and patients hospital transport pediatric and adult)
Mode: Control,Assist/Control,SIMV,CPAP,Sigh
Monitored (LCD): Wave Of Main Airway Pressure
Controls And Sets:
Tidal Volume,Sensitivity,Breath Rate,Sigh Frequency, Oxygen Concentration,Continuous Flow, paramater alarms, airway pressure
Battery: More Than 16 h
Alarms And Alerts: 4 cases
