Surgical Operation Pendant ICU Room Medical Equipment Hospital Operating Auxiliary Facility
Health & Beauty Medical Devices
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Wesstern Union
Keywords:Surgical， Operation， Pendant ，ICU Room， Medical ，Equipment ，Hospital Operating， Auxiliary Facility
| Product Category: | Health & Beauty > Medical Devices | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | every port in China |
Surgical Operation Pendant ICU Room Medical Equipment Hospital Operating Auxiliary Facility

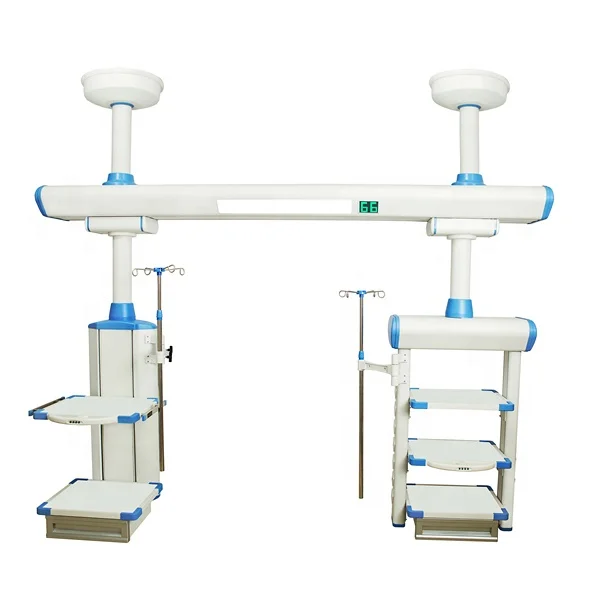

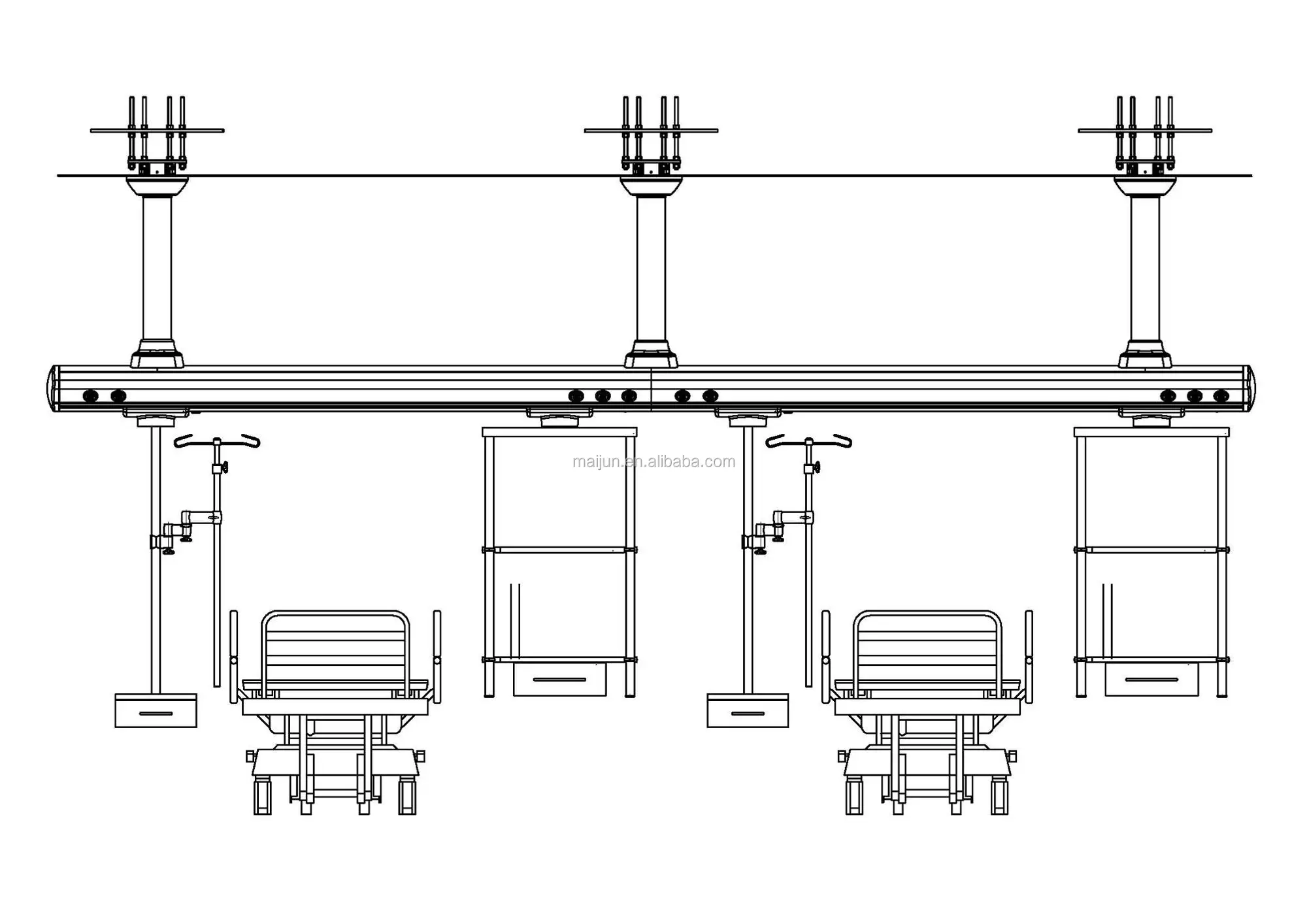

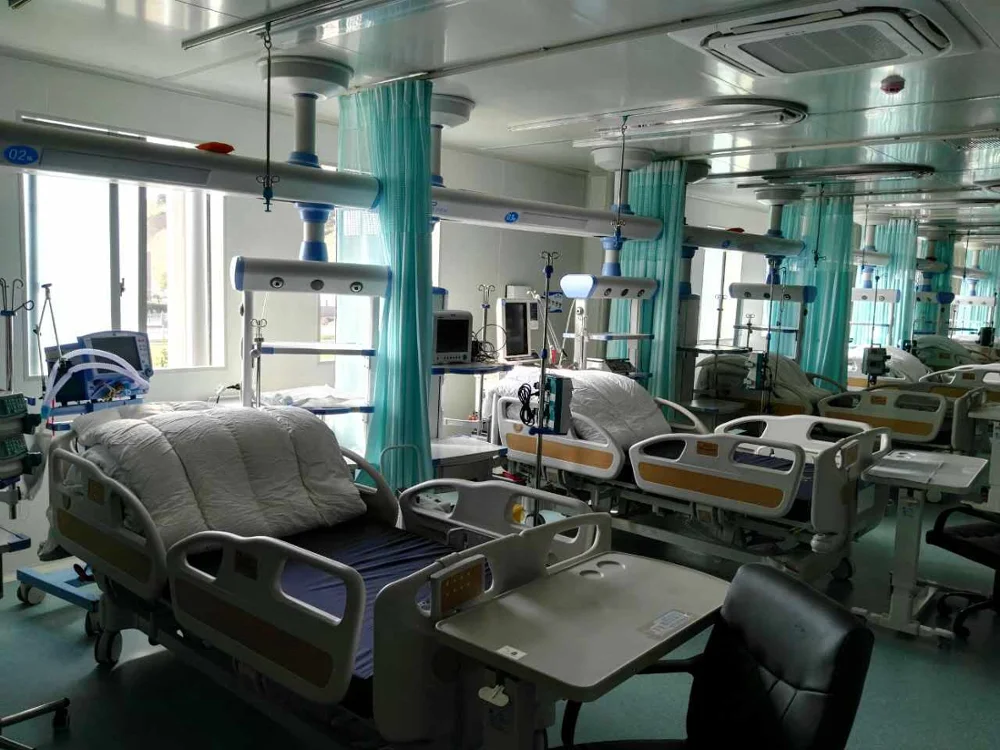

Surgical Operation Pendant ICU Room Medical Equipment Hospital Operating Theater is used in ICU of the hospital, which is a necessary medical rescue auxiliary equipment in modern intensive care unit. It is mainly composed of bridge, dry area and wet area.The dry and wet tower is equipped with: multi-layer instrument platform, infusion pump rack, oxygen, air, suction, strong and weak electricity, network input terminal, etc.The dry and wet areas are controlled by manual push rod, which increases the range of activities. The bridge center is equipped with LED multi-function lamp, and a variety of lighting schemes are convenient for patients to read, rest, and medical staff to check and patrol at night.Can be customized according to your requirements, applied to a variety of nursing areas and workplaces, a dry (wet) area can serve one, two beds at the same time, or even make a multi-bridge scheme.
Item Name | Specifaction |
Product Material | The main body of the equipment adopts high-strength aluminum alloy profile, circular arc design, no sharp corners on the surface, environmentally friendly plastics, electrostatic spraying, matte treatment, anti-corrosion, easy to clean and disinfect, using Angle contact ball bearing, running more smoothly. Net load: equal to or equal to 75Kg. |
arm | Arm length 1000 mm (150 * 190 mm) section (length can be customized according to customer's require), up to 8 mm, the thickness of tower body rotation Angle: a minimum of 340 °. |
weight | Weight of equipment: 130KG,Net deadweight: 75-150kg; |
console | Length 800mm,1000mm, 1200mm (can be customized according to user requirements), rotation 340 degrees, gas-electric separation design. |
Power socket | 10 universal power sockets, working power: 220V 50HZ 10A, One equipotential grounding terminal.Network socket 1. |
Gas terminal | 2 oxygens, 1 air, 1 negative pressure.Gas piping in strict accordance with international standards, color,And different shapes to avoid improper insertion, the number of inserts is greater than or equal to 20,000 times |
Platform | 2 instrument platforms, 550*420mm, easy to clean and disinfect.Round Angle anti-collision design, height adjustable, with 2 standard side rails 10*25. |
Drawer | Drawer 1, engineering plastic molding, automatic reset device. |
Gas tube | Import gas pipeline, provide inspection report according to medical grade. |
Infusion support | Stainless steel infusion rack 1 set, adjust height is not less than 800mm |
Mechanical damping brake | Mechanical damping breaking system, even in the absence of electricity, gas, equipment will not produce drift. |
Accessories can be selected as required: 1. Instrument platform 2. Gas terminal 3. Telephone interface 4. Network interface 5. Paging device 6. Power socket 7. Grounding terminal | |
