15 inch touch screen cash register/pos system/ touch POS all in one PC/pos
MOQ:1 40
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram
Keywords: POS Systems
| Product Category: | Consumer Electronics > | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | 1 |

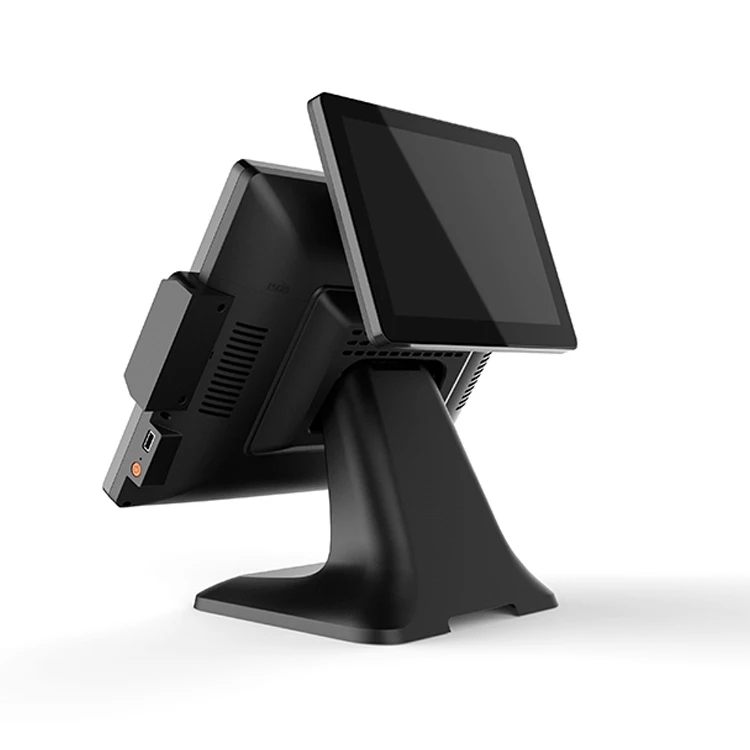

15 inch touch screen cash register/pos system/ touch POS all in one PC/pos
T320 series is a multi-functional, fully integrated all-in-one POS system indended to meet the needs of different market segments. It consists of a pos terminal (equipped with various Energy/Performance balance CPUs (Core dual core), a high-speed 250mm/sec thermal receipt printer and a dual-line vacuum fluorescent customer pole display.
T320 supplies a 15 inch full flat touch screen LCD monitor to provide its user a better viewing experience and optimal spill proof performance. The i-button and magnetic stripe card reader (MSR) are also embedded seamlessly into the housing for higher-level operation.
Energy-saving Atom D2550 (Dual Core 1.86 GHz)
DDR3 RAM module (up to 4G)
Spill-Proof Full-Flat Touch Screen LCD monitor
Smart Fan Cooling System (POP-950-D2550/POP-950-i)
Fanless Cooling System to Ensure Quiet and Steady Operation (POP-950-B)
High-Speed 250 mm/sec thermal receipt printer
Pole type VFD customer display (700 cd/m2)
Embedded MSR and i-Button
Gigabit LAN Port
Versatile I/O support: USB 3.0 (POP-950-i)/ USB 2.0/ RS-232 / RJ-11 / RJ-45...etc.
Space-saving and Easy maintenance
Model | POP-950-D2550 |
Main Board | |
CPU | Intel Atom D2550 Dual Core (1.86 GHz, 1M Cache) |
Chipset | NM10 |
System Memory | 1 x 204 Pin DDR3 1066 MHz SO-DIMM up to 4GB |
Graphic Memory | Intel D2550 integrated, Share System Memory |
OS Support | POS Ready 2009, POS Ready 7, XP Pro, Vista, Linux, Windows 7 |
Display | |
Display | 15" LCD Monitor |
Brightness | 300 nits |
Resolution | 1024 x 768 Pixel |
Touch Screen | 5 Wire Resistive Type |
Tilting Angle | Fixed 50 Degree |
Storage | |
HDD | 1 x 2.5” SATA Bay for HDD or SSD |
Auxiliary Storage | 1 x mSATA slot (Internal) |
I/O Ports | |
Serial | 3 x COM with Power Selected 5/12V (COM 1/2/6), 1 x COM without Power Output (COM 4) Select by Jumper |
Parallel | --- |
USB | 5 x USB 2.0 (External), 3 x USB 2.0 (Internal, reserved for touch screen, Wi-Fi, and MSR) |
Mini PCIe | --- |
PS/2 Mouse | 1 x PS/2 (for PS/2 Keyboard/Mouse) |
PS/2 Key Board | |
LAN | 1 x RJ-45, Giga LAN Support |
VGA | 1 x DB-15, Female |
DC Out | 1 x 12VDC Jack for Customer Display or 2nd Display, 1 x 24VDC 3-pin Connector with Lock for Printer |
Cash Drawer | 1 x RJ-11, 12/24 VDC Selectable |
Audio Jack | 1 x Line Out, 1 x MIC In, 2 x Internal Speaker 2W |
Others | |
Power Input | 12VDC 90W,4-pin Connector with Lock (External Adaptor: 100~240 VAC, 50/60HZ) |
Power Input (Printer) | 24VDC/2.5A (with External Adapter 100~240VAC 50/60Hz) |
Color | White, Black, Orange |
Compliance | FCC / CE / WEEE / RoHS |
Weight | 8.5 Kg |
Dimension (W x D x H:mm) | 374(W) x 280(H) x 346(D) |
Operating Temperature | 0°C~40°C |
Operating Humidity | 20% ~ 80% RH non-condensing |
Storage Temperature | -20°C~ 60°C |
Storage Humidity | 20% ~ 85% RH non-condensing |
