Centrifugal Pump Theory High Pressure Water Pump

Home Appliances & Security Firefighting & Water Safety

FOB Price:US$ 800.00 / Set(s)

MOQ:2 Set(s)

Payment Method : T/T Others

Keywords:Water Pump

Inquire


Add to Favorites

Product Category: Home Appliances & Security > Firefighting & Water Safety Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai
Overview
Quick Details

  • Brand Name:

  • Kaiyuan

  • Model Number:

  • XBD-W

  • Place of Origin:

  • Shanghai, China

  • Application:

  • Commercial Buildings, Family Homes, HVAC OEM, temperature control, FIRE

  • Horsepower:

  • 200

  • Power Source:

  • Electric

  • Pressure:

  • 100, High Pressure

  • Structure:

  • Multistage Pump, Single-stage Pump

  • Cable Length:

  • 10

  • Outlet Size:

  • 92

  • Voltage:

  • 220v

  • Certification:

  • Saa, CB, IECEE

  • Usage:

  • Water

  • Power:

  • Electric

  • Type:

  • horizontal

  • Fuel:

  • E

Packaging & Delivery

  • Selling Units:

  • Single item

  • Single package size:

  • 100X50X50 cm

  • Single gross weight:

  • 68.000 kg

  • Package Type:

  • PLYWOOD CASE

  • Picture Example:

  • Lead Time :

  • Quantity(Pieces)1 - 20>20
    Est. Time(days)10To be negotiated
Product Description

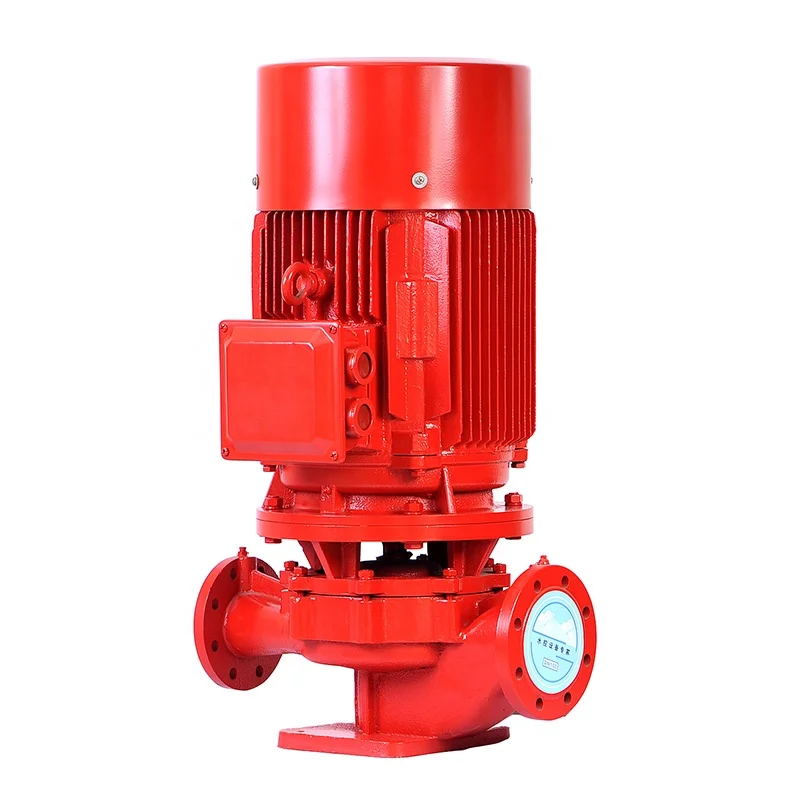

XBD Vertical Single-stage Fire Pump Series is used to deliver non-solid clean water and fluids similar with water in physical
and chemical properties. It is mainly used for pressuring water supply in fire systems. Also it can be used for water drainage in factories and mines.
- It is low cost with attractive outlook. Its vertical structure design guarantees that it is less space demand and the gravity
point is in the center of the pump legs, which improves the performance smoother and contributes to longer service life.
- The inlet and outlet are inline structures, which simplifies the installation of the pipelines.
-The pump head range can be changed by the variation of the pump impeller diameter to meet the special needs, so there is no need
to recalculate the mounted space. Its installation is as easy as the model KYW/L.
Item

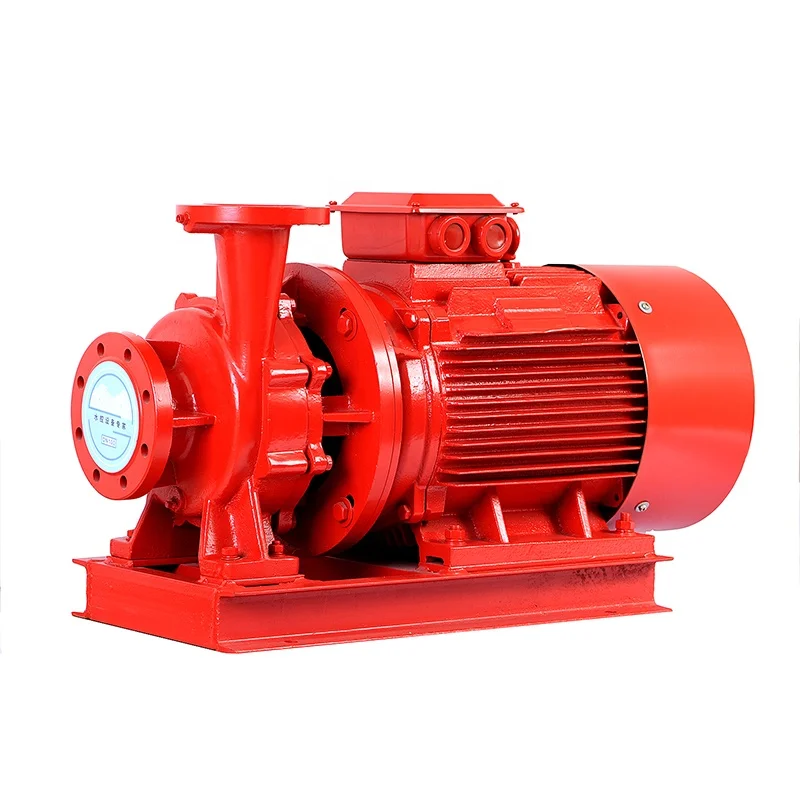

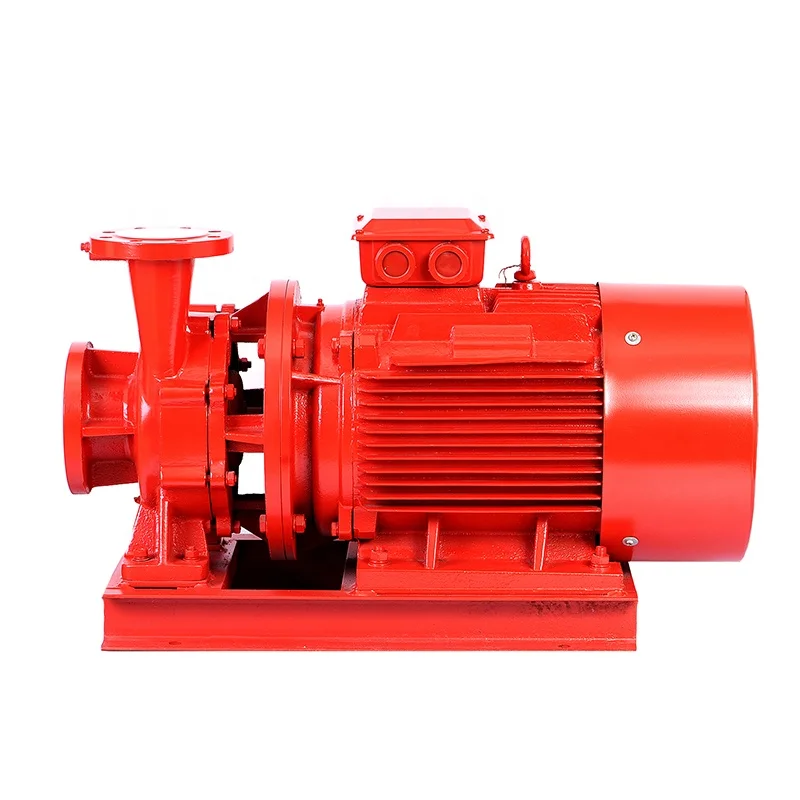

Horizontal/Vertical Fire Pump
Material
Cast Iron/Cast Iron/45#steel
Medium
Clear Water
Flow
4~1200m3/h
Head
8~150m
Speed
1450/2900rpm
Power
2.2~180kW
Working Conditions
· Rotating speed: 1500~3000rpm.
· Flow range: 18-288m3/h
· Medium temperature: ≤80℃
· Head range: 0.3~2.0MPa


    • Applications
XBD is mainly used for fire-fighting systems in industries and civil buildings(fire plug distinguisher, auto spray system, and water spraying system). Besides, it also can be used as water supply for domestic water systems in buildings, cities, mines, boilers etc.
