Mstar 7T00 HD Free to Air H.264 DVB T2 Receiver with Youtube Set Top Box
MOQ:100 Piece(s)
Payment Method : T/T
Keywords:Television receiver
| Product Category: | Consumer Electronics > | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai port |
Mstar 7T00 HD Free to Air H.264 DVB T2 Receiver with Youtube Set Top Box
Products: Mstar 7T00 HD Free to Air H.264 DVB T2 Receiver with Youtube Set Top Box
Features:
1. Fully SD/HD DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264
2. Support H.264
3. Powerful and highly effective 7-days EPG function
4. Multimedia playback and software upgrade via USB 2.0
5. Video resolution: 576i, 576p, 720p and 1080i, 1080p
6. HD, YUV, RCA,
7. Multi-language subtitle output supported
8. Auto and manually scan all available TV and radio channels
9. Support YouTube
| Model | DVB-T2 H264 | ||
| Hardware | |||
| CPU | MSTAR-MSD7T00E (80pin) MIPS 34Kf@600MHz | ||
| Memory | MSD7T00E built-in (32X16Mbit DDR2 Frequency1066) | ||
| Flash | 4MByte | ||
| Demodulator Type | MSD7T00E built-in Demodulator | ||
| TUNER | Rafael R836 | ||
| Front Panel | 4-digit LED display on front panel | ||
| Panel KEY, POWER, CH+ ,CH-,V-,V+,MENU,OK,EPG.USB | |||

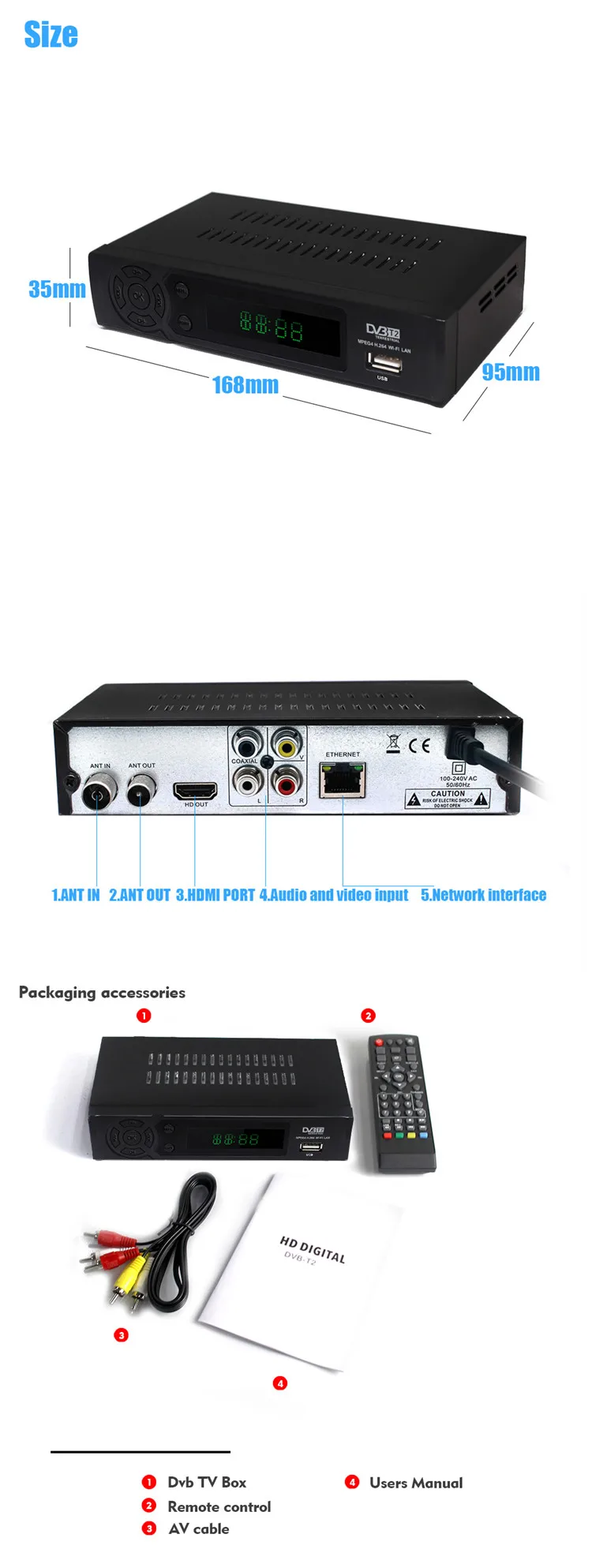

| Rear Panel | Tuner RF input connector | IEC-162-2( Female) | |
| Tuner RF Loop through connector | IEC-162-2( Male) | ||
| HDMI V1.4b | |||
| USB 2.0 Embedded One Host, | |||
| RJ45 x1 | |||
| AV4: CVBS AL AR Coaxial Connector x1 | |||
| Power AC100~240V 50Hz/60Hz | |||
| Demodulation | |||
| Terrisal Receiver Standard | DVB-T2/T(EN_302755 V1.3.1/EN 300744) | ||
| Input RF Frequency | 48~866MHZ | ||
| Bandwidth | 6MHz,7MHz,8MHz | ||
| Constellation | QPSK 16-QAM 64-QAM and 256-QAM | ||
| FEC | 1/2, 3/5,2/3, 3/4,4/5,5/6 | ||
| Guard Interval | 1/128 1/32 1/16 19/256 1/8 19/128 1/4 | ||
| FFT Mode | 2K/ 8K/32K | ||
| Support | Support Single and multiple PLPS | ||
| Input level | -83 - -5dBm | ||
| Sortware Features | |||
| ?Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard | |||
| ?The maximum speed of the traffic flow of at least 50 Mbit / sec | |||
| ?Support 3D interface | |||
| ?Sleep Timer | |||
| ?Support teletext/subtitle/muti-language | |||
| ?Powerful and highly effective 7-day EPG function | |||
| ?AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | |||
| ?USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | |||
| ?Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | |||
| Network | |||
| Network Application | online video , Weather | ||
| USB Wi-Fi Dongle | Ralink7601 | ||
| Decoder | |||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | ||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding | ||
| Powerful Multimedia Features | |||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | ||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) | ||
| Photo Codec | JPEG, BMP, PNG | ||
| License | |||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License. | |||
| Accessories | |||
| Accessories | gift box | ||
| AV cable optional | |||
| HDMI cable optional | |||
| IR remote control | |||
| User Manual | |||
