Wholesale Factory Price ISDBT TV Set Top Box for Peru Brazil Chile Philippines ISDB-T Digital TV Receiver
MOQ:100 Piece(s)
Payment Method : T/T
Keywords:Television receiver
| Product Category: | Consumer Electronics > | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai port |
Wholesale Factory Price ISDBT TV Set Top Box for Peru Brazil Chile Philippines ISDB-T Digital TV Receiver
Products: Wholesale Factory Price ISDBT TV Set Top Box for Peru Brazil Chile Philippines ISDB-T Digital TV Receiver
Features:
1. Used for any ISDB-T countries like Brzail, Peru, Argentina, Chile, Venezuela, Philippines, Ecuador
2. Support all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264
3. Support 3D interface
4. Powerful and highly effective 7-days EPG function
5. Video resolution: 576i, 576p, 720p and 1080i, 1080p
6. Multimedia playback and software upgrade via USB2.0
7. Auto and manually scan all available TV and radio channels
>>> Click Here To Get More Information From Us Now
| CPU | Availink-AVL1508C | ||||||
| Memory | built-in 512Mbit DDR2 | ||||||
| Flash | 4M Bytes | ||||||
| TUNER | Rafael R850 | ||||||

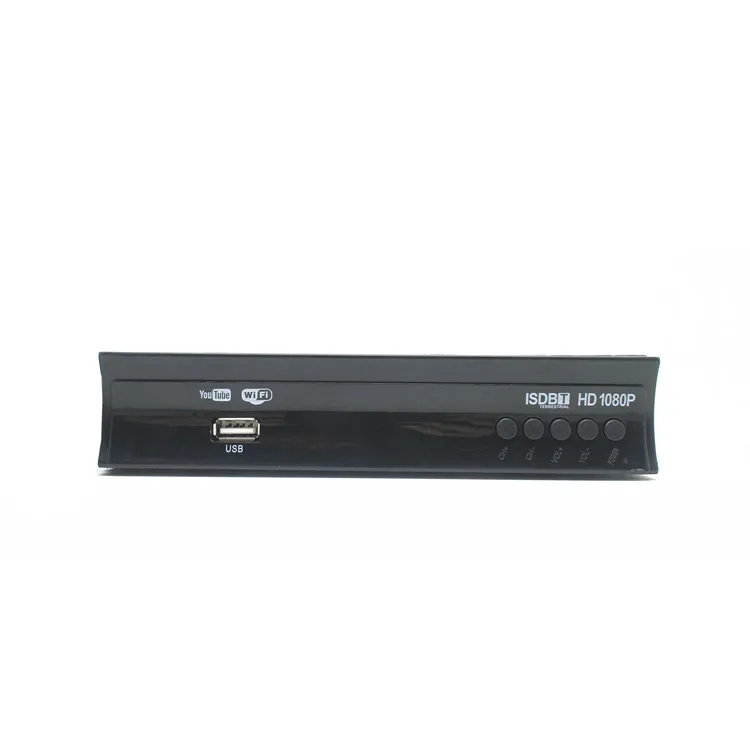

| Front Panel | USB 2.0 Embedded One Host, Panel Key(POWER, CH+. CH-. VOL+. VOL-) | ||||||

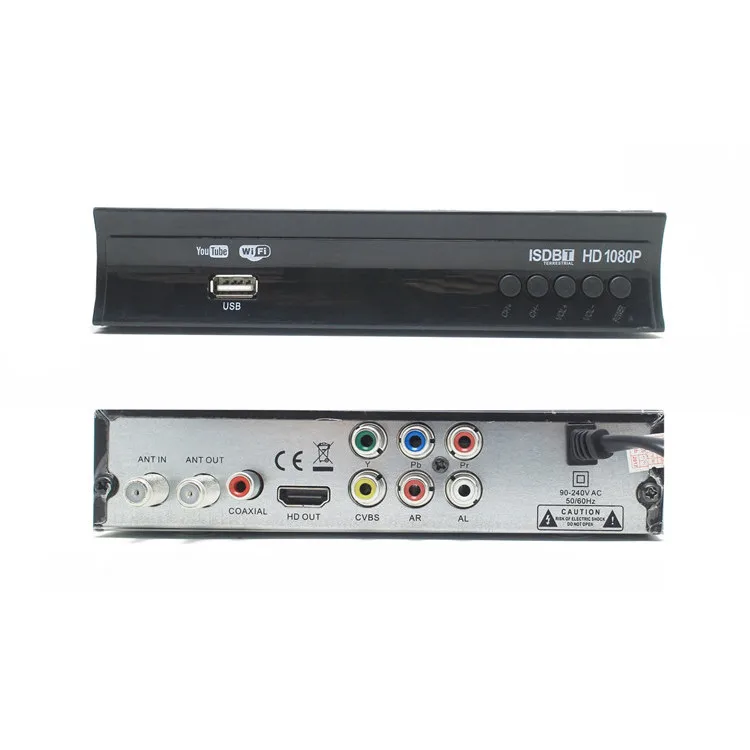

| Real Panel | Tuner RF input connector | IEC-169-2 (Female) | |||||
| Tuner RF Loop through connector | IEC-169-24 (Male) | ||||||
| HDMI V1.3/V1.4 | |||||||
| AV4 Interface | RCA/CVBS/AL/AR connector | ||||||
| Coaxial*1 | Ypbpr RCA*1 | ||||||
| Power | AC100-240V 50Hz/60Hz | ||||||
| Terrisal Receiver Standard | ISDB-T broadcast (1, 3, 13 segment) | ||||||
| Input RF Frequency | VHF: 177.143~213.143MHz UHF: 473.143~803.143MHz | ||||||
| Bandwidth | 6MHz | ||||||
| Constellation | QPSK 16-QAM 64-QAM/QPSK or DQPSK | ||||||
| FEC | 1/2, 2/3, 3/4, 4/5, 5/6, 7/8 | ||||||
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||||||
| FFT Mode | 2K/8K/32K | ||||||
| Input level | -83--5dBm | ||||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | ||||||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding | ||||||
| Media Codec | avi. mpg. dat. vob. div. mov. mkv. jpeg. ts. etc | ||||||
| Audio Codec | WMA, MP3, AAC(wma, mp3, m4a) | ||||||
| Photo Decoder | JPEG. BMP. PNG. | ||||||
| Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License | |||||||
| Accessories: Gift box *1, AV cable *1, IR remote control*1, User manual *1 | |||||||
