2018 top sale solar panels 250 watt solar module

Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling

FOB Price:US$ 0.18 / Other

MOQ:1 Other

Payment Method : L/C T/T D/P Wesstern Union

Keywords:2018 top sale, solar, panels, 250 watt ,solar, module

Add to Favorites

Product Category: Metallurgy,Chemicals & Energy > Solar Energy,Environment & Recycling Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai or Ningbo
Overview
Quick Details
  • Place of Origin:

  • Jiangsu, China
  • Brand Name:

  • Yangtze Solar
  • Model Number:

  • YS250P-60
  • Size:

  • 1650x990x40mm
  • Certificate:

  • TUV/IEC61215/IEC61730/CE/PID/ISO
  • Frame:

  • Anodized Aluminium Alloy
  • Junction Box:

  • IP65 Waterproof
  • Solar cell:

  • Poly 156mm*156mm
  • Front cover:

  • 3.2mm High Transmission Low Iron Tempered Glass
  • Connector:

  • MC4 Compatible Connector
  • Application:

  • Solar System
  • Frame color:

  • Silvery or Black
  • Backing Color:

  • White or Black or Transparent
  • OEM Order:

  • Acceptable
Product Certification
  •  TUV Certified.

  • Valid from 2018-12-20 until 2021-10-25

Supply Ability
  • Supply Ability:

  • 20000 Unit/Units per Week

Packaging & Delivery
  • Packaging Details

  • carton box and wooden pallet , 1pc /2pcs per carton , 25pcs/26pcs per pallet

  • Port

  • Shanghai or Ningbo

  • Lead Time :

  • Quantity(Watts)1 - 1000>1000
    Est. Time(days)10To be negotiated
Video Description
00:00
00:40
Product Description

  2016 top sale solar panels 250 watt





Model

YS260P-60

YS270P-60

YS280P-60

YS285P-60

YS290P-60

YS295P-60

YS300P-60

Rated Maximum Power at STC

260W

270W

280W

285W

290W

295W

300W

Maximum Power Voltage (Vmp)

31.1V

31.7V

32.3V

32.5V

32.8V

33.0V

33.2V

Maximum Power Current (Imp)

8.37A

8.52A

8.69A

8.77A

8.84A

8.94A

9.04A

Open Circuit Voltage ( Voc)

38.1V

38.8V

39.4V

39.7V

40.0V

40.3V

40.6V

Short Circuit Current (Isc)

8.98A

9.09A

9.20A

9.25A

9.32A

9.43A

9.49A

Module Efficiency

16.00%

16.60%

17.20%

17.60%

17.90%

18.02%

18.44%

Power Tolerance

0~+3%

0~+3%

0~+3%

0~+3%

0~+3%

0~+3%

0~+3%

STC: Irradiance 1000W/m2, Module Temperature 25°c, Air Mass 1.5

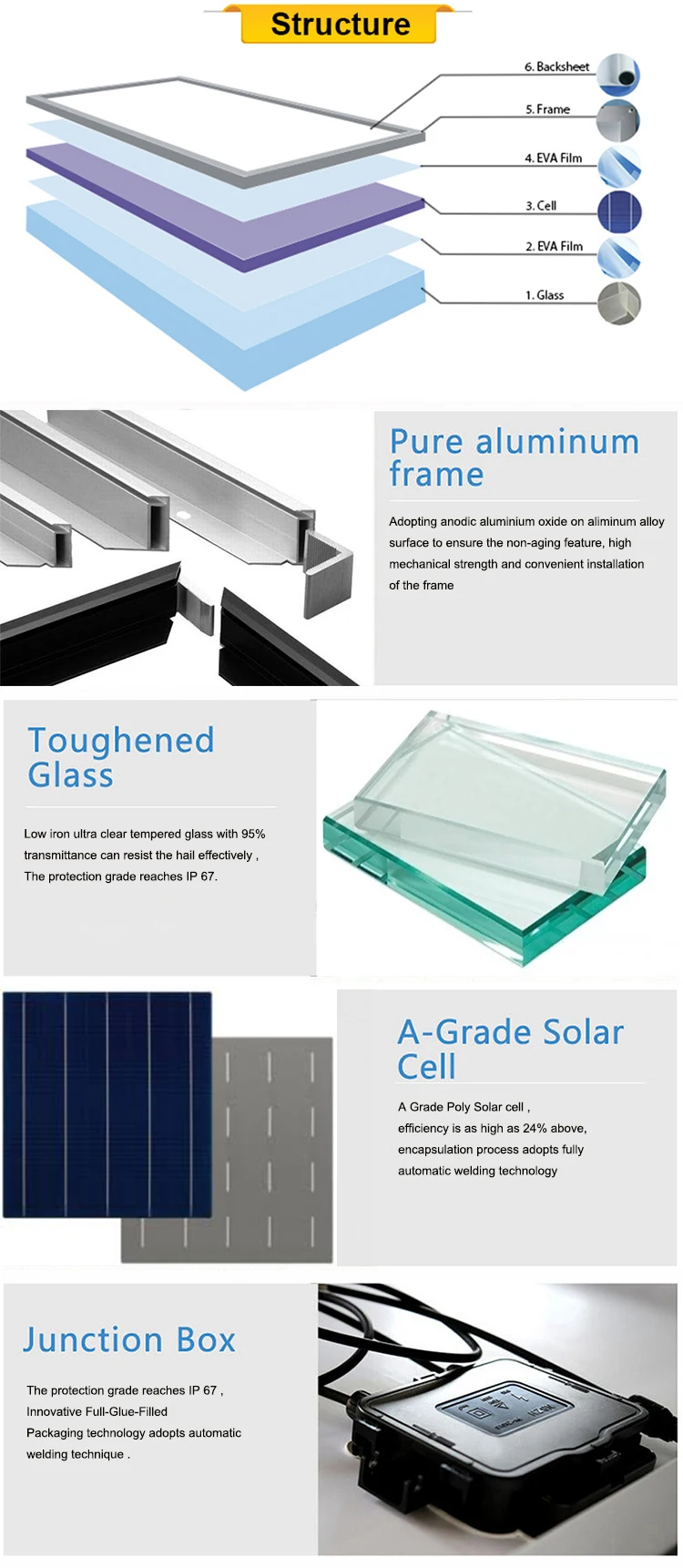

Mechanical Parameters
Cell TypePoly-crystalline 156x156mm (6inch)
No. of Cells60 (6x10)
Dimension 1650x990x35/40mm
Glass3.2mm, High Transmission, Low Iron, Tempered Glass
Junction BoxIP65&IP67 Rated
Output CableSection Size: 4mm2 , Length: 900mm
Frame Anodized Aluminum Alloy
No. of Bypass Diodes3&6
Connector MC4 Compatible
Working Conditions
Maximum System Voltage

DC 1000V(IEC) / 1500V(IEC) / 600V(UL)

Operating Temperature -40°c~+85°c
Maximum Series Fuse15A
NOCT45±2°c
Application ClassClass A
Temperature Coefficient
Temperature Coefficient of Pmax-41%/°c
Temperature Coefficient of Voc -31%/°c
Temperature Coefficient of Isc +0.06%/°c










Contact Name: Mr. William Xie Contact Email: 28****4@qq.com
Contact Job Title: Sales Manager Contact Mob: 188***071
Contact Tel: Contact Fax:
Address: No.231 Shufeng Road Website: https://www.yangtze-solar.com
Yangtze Solar , has supplied more than 1.5GW photovoltaic solar panels and millions of units of batteries , solar charger controllers and solar inverters .Yangtze Solar is focusing on product development , production , system integration , sales and service . Products include Poly-crystalline PV panel , Mono-crystalline PV panel , Lithium Battery ,Valve Regulated Lead Acid ( VRLA) Battery ,solar charge controller, solar inverter, Turn-key completed Off Grid and On Grid solar systems . We aim to develop, manufacture, and deliver the most reliable and cost-effective solar energy solutions to every corner in the world . Our Solar PV module factory covers 90,000 Square Meters ,has more than 750 employees .With an emphasis on management , research and development , Yangtze Solar continuously manufactures leading-edge products . The modules range from 5W~500W and are approved by TUV , UL , CE ,IEC61215 ,IEC61730 ,CSA ,CEC ,JET . The production capacity of solar panel has reached 600MW in 2017 . Our Battery factory covers 80,000 Square Meters ,has more than 700 employees .The batteries made by Yangtze Solar include Lithium Battery , 2V&12V VRLA AGM type , VRLA GEL type , OPzS and OPzV type which can be applied in Solar Power Plant Storage , Wind Energy Storage, Telecommunications ,UPS , Fire Alarm System , Emergency Lighting , etc . The production capacity of battery has reached 1.5 million units in 2017 . Our Solar Charge Controller and Inverter factory covers 11,000 Square Meters ,has more than 150 employees .The charge controllers and inverters made by Yangtze Solar include PWM Controller , MPPT Controller , pure sine wave inverter . All types of inverters and controllers are approved by CE , UL . The products have been exported to more 80 different countries . Yangtze Solar also offers the turn-key integration system that incorporate solar , LED lighting , energy products . We have installed and invested several both jointly and independently in China and abroad . he company follows ISO9001 quality system strictly . Up to date , Yangtze Solar has largely realized production line automation with imported advanced equipment and technology from Germany , USA and Japan .We keep strict controls on incoming inspection , production process , finished goods inspection. All products are certified by TUV IEC(Germany) ,UL(America) ,JET(Japan),CSA( Canada) ,CEC( Australia ) and CE . With excellent quality and good reputation , Yangtze Solar Panel and battery have been exported to more 120 different countries in the worldwide , especially to America , Germany , UK , Japan . Yangtze Solar will continue to innovate and improve its renewable energy product portfolio , to help the world create a cleaner and brighter future .
