Hefei Yangtze Solar Power Co., Ltd.

Business Type:Manufacturer

Main Products: Solar PanelLithium BatteryGel BatteryAGM BatterySolar syetem

view on mobile

China Top 10 solar panels suppliers in johannesburg

Metallurgy,Chemicals & Energy Solar Energy,Environment & Recycling

FOB Price:US$ 0.25 / Other

MOQ:255 Other

Payment Method : L/C T/T D/P Wesstern Union

Keywords:China, Top 10 ,solar,panels, suppliers ,in johannesburg

Add to Favorites

Product Category: Metallurgy,Chemicals & Energy > Solar Energy,Environment & Recycling Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai or Ningbo
Overview
Quick Details
  • Place of Origin:

  • Jiangsu, China
  • Brand Name:

  • Yangtze Solar
  • Model Number:

  • YS255P-60
  • Material:

  • Polycrystalline Silicon
  • Max. Power:

  • 255W
  • Number of Cells:

  • 60pcs
  • Size:

  • 1650x992x35/40mm
  • Certificate:

  • TUV/IEC61215/IEC61730/CE/PID/ISO
  • Frame:

  • Anodized Aluminium Alloy
  • Junction Box:

  • IP65 Waterproof
  • Solar cell:

  • Poly 156mm*156mm
  • Front cover:

  • 3.2mm High Transmission Low Iron Tempered Glass
  • Connector:

  • MC4 Compatible Connector
  • Application:

  • Solar System
  • Frame color:

  • Silvery or Black
  • Backing Color:

  • White or Black or Transparent
  • OEM Order:

  • Acceptable
Product Certification
  •  TUV Certified.

  • Valid from 2018-12-20 until 2021-10-25

Supply Ability
  • Supply Ability:

  • 20000 Unit/Units per Week

Packaging & Delivery
  • Packaging Details

  • carton box and wooden pallet , 1pc /2pcs per carton , 25pcs/26pcs per pallet

  • Port

  • Shanghai or Ningbo

Product Description

China Top 10 solar panels suppliers in johannesburg













ModelYS230P-60YS240P-60YS245P-60YS250P-60YS255P-60YS260P-60YS265P-60
Rated Maximum Power at STC230W240W245W250W255W 260W 265W
Maximum Power Voltage (Vmp)29.3V 29.6V 29.9V 30.5V 30.8V31.1V 31.4V
Maximum Power Current (Imp)7.86A8.11A8.19A 8.22A 8.28A8.37A8.44A
Open Circuit Voltage ( Voc)36.5V36.9V37.2V37.5V 37.7V 38.1V 38.4V
Short Circuit Current (Isc)8.51A8.63A 8.67A 8.85A 8.92A8.98A 9.03A
Module Efficiency14.16%14.78% 15.09% 15.40% 15.71% 16.02%16.32%
Power Tolerance 0~+3%0~+3% 0~+3% 0~+3%0~+3% 0~+3%0~+3%
STC: Irradiance 1000W/m2, Module Temperature 25°c, Air Mass 1.5

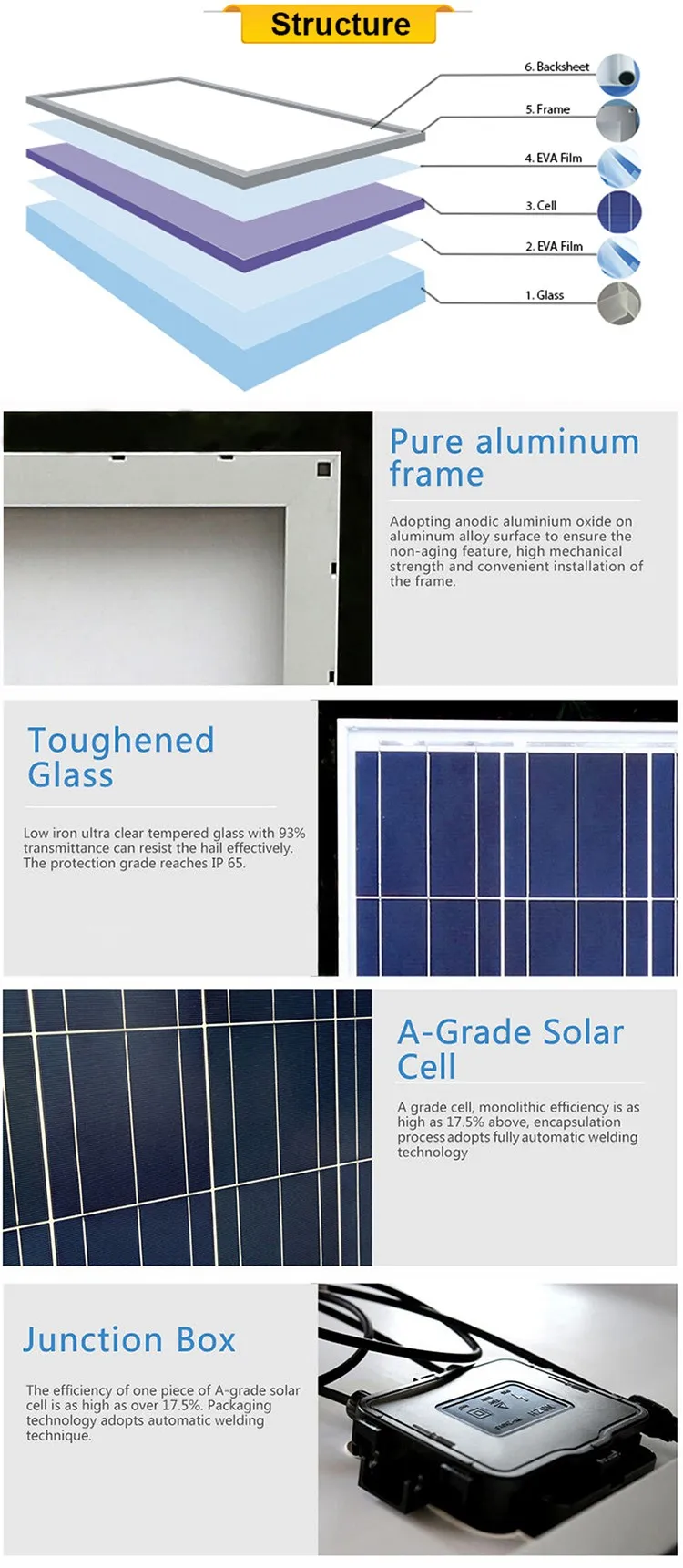

Mechanical Parameters
Cell TypePoly-crystalline 156x156mm (6inch)
No. of Cells60 (6x10)
Dimension 1650x990x35/40mm
Glass3.2mm, High Transmission, Low Iron, Tempered Glass
Junction BoxIP65&IP67 Rated
Output CableSection Size: 4mm2 , Length: 900mm
Frame Anodized Aluminum Alloy
No. of Bypass Diodes3&6
Connector MC4 Compatible
Working Conditions
Maximum System Voltage

DC 1000V(IEC) / 1500V(IEC) / 600V(UL)

Operating Temperature -40°c~+85°c
Maximum Series Fuse15A
NOCT45±2°c
Application ClassClass A
Temperature Coefficient
Temperature Coefficient of Pmax-0.41%/°c
Temperature Coefficient of Voc -0.31%/°c
Temperature Coefficient of Isc +0.06%/°c









Packaging & Shipping






Contact Name: Mr. William Xie Contact Email: 28****4@qq.com
Contact Job Title: Sales Manager Contact Mob: 188***071
Contact Tel: Contact Fax:
Address: No.231 Shufeng Road Website: https://www.yangtze-solar.com
Yangtze Solar , has supplied more than 1.5GW photovoltaic solar panels and millions of units of batteries , solar charger controllers and solar inverters .Yangtze Solar is focusing on product development , production , system integration , sales and service . Products include Poly-crystalline PV panel , Mono-crystalline PV panel , Lithium Battery ,Valve Regulated Lead Acid ( VRLA) Battery ,solar charge controller, solar inverter, Turn-key completed Off Grid and On Grid solar systems . We aim to develop, manufacture, and deliver the most reliable and cost-effective solar energy solutions to every corner in the world . Our Solar PV module factory covers 90,000 Square Meters ,has more than 750 employees .With an emphasis on management , research and development , Yangtze Solar continuously manufactures leading-edge products . The modules range from 5W~500W and are approved by TUV , UL , CE ,IEC61215 ,IEC61730 ,CSA ,CEC ,JET . The production capacity of solar panel has reached 600MW in 2017 . Our Battery factory covers 80,000 Square Meters ,has more than 700 employees .The batteries made by Yangtze Solar include Lithium Battery , 2V&12V VRLA AGM type , VRLA GEL type , OPzS and OPzV type which can be applied in Solar Power Plant Storage , Wind Energy Storage, Telecommunications ,UPS , Fire Alarm System , Emergency Lighting , etc . The production capacity of battery has reached 1.5 million units in 2017 . Our Solar Charge Controller and Inverter factory covers 11,000 Square Meters ,has more than 150 employees .The charge controllers and inverters made by Yangtze Solar include PWM Controller , MPPT Controller , pure sine wave inverter . All types of inverters and controllers are approved by CE , UL . The products have been exported to more 80 different countries . Yangtze Solar also offers the turn-key integration system that incorporate solar , LED lighting , energy products . We have installed and invested several both jointly and independently in China and abroad . he company follows ISO9001 quality system strictly . Up to date , Yangtze Solar has largely realized production line automation with imported advanced equipment and technology from Germany , USA and Japan .We keep strict controls on incoming inspection , production process , finished goods inspection. All products are certified by TUV IEC(Germany) ,UL(America) ,JET(Japan),CSA( Canada) ,CEC( Australia ) and CE . With excellent quality and good reputation , Yangtze Solar Panel and battery have been exported to more 120 different countries in the worldwide , especially to America , Germany , UK , Japan . Yangtze Solar will continue to innovate and improve its renewable energy product portfolio , to help the world create a cleaner and brighter future .
