Gantry CNC plate drilling machine with factory price

Machinery & Fabrication Services

FOB Price:US$ 9,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:machine

Inquire


Add to Favorites

Product Category: Machinery & Fabrication Services > Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai
Overview
Quick Details

  • Motor Type:

  • SERVO MOTOR

  • Condition:

  • New

  • Place of Origin:

  • Shandong, China

  • Model Number:

  • PMZ2016

  • Voltage:

  • 380V/50HZ/60HZ

  • Rated Power:

  • 7.5

  • Dimension(L*W*H):

  • 3500x2650x2870mm

  • Certification:

  • CE:ISO

  • Weight (KG):

  • 6000 KG

  • Warranty:

  • 1 year

  • After-sales Service Provided:

  • Video technical support, Field maintenance and repair service, Online support, Free spare parts, Field installation, commissioning and training

  • Key Selling Points:

  • High Productivity

  • Applicable Industries:

  • Hotels, Building Material Shops, Manufacturing Plant, Construction works

  • After Warranty Service:

  • Video technical support, Online support

  • Local Service Location:

  • South Africa

  • Showroom Location:

  • South Africa

  • Product name:

  • Gantry CNC plate drilling machine with factory price

  • type:

  • Drilling & Milling Machine

  • Range of Spindle Speed(r/m):

  • 20 - 5000

  • Max. Drilling Dia. (mm):

  • 50 mm

  • Drilling Speed:

  • 120-560r/min
Supply Ability

  • Supply Ability:

  • 100 Set/Sets per Month

Packaging & Delivery

  • Port

  • Qingdao

  • Lead Time :

  • Quantity(Sets)1 - 2>2
    Est. Time(days)60To be negotiated
Product Description

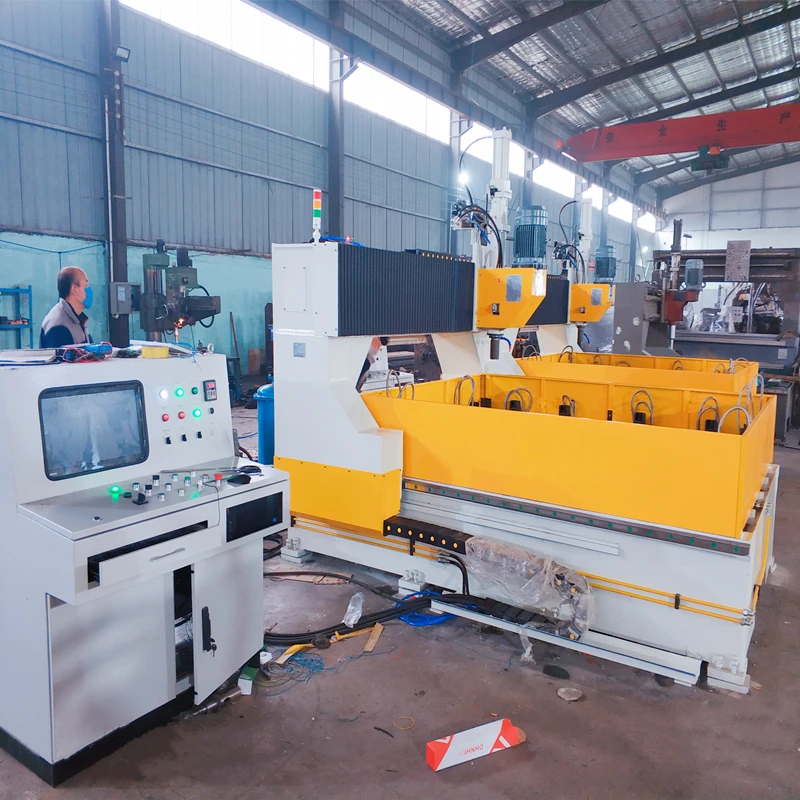

CNC plate drilling machine is flat drilling equipment specially developed and produced for the drilling of steel structural connecting plates and boiler flanges.

Our gantry type CNC plate drilling machine is mainly used for drilling pipes, baffles and flanges in petrochemical, boilers, refrigeration and other industries.

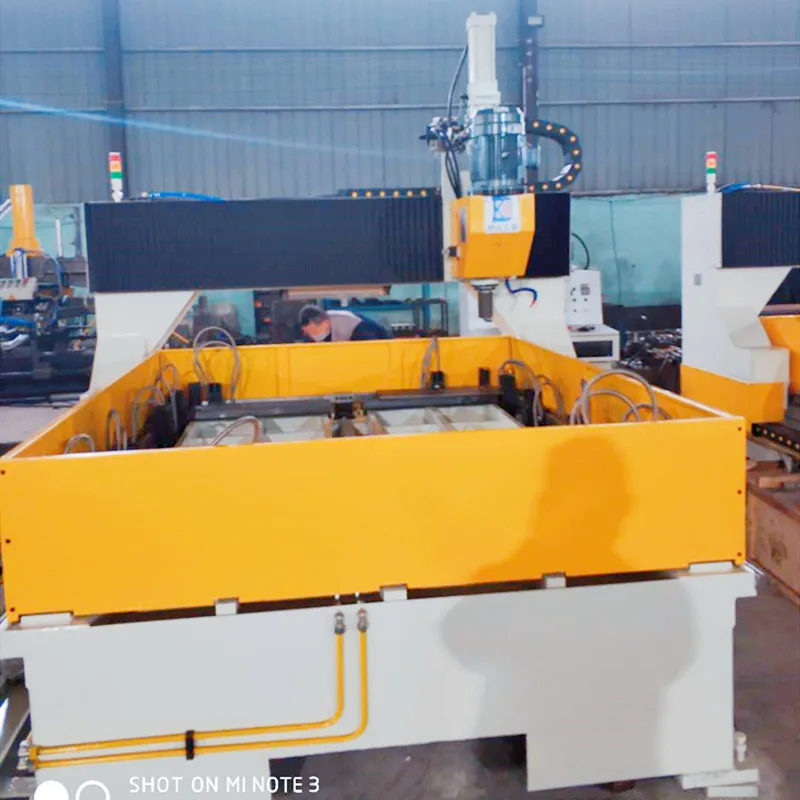

1. With the fixed platform, the form of Gantry mobile can reduce the length of the bed and save the floor area.

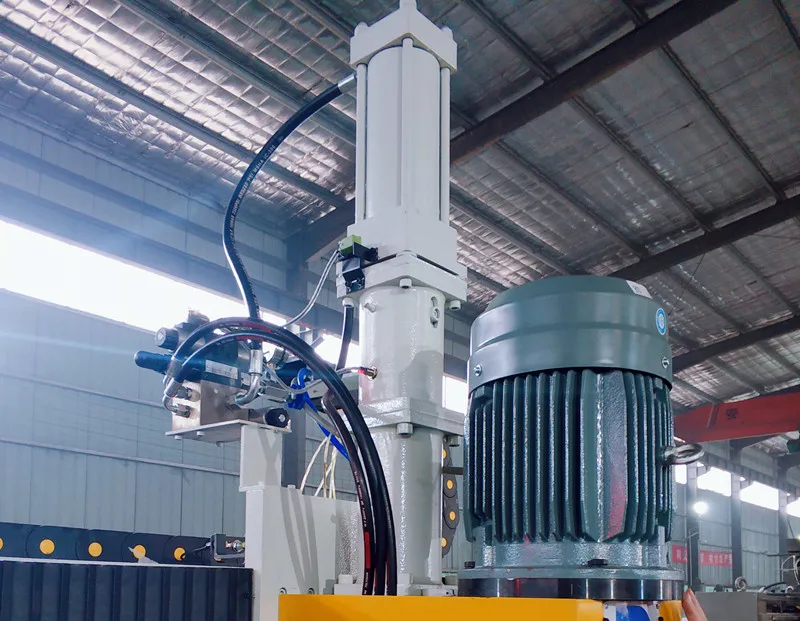

2.  The drilling head is made of Taiwan precision spindle (with internal cooling function), hydraulic loosening knife and changing knife.
3. Numerical control is controlled by Spanish FAGOR8055 system
4.  High production efficiency and high positioning precision.
Product Paramenters
Item
Parameter
Processing range(mm)
2000*1200 2000*1600 2000*2000 3000*1600
Thickness(mm)
15-100
Number of spindle
1
Spindle model
Morse 4# cone hole
Spindle speed
120-560
Feed mode
servo motor feed
Feed stroke(mm)
240
Drilling hole diameter(mm)
Φ12-Φ50 (OptionalΦ12-Φ63）
Motor power(KW)
5.5 (Optional7.5）
Clamping method
Gantry double-sided button control
Control method
SIEMENS CNC system/plc+PC
Product Details
Product Advantages

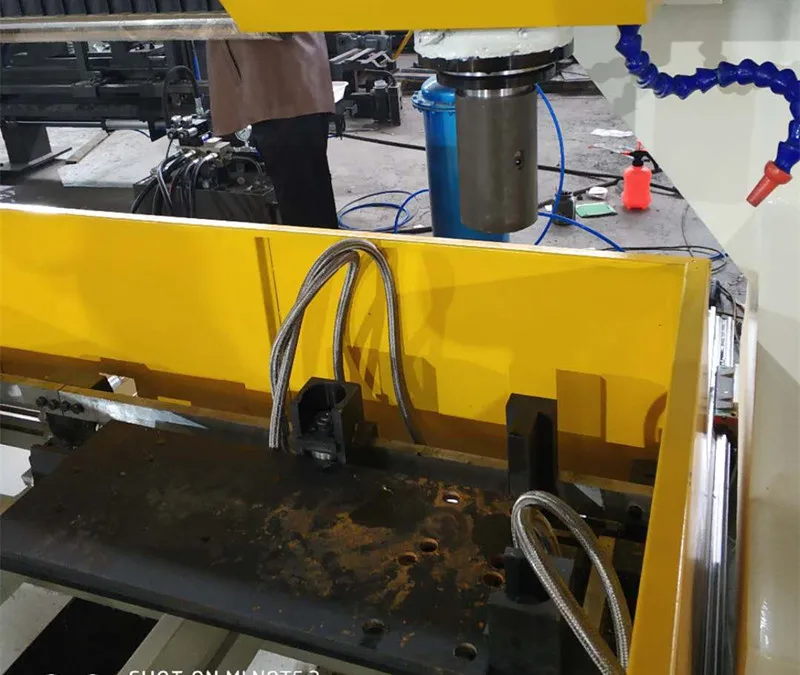

CNC plate drilling machine is mainly compose of bed ,gantry,vertical slide,drilling power head ,hydraulic system,control system ,centralized lubrication system ,cooling system and chip removal system and so on. 1.The bed is made of high quality gray cast iron with stable performance and no deformation. 2.Spindle hydraulic feed ,motor adopts German SEW reducer motor,high efficiency and very durable . 3.Workpiece clamping is clamped by hydraulic clamping cylinder,small workpiece can be clamped at four corners of worktable, 4.Shortening production preparation period and improving production efficiency. 5.SIEMENS servo motor+CNC system control.Gantry moving dual servo motor +Ball screw synchronous drive.
