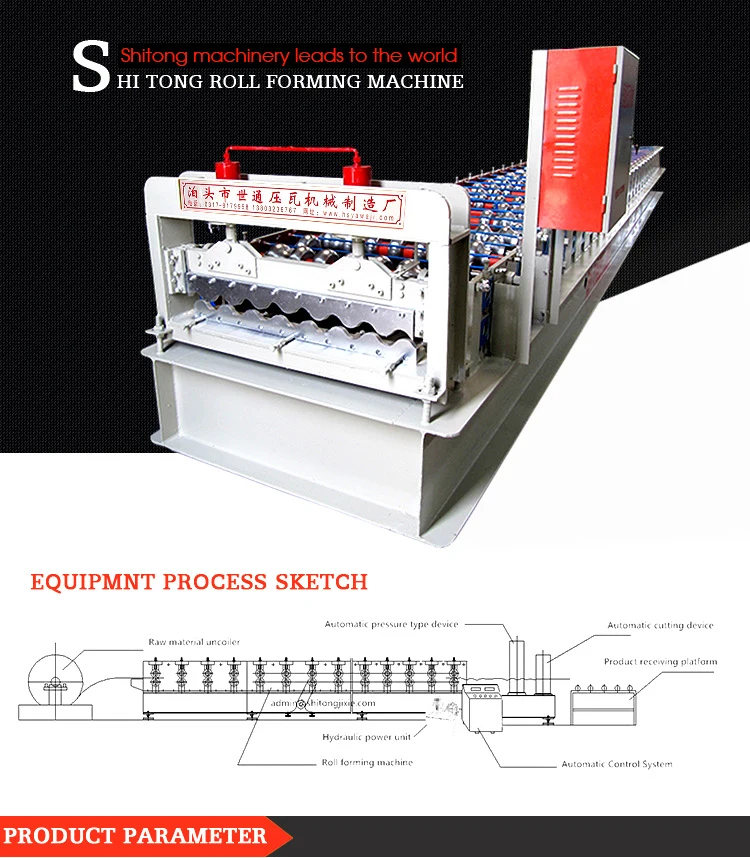

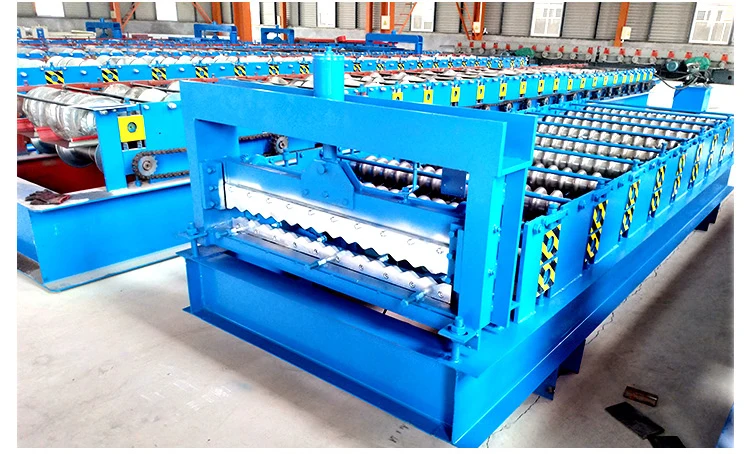

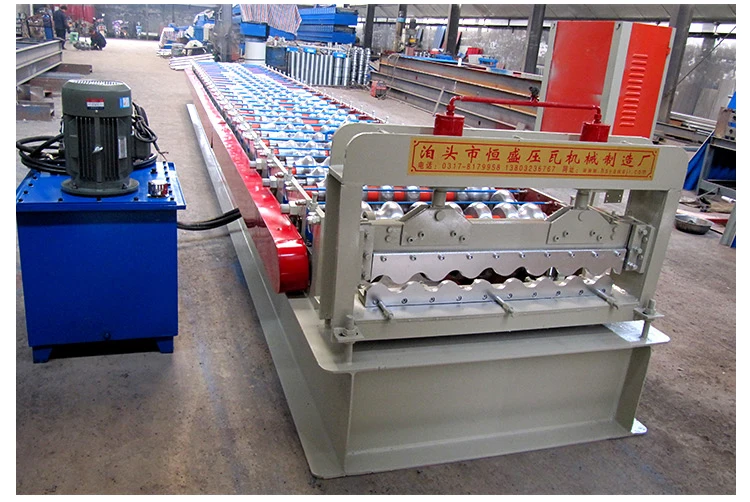

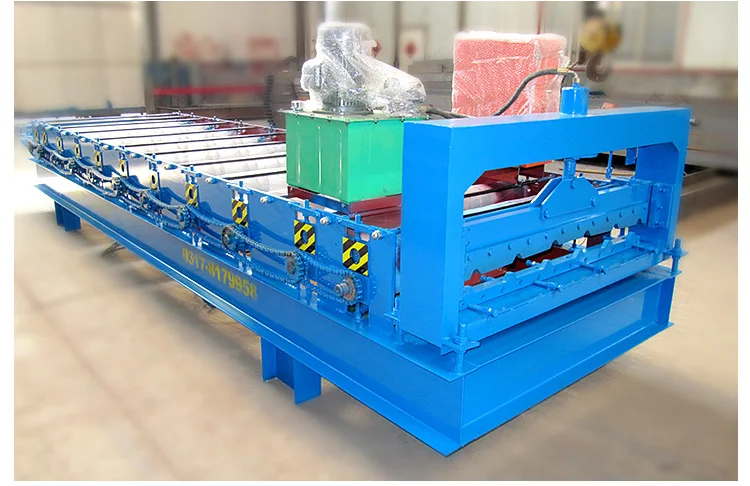

Roofing Cold Roll Panel Roof Making Tile Metal Sheet Corrugated Forming Machine
MOQ:1 Set(s)
Payment Method : L/C T/T Others
Keywords:Sheet Corrugated Forming Machine
| Product Category: | Hardware,Tools & Measurement > | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | hebei |
| Article No. | Item Name | Specification |
| 1 | Processing material | Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized |
| 2 | Processing thickness (mm) | 0.3-1.0mm or as your customized |

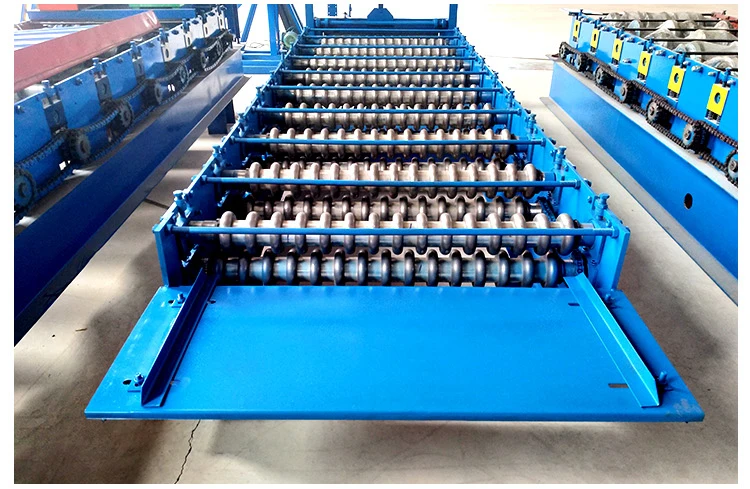

| 3 | Material of rollers | High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm |
| 4 | Material of shafts | 45# steel |
| 5 | Diameter of shafts | 70mm or as your customized |
| 6 | Forming speed | 8-12 m/min or as your customized |
| 7 | Under frame | 350 H-beam |
| 8 | Sidewall | 16mm |
| 9 | Connect bar | 25mm, zinc plated |
| 10 | Forming steps | 10-18 or as your customized |

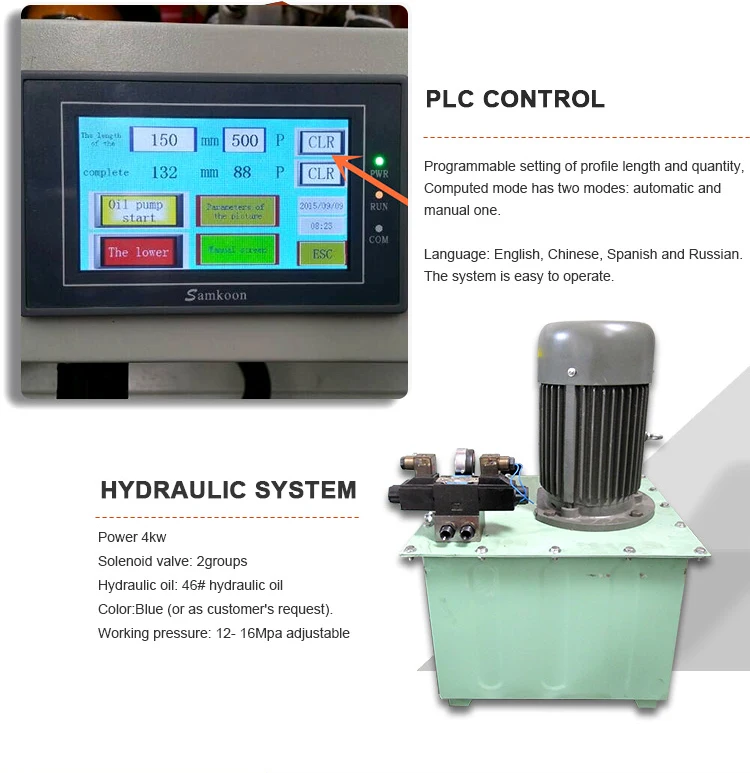

| 11 | Control system | Delta PLC and Inverter |
| 12 | Suitable power | 380V, 50 Hz, 3 phase or according to your need |
| 13 | Drive mode | Chain and sprocket, chain size 1 inch |
| 14 | Main motor | 3-5.5kw |
| 15 | Hydraulic pump station | 3-5.5kw |
| 16 | Cutting model | Hydraulic profile cutting |
| 17 | Dimension of the machine | 7.5m-11m×1.5mm×1.2m |
| 18 | Weight of the machine | 3.5 ton -6 ton |
According to customer’s requirement, the technical parameters of the roll forming machine are different.
The design of the roll forming machine is convenient to adjust, for it owns reasonable structure,compact shape, high precision and high efficiency.
Corrosion resistance, aging resistance and long service life, the service life of the color steel press type equipment is longer than other's.
We have some other models, if you are interested. Click for more information.
| 1. Installation and training: |
A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face. |
| B.Without visiting, we will send you user manual and video to teach you to install and operate. |
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. |
| 2. after Service |
| A.One year guarantee for whole machine. |
| B.24 hours technical support by email or phone call. |
C.If there is any problem found of the machine, we will repair it for free in one year.
|
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd. is a professional manufacturer and exporter that are concerned with the design, development and manufactur of cold roll forming machines. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.
The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.
Our products have been sold to worldwide, including North/South America, Asia, Africa, Australia and Europe... We know well about the requirement from different regions' customers. We have outstanding export team to listen to your request; the designed team will show you the best proposal according to your request, and we also have experts, skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.
Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We needyour machines running in order to keep your business running.
3. How to visit your company?
A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
B.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi (4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months, if the broken parts can't repair, we can send the new parts replace the broken parts freell, but you need pay the express cost yourself.if after warranty period, we can through negotiationfor to solve the problems, and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes, please tell me the destination port or address.we have rich experience in transport.
6. You are Trade Company or factory?
We are trade company but we also have own factories. Building Trade Company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
