RHD1812-75 high rejection residential ro membrane element 75GPD

Home Appliances & Security Firefighting & Water Safety

FOB Price:US$ 4.00 / Piece(s)

MOQ:500 Piece(s)

Payment Method : T/T

Keywords:residential ro membrane reverse osmosis membrane 75GPD ro membrane 1812 ro membrane

Add to Favorites

Product Category: Home Appliances & Security > Firefighting & Water Safety Trademark: RTL
Product Package: 25pcs/carton Specifications: 1812-75
Place of Origin: Cixi, Ningbo, China Port: Ningbo
Product Description

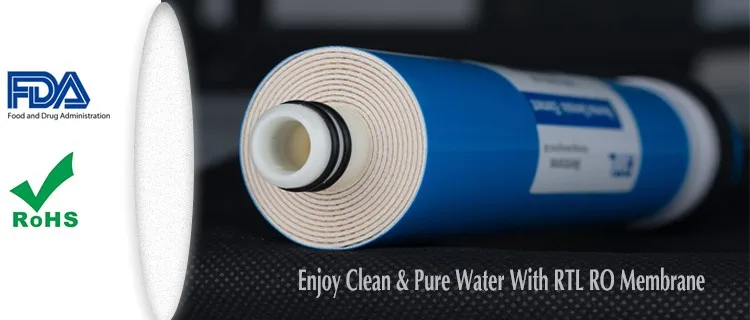

RTL Residential Reverse Osmosis (RO) membrane elements is made by the most advance technique polyamide RO membrane sheets and combined with experience on the process of rolling membranes for years.


The Ro element is designed for threatment of Low-salinity water resources such as tap water, Well Water, etc. Working under extra low pressure, it is applicable to water purifying devices for residence, hospital and laboratory.


Features

High Level Of Salt Rejection

High Water Flux

Stable Performance

Universal Standard Size

Long Life Use

Series
Model No.
Permeate Flow
(GPD)
Minimum Rejection
%
Stabilized Rejection
%
Test Pressure
        Psi





RHS
1812-50
60
95
96
72
1812-75
90
95
96
72
2012-100
120
95
96
72
2012-150
170
95
96
72
3012-400
400
93
95
90
3013-400
400
93
95
90
3013-600
600
93
95
90




RHD
1812-50
50
97
98.5
72
1812-75
75
97
98.5
72
2012-100
100
97
98.5
72
2012-150
150
97
98.5
72
3012-400
400
96
97
90
3013-400
400
96
97
90

The Stated performance is for the initial data taken after 30 minutes of operation, based on the following testing conditions:


250 ppm Nacl Solution

35% Permeate Recovery

25℃ Operating Temperture

6.0 - 8.0 PH Range


Application Limits:


Maximum Opreating Temperture: 45℃

Maximum Opreating Pressure: 150psi(1.03Mpa)

PH Range, Continuous Opreation: 3-10

PH Range, Short-Term Cleaning: 2-12

Maximum Feed Silt Density Index(SDI) : 5

Free Chlorine Tolerance: <0.1 ppm

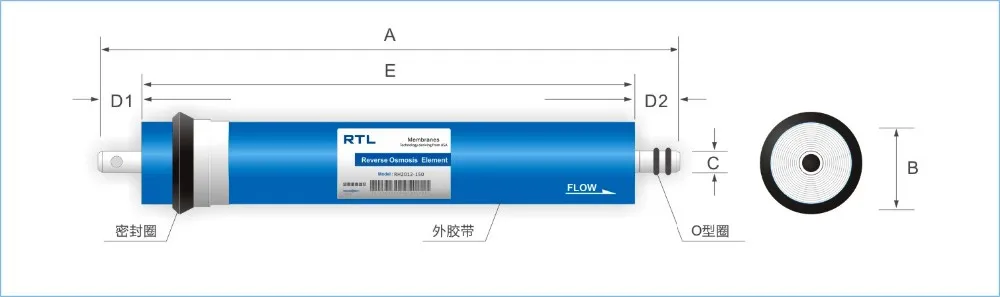

Model
A Inch (mm)
B Inch (mm)
C Inch (mm)
D Inch (mm)
1812
11.7(298)
0.82(21)
0.68(17)
1.8(44.5)
2012
11.7(298)
0.82(21)
0.68(17)
2.0(48.2)
3012
11.7(298)
0.82(21)
0.68(17)
3.0(76.2)
3013
12.9(328)
0.75(19)
0.68(17)
2.7(68)

RO MEMBRANE ELEMENT REVERSE OSMOSIS SYSTEM FOR WATER PURIFIER AND FILTER FOR RESIDENTIAL

Company Info

Ningbo RXHL Technology Co.,Ltd.


Is an ISO9001 Certified Productive Enterprise, With The Head Office In Ningbo, Specialized In Designing & Manufacturing Reverse Osmosis(RO) Membrane Sheet And RO Elements Since 2016, Own Brand RTL.

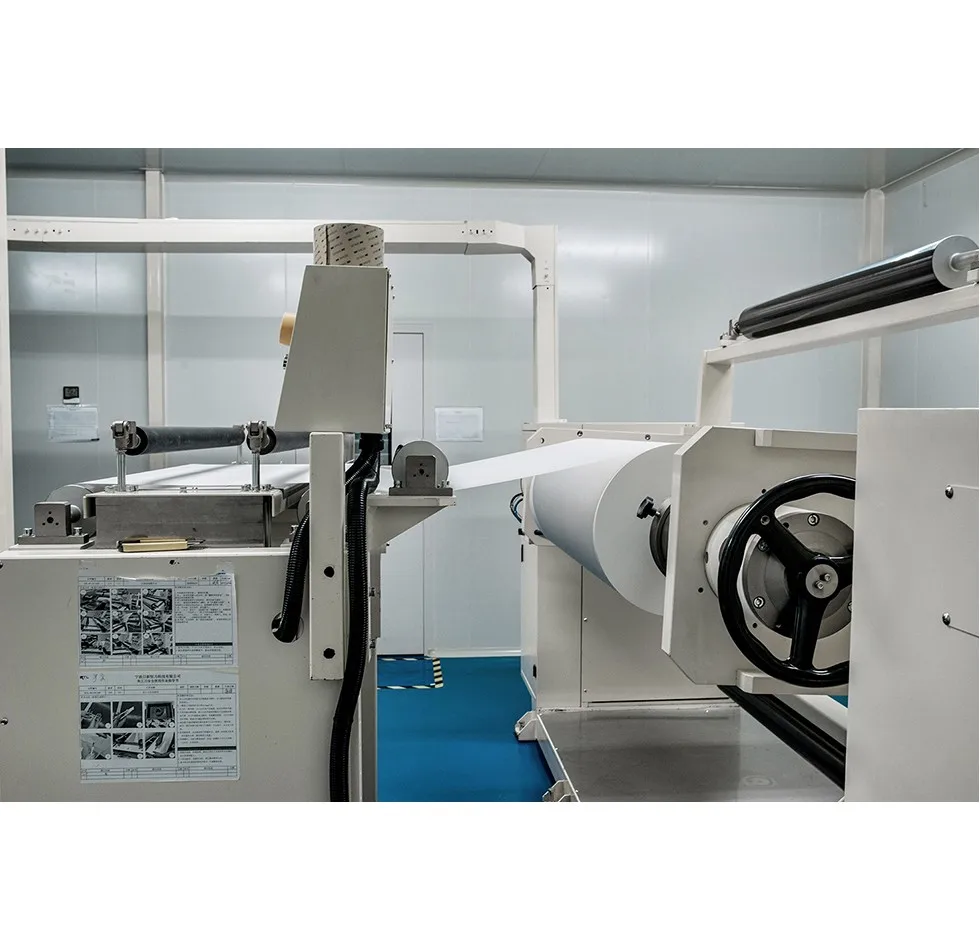

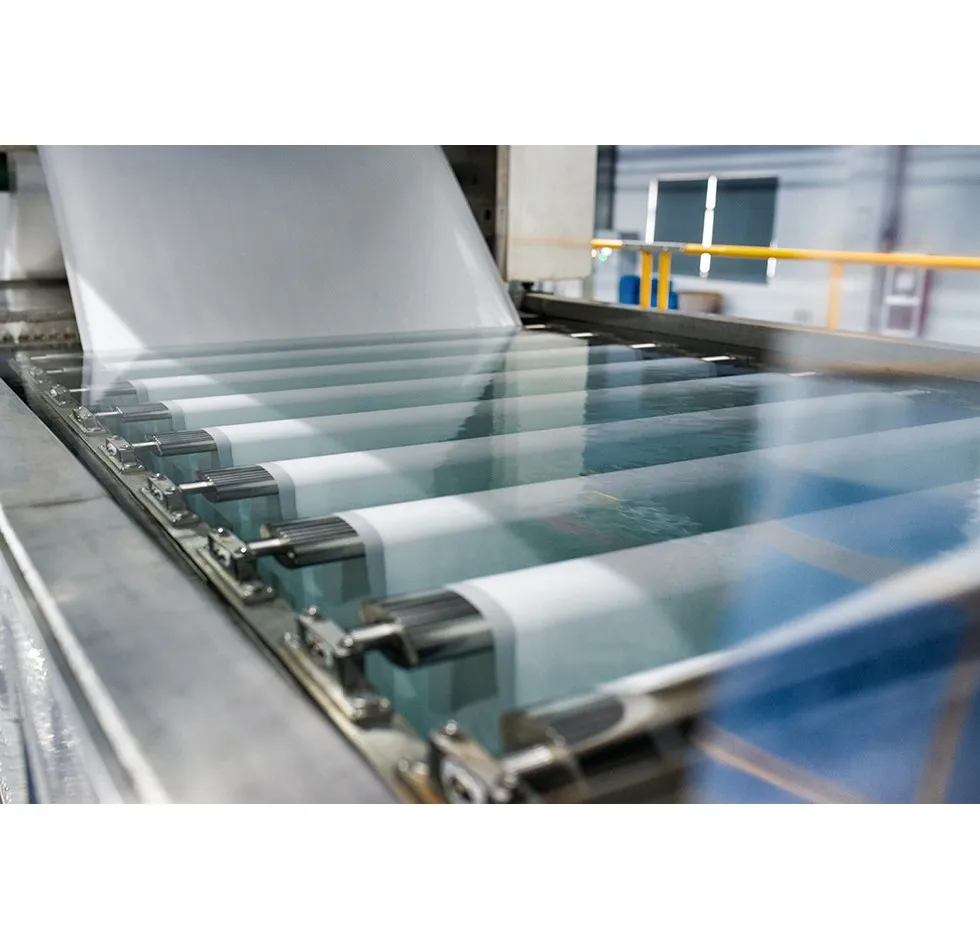

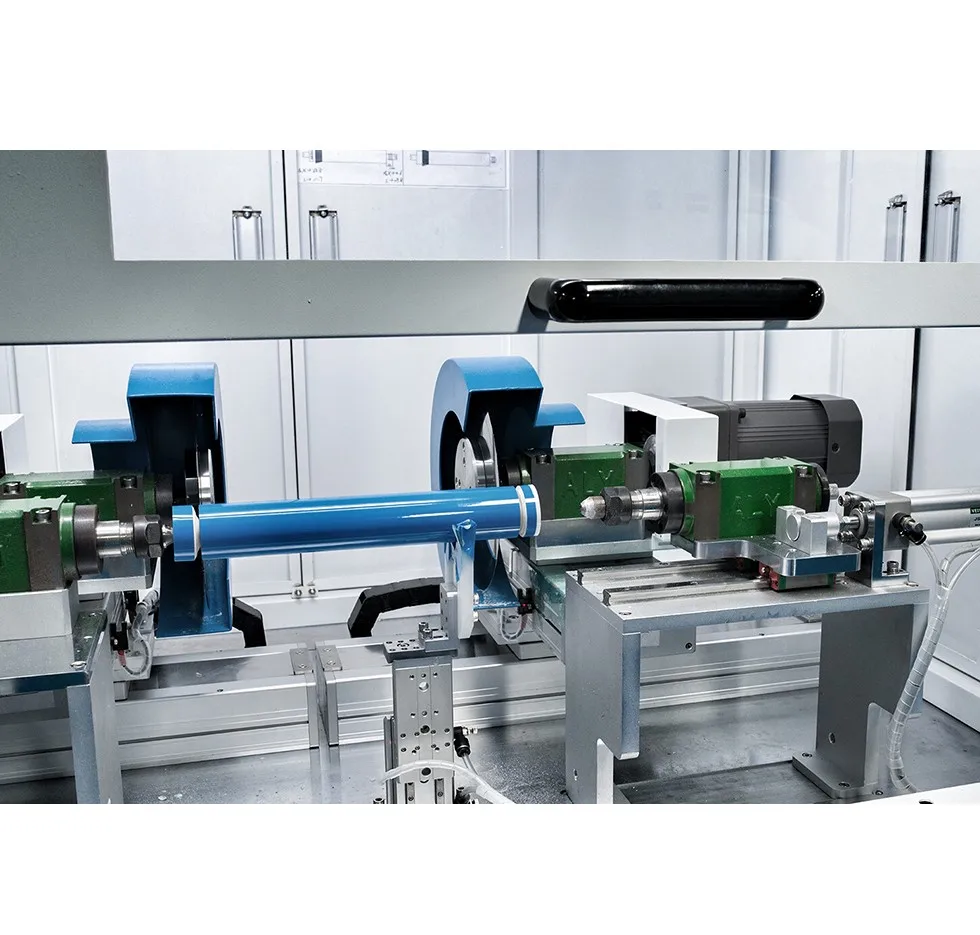

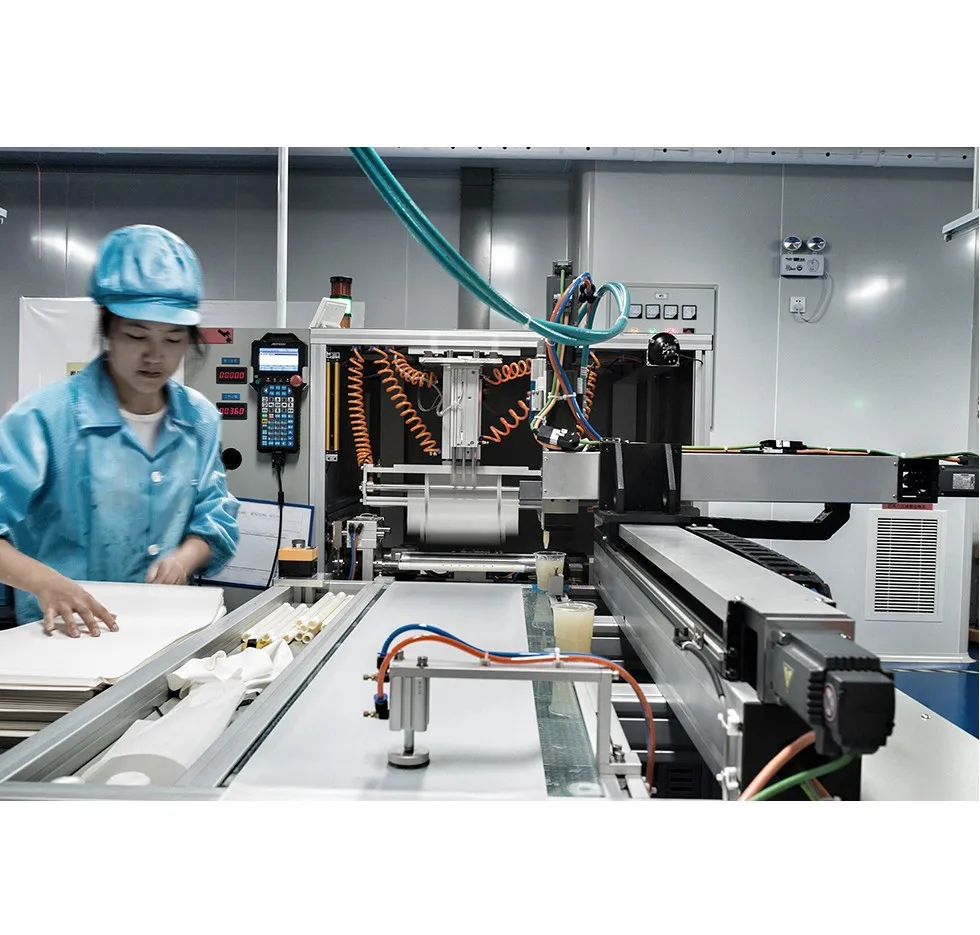

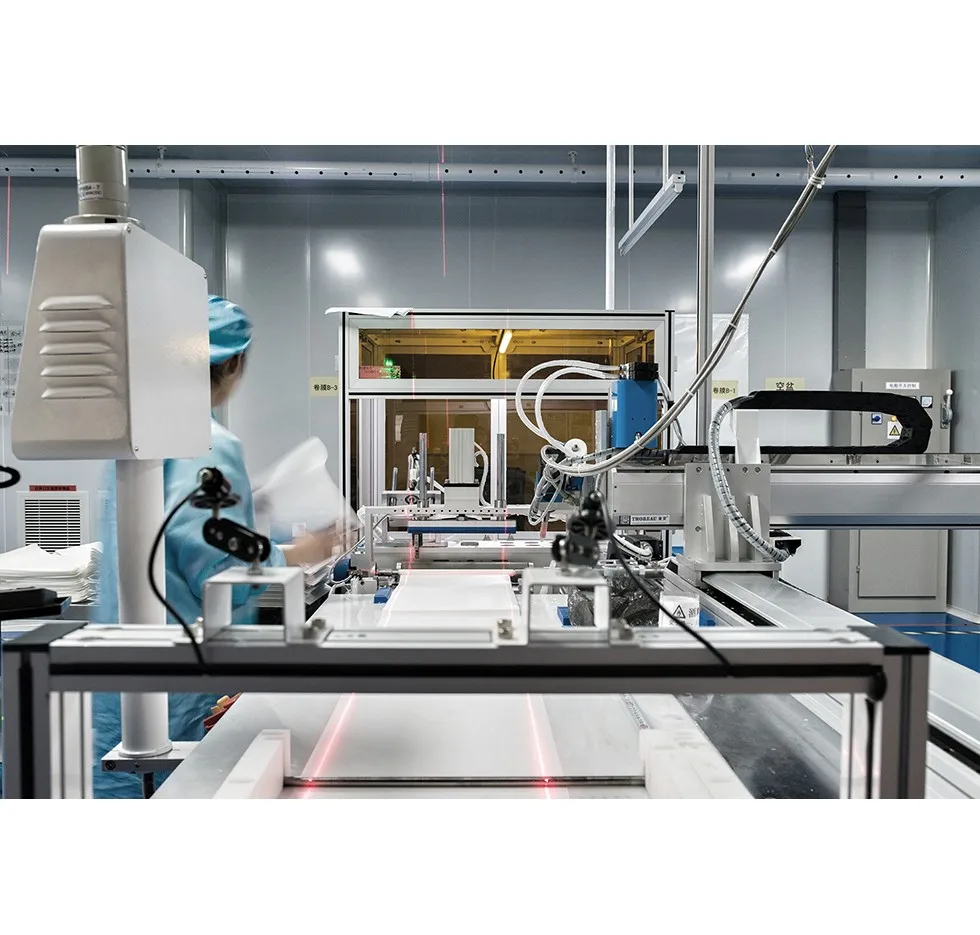

Over 35000 Sqm Workshop, 2 Lines Of Automatic Membrane Sheet Produce Line, 10 Lines Of Membrane Rolling, Daily Capacity can reach 5,000 Pcs.

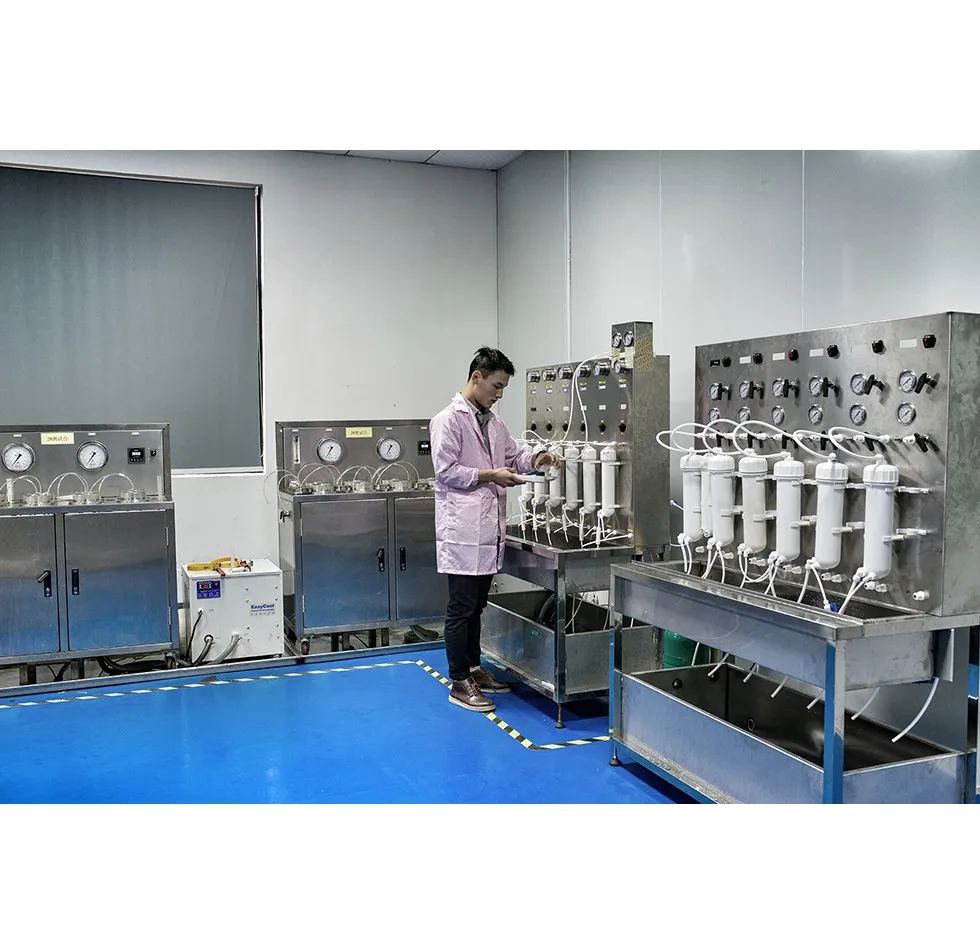

Quality Is RTL's Core-Competitiveness, Each Step is Strictly Inspected in Factory, and Complies to ROHS & FDA Standards.

Contact Us


Contact Name: Mrs. QIAO YUN FEI Contact Email: fe****y@rtlwater.com
Contact Job Title: Sales Manager Contact Mob: 138***497
Contact Tel: Contact Fax:
Address: No.296 Kaiyuan Road, Hi-tech Development Zone, Cixi, Zhejiang, China Website: www.rtlwater.com

Specialized In Designing & Manufacturing Reverse Osmosis(RO) Membrane Sheet And RO Elements. Ningbo RXHL Technology Co.,Ltd. Is an ISO9001 Certified Productive Enterprise, With The Head Office In Ningbo, Own Brand RTL.Over 35000 Sqm Workshop, 2 Lines Of Automatic Membrane Sheet Produce Line, 10 Lines Of Membrane Rolling, Daily Capacity Can Reach  20,000 Meters of Sheet And 5,000 Pcs Of Elements. Quality Is RTL's Core-Competitiveness, Each Step is Strictly Inspected in Factory, and Complies to ROHS & FDA Standards.
