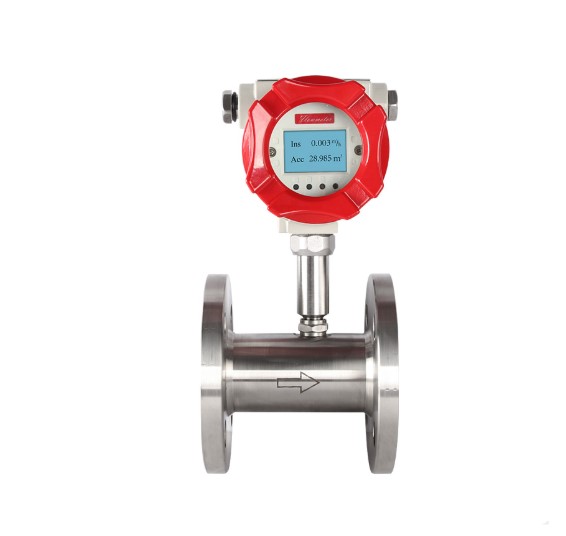

SUP-LWGY Liquid turbine flowmeter flange connection type
Hardware,Tools & Measurement Measuring Instruments
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P
Keywords:Turbine flowmeter liquid flowmeter Supmea flowmeter SUP-LWGY flowmeter
| Product Category: | Hardware,Tools & Measurement > Measuring Instruments | Trademark: | Supmea |
| Product Package: | Carton | Specifications: | DN4~DN200 |
| Place of Origin: | China | Port: | Shanghai |
| Product | Turbine flowmeter |
| Model | SUP-LWGY |
| Diameter Nominal | DN4~DN200 |
| Nominal Pressure | 1.0MPa; 1.6MPa; 2.5MPa; 4.0MPa; 6.3MPa |
| Accuracy | 0.2, 0.5, 1.0 (preferred) |
| Medium viscosity | Less than 5×10-6m2/s |
| (for the liquid with >5×10-6m2/s, | |
| the flowermeter needs to be calibrated before using) | |
| Medium Temperature | -20℃~+120℃ （stainless steel measuring tube） |
| Ambient temperature:-20℃~+60℃ | |
| Environmental condition | Relative humidity:5% to 95% |
| Atmospheric pressure:86kPa~106kPa | |
| Power Supply | 3.6V lithium battery; 12VDC; 24VDC |
| Output Signal | Three-wire pulse output, tow-wire 4-20mA output |
| Ingress protection | IP65 |
Introduction
SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe.
