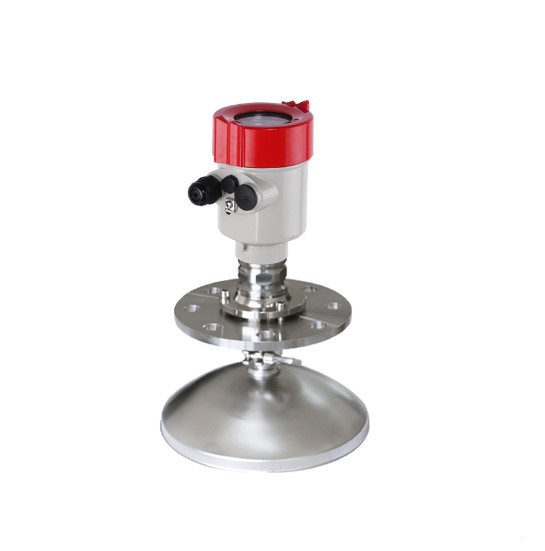

SUP-RD904 Solid material Radar level meter
Tools,Hardware & Instruments Measuring Instruments
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P
Keywords:Radar level meter Solid material
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | Supmea |
| Product Package: | Carton | Specifications: | 0-80 meters |
| Place of Origin: | China | Port: | Shanghai |
| Product | Radar level meter |
| Model | SUP-RD904 |
| Measure range | 0-80 meters |
| Application | Solid material, Strong dust, easy to crystallize, condensation occasion |
| Process Connection | Thread, Flange |
| Medium Temperature | -40℃~250℃ |
| Process Pressure | -0.1 ~ 0.3MPa |
| Accuracy | ±15mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire |
Introduction
SUP-RD904 Radar level meter adopts a recommended industry emission frequency of 26GHz. The measurement range of up to 80 meters, covering a large reservoir water level measurement.
Product Size
Installation guide
 |  |  |
Be installed in the diameter of the 1/4 or 1/6. Note: The minimum distance from the tank wall should be 200mm. Note: ① datum ②The container center or axis of symmetry | The top conical tank level, can be installed at the top of the tank is intermediate, can guarantee the measurement to the conical bottom | A feed antenna to the vertical alignment surface. If the surface is rough, stack angle must be used to adjust the angle of cardan flange of the antenna to the alignment surface. (Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.) |
