NF membrane 8040
Smart Home Appliance & Security Firefighting & Water Safety
MOQ:20 Piece(s)
Payment Method : T/T
Keywords:nanofiltration membrane NF membrane 8040 drinking water use membrane high-flow membrane NF270 replacement industrial membrane membrane manufacturer Chinese NF membrane
| Product Category: | Smart Home Appliance & Security > Firefighting & Water Safety | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Ningbo / Shanghai |

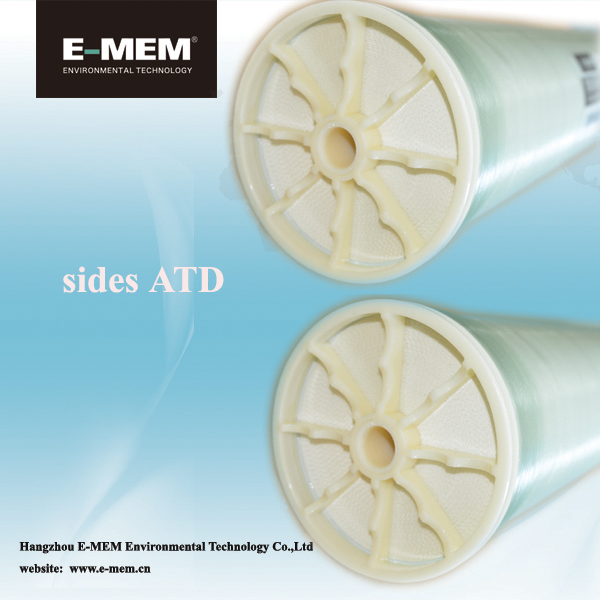

Membrane Element EM-NF-8040
In the production of NF (Nano-Filtration) products, E-MEM optimizes the membrane material and strictly controls the synthesis process. The developed NF membrane not only remove the macromolecular, divalent and multivalent iron, but also do purification , concentration and separation.
1 With years of proven performance.
2 High performance and long element life.
3 Offers a nanofiltration technology that selectively removes these components,color
4 operates at low operating pressures.
5 ODM and OEM are available.
Product Specifications
E-MEM? Element | Active Area | Feed spacer Thickness（mil） | Permeate Flow GPD （m3/d） | Salt Rejection （%） |
ft2 （m2） | ||||
EM-NF-8040-R85 | 400 （37） | 28 | 7500 （28.4） | 98.0 |
EM-NF-8040-R40 | 400 （37） | 28 | 8000 （30.3） | 95.0 |
1. Permeate flow and salt (MgSO4) rejection based on the following standard test conditions: 500 ppm MgSO4, 70 psi (4.8 bar), 77°F (25°C), pH 7.5, 15% recovery.
2. Flow rates for individual elements may vary but will be no more than 20% below the value shown.
3. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use; depending upon feed water characteristics and operating conditions.
4. Sales specifications may vary as design revisions take place.
Element dimenison
E-MEM? Element | A | B | C |
In.（mm） | In.（mm） | In.（mm） | |
EM-NF-8040 | 40.0 1016 | 7.9 200 | 1.126ID 28.6ID |
1. Refer to the design guidelines for E-MEM when designing multi-component systems。1 inch=25.4 mm
2. The components are fitted with pressure vessels with nominal inner diameter of 8 inches (203 mm).
Operating limit
Maximum operating temperature | 113℉（45℃） |
Maximum operating pressure | 600 psig（41 bar） |
Maximum pressure drop | 15 psig（1.0 bar） |
pH range, continuous operation | 3-10 |
pH range, short-term cleaning (30 minutes) | 2-12 |
Maximum Influent SDI | 5 |
Free chlorine tolerance | <0.1 ppm |
a When pH > 10, the maximum allowable temperature for continuous operation is 95 ℉ (35 ℃).
b For more information, please refer to the "Cleaning Steps" in the E-MEM Guidance Manual.。?
c Under certain conditions, the presence of free chlorine and other oxidants will lead to premature failure of membranes. Therefore, it is recommended that the membrane be pretreated to remove residual free chlorine before water comes into contact with membranes.
company other products
RO,NF,UF and MBR
| Contact Name: | Mrs. YUN WANG | Contact Email: | sh****n@e-mem.cn |
| Contact Job Title: | Sales Manager | Contact Mob: | 180***392 |
| Contact Tel: | 86-571-86989169 | Contact Fax: | 86-571-89056513 |
| Address: | No.26, Longquan Road, Future SCI-TECH City, Hangzhou City, Zhejiang Province, China. | Website: | www.e-mem.cn |
Hangzhou E-MEM Environmental Technology Co., Ltd, established in 2009, which is a professional RO, NF, UF and MBR separation membrane manufacturer and exporter. It covers an area of 26000sqm and gathers R&D, manufacturing and sales as a whole.
With advanced production equipment and technology, E-MEM reaches two million domestic RO membrane, thirty thousand RO industrial membrane elements and with 30% annual growth of annual production capacity. Certified to NSF and ISO certificate.
E-MEM highly standardized R&D terms provide powerful technical support for the high-performance membrane products. Orderly production lines, careful selection of raw material and strictly quality control system ensure high quality of membrane products. Professional sales and service teams provide individualized pre-sales, sale, after-sales service and win good reputation among Chinese and oversea markets.
E-MEM, warmly welcome you and we are looking forward to building successful business relationships with you in the near future.
