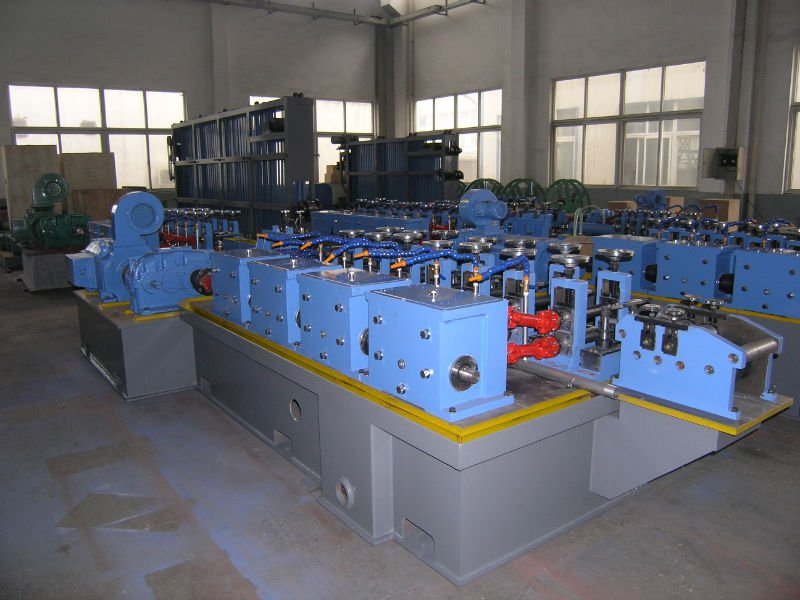

WG32-A High-frequency straight seam iron pipe making machine
Construction & Decoration Building Structural Material
MOQ:4 Set(s)
Payment Method : L/C T/T D/P Wesstern Union
Keywords:Energy Supply Pipe Carbon Steel
| Product Category: | Construction & Decoration > Building Structural Material | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
WG32-A High-frequency straight seam iron pipe making machine :
1.pipe O.D(round):13mm-63.5mm(Φ0.5~ Φ2.5inch)
2.Square pipe:10X10mm-50X50mm
3.Wall thickness:0.5-1.8mm
4.length:4-12m
5.Speed:90m/min
6.Main motor:110Kw
7.H.F welder:150Kw
Craft Flow:
uncoiling→shearing and butt welding→material accumulating→flattening→forming system
→high frequency induction welding machine→inside and outside burr removing frame→
water cooling system→sizing system→leveling system→speed testing→Turkish frame→
saw cutting→running out table
Main components:
| 1 | Uncoiler |
| 2 | Accumulator |
| 3 | Shearing and butt welding machine |
| 4 | Forming machine |
| 5 | Roller System of Forming |
| 6 | Seam Guide |
| 7 | High Frequency Induction Welding Machine |
| 8 | Roller System for Moving |
| 9 | Burr Removing Frame(Inside and outside) |
| 10 | Water cooling system |
| 11 | Sizing machine |
| 12 | Roller System of Leveling |
| 13 | Speed Testing Wheel |
| 14 | Turkish Frame |
| 15 | Auto flying saw controlled by Computer |
| 16 | Run-out table |
| 17 | Electric control Equipment |
| 18 | High frequency welding machine |
Basic necessaries for the Buyer:
| Steel strips | material | Low-carbon steel, low alloy steel:,σs≤345mpa,σb≤610mpa |
| I.D | Φ350~Φ450mm | |
| O.D | Φ600~1000mm | |
| Width | 40~2040mm | |
| Thickness | 0.5-1.8mm | |
| Maximum.weight | ≤1000KGS |
necessary accessories prepared the Buyer :
| 1 | Workshop,Foundation construction |
| 2 | electric appliance work,civil engineering and necessary materials. |
| 3 | Electric connection wires and cables ,pipes(including connectors) from Power supply,air supply,water supply and hydraulic station to each equipment(control table,button station) of the production line |
| 4 | Auxiliary machine :for example lifting equipment,air compressor,air storage tank,water pump,high-pressure pumps for pipe welding machine cooling,cooling water pools for pipe-welding machine and high frequency electric equipment, volume 35m3with water pipe, water pressure meter and valve |
| 5 | Auxiliary parts and low value consumable items :for example:steel strip,welding strip,blades,Lubricating oil, cycle oil, gear box oil test run material, magnetic rod, bearing etc. |
Descriptions:
| Packaging | Sea worthy packing, the mechanical parts are in nude pack, and the electrical arts and the spare parts are simply packed |
| Loading Port | Shanghai |
| Containers.No | Roughly estimated about each 6no of 40GP |
| Type of payments | T/T L/C |
| Lead Time | 90 days after deposit for pipe making machine made in China |
| We are make the products according to the customers.. | |
| Item | Pipe O.D(Round) | Square Pipe | Wall Thickness | Max. Speed | Main Motor | H.F. Welder |
| WG-16 | Φ0.3~ Φ1.0inch (Φ8mm~Φ25mm) | 7×7mm 20×20mm | 0.3 ~ 1.2mm | 100m/Min | 22Kw | 60Kw |
| WG-25 | Φ0.3~ Φ1.2inch (Φ8mm~Φ32mm) | 7×7mm 25×25mm | 0.3 ~ 1.5mm | 90m/Min | 37Kw | 100Kw |
| WG-28 | Φ0.5~ Φ2.0inch (Φ13mm~Φ50mm) | 10×10mm 40×40mm | 0.5 ~ 1.8mm | 90m/Min | 75Kw | 100Kw |
| WG-32 | Φ0.5~ Φ2.5inch (Φ13mm~Φ63.5mm) | 10×10mm 50×50mm | 0.5 ~ 1.8mm | 90m/Min | 110Kw | 150Kw |
| WG-50 | Φ0.8~ Φ3.0inch (Φ20mm~Φ76mm) | 16×16mm 60×60mm | 0.7 ~ 3.0mm | 80m/Min | 132Kw | 200Kw |
| WG-60 | Φ1.2~ Φ4.0inch (Φ32mm~Φ102mm) | 25×25mm 80×80mm | 1.0~ 3.5mm | 70m/Min | 160Kw | 200Kw |
| WG-76 | Φ1.0~ Φ5.0inch (Φ25mm~Φ127mm) | 20×20mm 100×100mm | 1.0~ 3.5mm | 70m/Min | 185Kw | 200Kw |
| WG114 | Φ1.6~ Φ5.0inch (Φ40mm~Φ130mm) | 35×35mm 100×100mm | 1.5~ 5.0mm | 60m/Min | 160Kwx2 | 400Kw |
| WG155 | Φ2.0~ Φ6.0inch (Φ50mm~Φ155mm) | 40×40mm 120×120mm | 1.5~ 5.0mm | 60m/Min | 160Kwx2 | 400Kw |
| WG165 | Φ2.0~ Φ7.6inch (Φ50mm~Φ195mm) | 40×40mm 150×150mm | 2.0~ 6.0mm | 45m/Min | 200Kwx2 | 500Kw |
| WG219 | Φ3.5~ Φ8.60nch (Φ89mm~Φ219mm) | 70×70mm 170×170mm | 4.0~ 8.0mm | 40m/Min | 200Kwx2 | 600Kw |
| WG273 | Φ4.0~ Φ10.7nch (Φ100mm~Φ273mm) | 80×80mm 215×215mm | 4.0~ 12mm | 25m/Min | 320Kwx2 | 800Kw |
| Remark:we have own design teams,we can design the production line as customers’s request | ||||||
