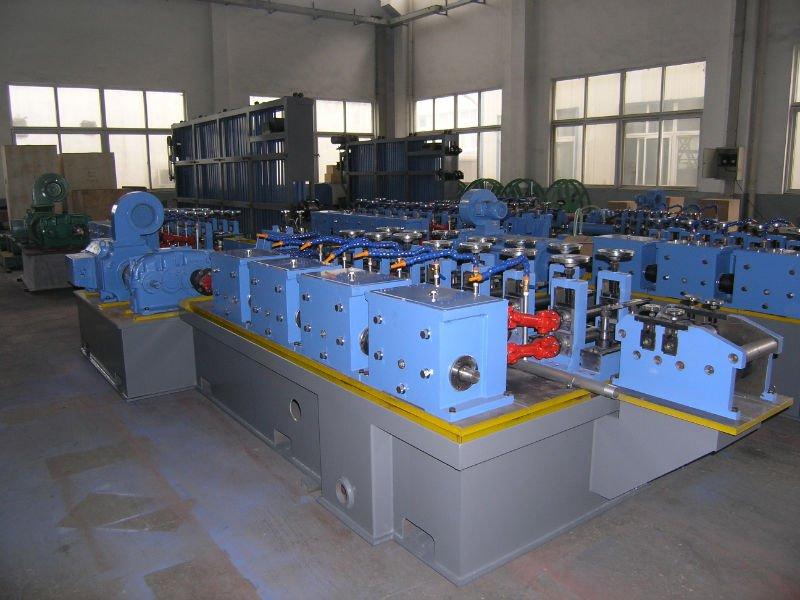

WG32 steel pipe making machine/pipe mill of high-efficiency and low power consumption

Construction & Decoration Building Structural Material

FOB Price:US$ 2,000.00 / Set(s)

MOQ:100 Set(s)

Payment Method : L/C T/T D/P

Keywords: low carbon steel

Add to Favorites

Product Category: Construction & Decoration > Building Structural Material Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghai
Quick Details
  • Application:

  • Energy Supply Pipe
  • Place of Origin:

  • Jiangsu, China
  • Brand Name:

  • Weiguang
  • Model Number:

  • WG32
  • price:

  • competitive
  • Type:

  • Pipe Production Line
  • Pipe Material:

  • low carbon steel
Supply Ability
  • Supply Ability:

  • 100 Set/Sets per Year

Packaging & Delivery
  • Packaging Details

  • simple package

  • Port

  • Shanghai

  • Lead Time :

  • 90 days

Double-head uncoller
  Briefing: Rotary type to change coils easily with a pneumatic brake
  Parameters:
  (1)The max. weight of coil:500kg
  (2)The inside diameter of coil:300-350mm
  (3)The max. outside diameter of coil :1200mm
  (4)The max .width of coil: 110mm
Main drive
   1.The main motor is driven by model Z4-160-11,22kw DC motor
   2.Model ZLY140 speed reducer ,the ratio is 4.2:1
   3. Imported OL DC control device to drag
Material collecting cage
   1.Material:made of angle and channel iron
   2.feeding speed : ≥200m/min
   3.Collecting capacity : ≥400m
Width adjustment
   Range : 22-80mm
Rolls for collecting material
   1. Material: Gcr15
   2.Feeding rolls 115mm,2pieces
   3.Motor: 2.2kw ,1set

Computer-controlled flying saw
A. Power of automatic controller: 7.5kw
B. Automatic tracking machine
1.The max .diameter to be cut :Φ26mm
2.The range of cutting length :4m-7m
3.The max. wall thickness to be cut :1.5mm
C. Type : round metal saw blade:Φ300mm×Φ30mm×Φ3.0mm.

D. Power of the saw: 3kw
E. Accuracy of the cutting length :within±0.33mm
Discharging table
Conveyed on the rolling way ,reversed pneumatically

High-frequency
   1.Model:GP100-0.6-H
   2.Input power: 3P,380V,50HZ
   3.Output power:60kw
   4.Control mode of output power :regulated by microprocessor
   5.High voltage rectifier: 15A
   6.High voltage transformer:3,380V,100KVA
   7.Electronic tube :FU-308S
   8. Transformer of the electronic tube shaking :8V-AC
   9.Anode hydraulic pipe of electronic tube:Polythene reinforcing tube
   10.Capacitor : CCG81-1000P-20KV


Contact Name: Mr Guanglin WANG Contact Email: sa****1@gz.mieevents.com
Contact Job Title: Finance Manager Contact Mob: 188***184
Contact Tel: Contact Fax:
Address: Yangshou Industry Park, Hanjiang, Yangzhou, Jiangsu, China Website: http://www.wgmade.com/en/
Yangzhou Weiguang Metal Products Co., Ltd. is a specialized manufacturer of various kinds of machinery, covering middle and high grade welded pipe making machines, precise stainless steel equipment, a series of machines for refrigeration pipes of refrigerators and ice chests (such as 8mm precise pipe machine, drawing line, annealing line, and plating line), and composite pipe making machines, as well as cold-bend steel equipment in various specifications. Our company possesses two production plants in the east and west region respectively, covering an area of over 35,000 square meters and over 10,000 square meters of the standard building area . We also have staff members of more than 300, among whom 5 are with intermediate and senior technical titles, and 10 are with basic technical titles. Excellent production conditions, well-trained and experienced team members, and first-class facilities provide our company with full assurance to make various kinds of high-grade machinery to meet the increasing requirements of the market. Our company specializes in the manufacture of welded pipes with diameters ranging from 16mm to 165mm. Our company has precision equipment for welded pipes (model No. WG16, WG20, WG32, WG50, WG76, WG114, and WG165) as well as equipment for argon-arc welded stainless steel, cold-bended shaped steel, and cold-rolled strip steel. Our products enjoy a good reputation from customers home and abroad.Our company will always work hard to meet customers' requirements with products of high quality and sophisticated technology and all-around services. Mr. Wang Guanglin, our board chairman, welcomes customers from all over the world to visit us for business negotiation.
