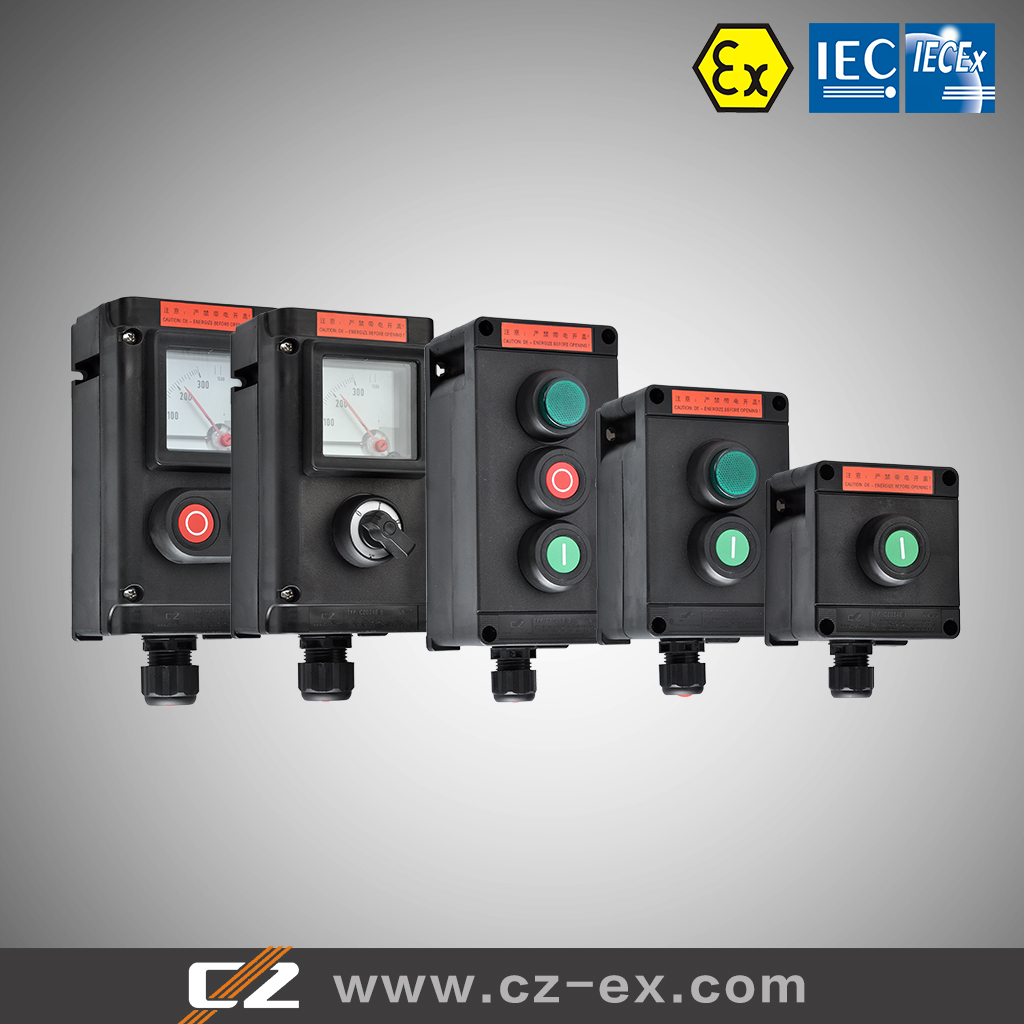

ATEX local control station,explosion proof
Electrical & Electronics Electrical Controls
MOQ:1 Piece(s)
Payment Method : L/C T/T Wesstern Union Others
Keywords:Ex control station
| Product Category: | Electrical & Electronics > Electrical Controls | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai/Ningbo |
| Certification | Ex mark |
| IECEx | Ex de IIC T6 Ex tD A21 T80°C, Ex e II T6 Ex tD A21 T80°C |
| ATEX | Ex II 2GD Ex de IIC T6 Ex tD A21 T80°C; Ex II 2GD Ex e IIC T6 Ex tD A21 T80°C |
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -40°C≤Ta≤+40°C | |
| Degree of protection | IP66 | |
| Material of enclosure | Alloy plastic of static resistance | |
| Rated voltage/current | Max 400V, Max 16A | |
| Component terminal | 2.5 mm2 | |
| PE terminals | 4 mm2 | |
Descriptions:
There are six standard enclosure sizes for options. Each CZ0240/1, CZ0240/2 and CZ0240/3 can be combined together and each CZ0240/4, CZ0240/5 and CZ0240/6 can be combined together, but max. three pieces are together. The enclosure made of static -resistant plastic alloy and the concave-convex joint is designed between cover and body which the slicon rubber bar is sealed between them and it can be mounted even if the cover is closed and sealed.
Built-in explosion-proof components modules are mounted on rails in the enclosure and one cable entry of CZ0240/1, CZ0240/2, CZ0240/3 can be opened on top or at bottom as request. The max. 2 cable entries of CZ0240/4, CZ0240/5, CZ0240/6 can be opened at bottom.
Order specifications:
Outline dimensions:
Cable entry:
CZ0240/1, CZ0240/2, CZ0240/3 Standard configure: Molded plastic 1 x M20, cable outer diameter 5.5-13mm ,
CZ0240/4, CZ0240/5, CZ0240/6 Standard configure: Molded plastic 2 x M25, cable outer diameter 8-17mm .
Mounting way: Pendant mounted type , Vertical mounted type
Other series of CZ0240
Q1. Can I have a sample order for emergency stop button testing?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than .
Q3. Do you have any MOQ limit for emergency stop button order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Q5. How to proceed an emergency stop button order?
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
