Hot Sales Plastic Full Plastic Explosion Proof Electrical Junction Box
Electrical & Power Energy Connectors & Terminals
MOQ:1 Piece(s)
Payment Method : L/C T/T Wesstern Union Paypal
Keywords:Explosion Proof Junction Box Full Plastic Junction box
| Product Category: | Electrical & Power Energy > Connectors & Terminals | Trademark: | CZ |
| Product Package: | Specifications: | ||
| Place of Origin: | China | Port: | Shanghai/Ningbo |

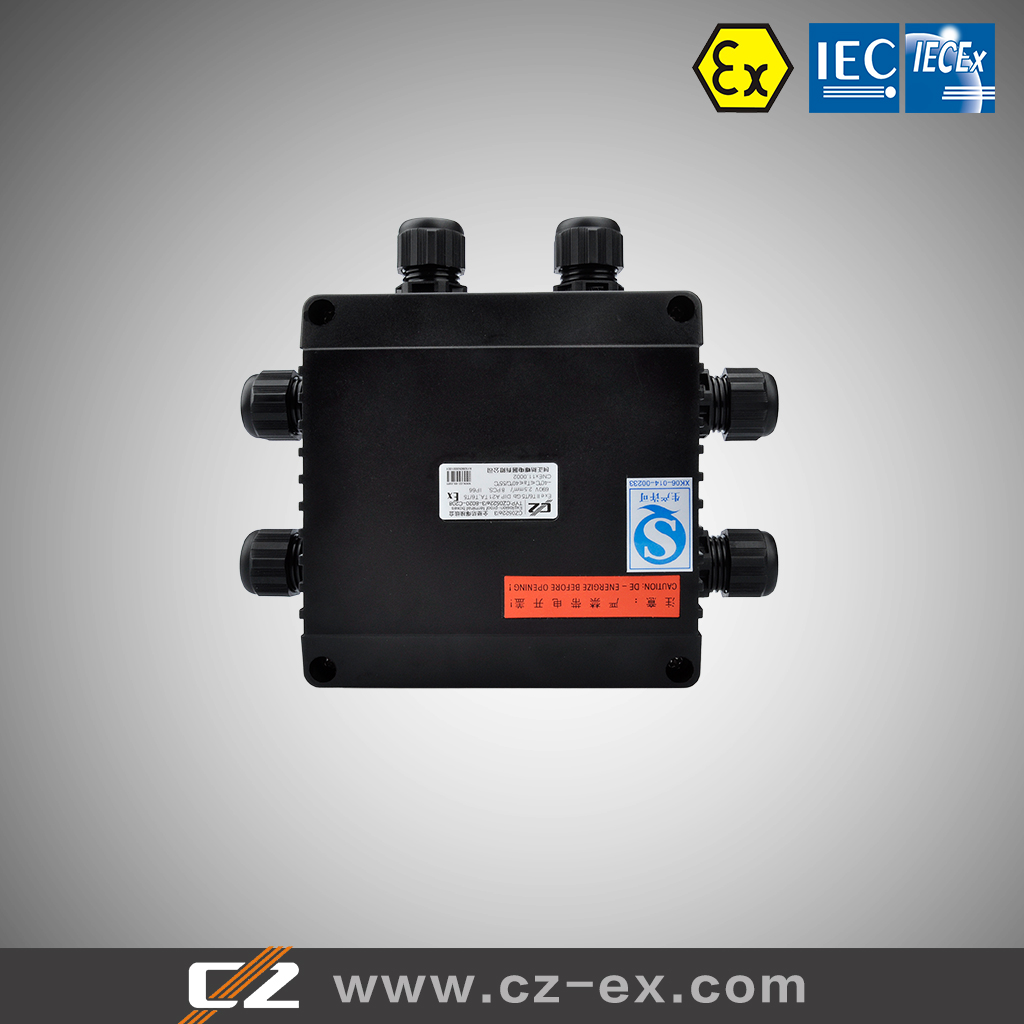

Hot Sales Plastic Full Plastic Explosion Proof Electrical Junction Box
No | Order No. | Product specification | Ex-mark | |
B340 | CZ0522 0000 4000 | Ex e II T6 DIP A21 TA,T6
| ||
B341 | CZ0522 4025 4001 |
Moulded plastic cable gland | 4×M25
| |
B342 | CZ0522 4032 4002 | 4×M32
| ||
B343 | CZ0522 6025 4003 | 6×M25
| ||
B344 | CZ0522 6032 4004 | 6×M32
| ||
B345 | CZ0522 6225 4005 | 6×M25
| ||
B346 | CZ0522 6232 4006 | 6×M32
| ||
B347 | CZ0522 8025 4007 | 8×M25 | ||
B348 | CZ0522 8032 4008 | 8×M25 | ||
Main technical data:
Ex-mark: Ex eT6 DIP A21 TA, T6
Intended use: Can be used in zone 1 and zone 2
Can be used in zone 21 and zone 22
Degree of protection: IP66
Ambient temperature use: -40≤Ta≤55 (40)
Rated Voltage: AC 690V
Terminal: 8× 4~6 mm2 + 1 PE
Cross section of terminal: 4mm2/25A
6mm2/32A
Material: Alloy plastic of static resistence
A practical enclosure is designed that the cable can connect to terminals from different direction.
The size of cable inlet is M20, M25 and M32.
Cable glands can be selected according to requirements
| Contact Name: | Mr Yongpeng Jin | Contact Email: | cz****h@cz-ex.com |
| Contact Job Title: | Manager | Contact Mob: | 158***596 |
| Contact Tel: | +86-573-83883599 | Contact Fax: | +86-573-83883986 |
| Address: | No.1 Qixing Rd,Qixing Town, Nanhu District, Jiaxing,Zhejiang.P.R. China | Website: | www.cz-ex.com |
CZ is the largest enterprise based on production, sales and research of plastic explosion-proof electric apparatuses and explosion-proof light fittings. The serial products covering from explosion-proof components to control system integration. CZ is the first to pass the international certification ATEX, IECEx, TUV and ISO9001 among domestic. Products exported to over 30 countries, like Russia, Brazil, UAE, Germany, Singapore, UAE etc.
