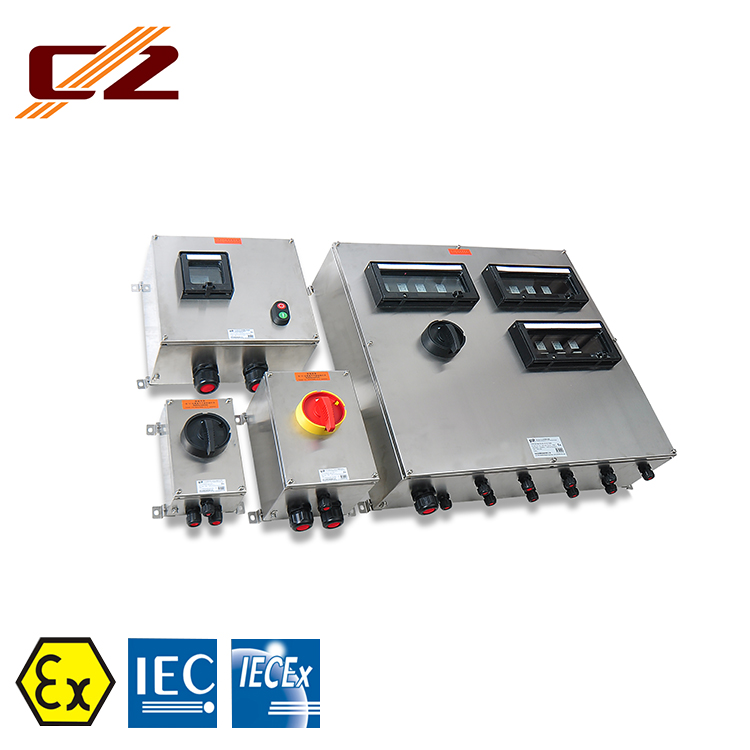

CZ1390 10, 30, 300mA IP66 Explosion Proof Electrical Power Distribution Board Box
Electrical & Power Energy Power Supplies
MOQ:1 Piece(s)
Payment Method : L/C T/T Wesstern Union Paypal
Keywords: Ex Distribution Board box Ex DB Explosion proof Distribution box
| Product Category: | Electrical & Power Energy > Power Supplies | Trademark: | CZ |
| Product Package: | Specifications: | ||
| Place of Origin: | China | Port: | Shanghai/Ningbo |
| Certification | Ex mark |
| IECEx | Ex de IIC T5/T6 Ex tb IIIC T5/T6 Db |
| ATEX |  II 2GD Ex de IIC T5/T6Gb Ex tb IIIC T5/T6 Db |
| Intended use | zone1 and zone2 zone21 and zone22 | |
| Ambient temperature | -20°C ~ +40°C/+55°C(IIC),-40°C~ +40°C/+55°C(IIB) | |
| Degree of protection | IP66 | |
| Material of enclosure | 304 (On the surface of wire drawing processing) 316L (On the surface of wire drawing processing) | |
| Rated on-off capacity | 6kA, 10kA | |
| Rated voltage | 250/400V; 50/60Hz | |
| Rated remained action current | 10, 30, 300mA | |
| Main switch | CZ0513 Explosion-proof load isolation switch module Maximum current is 40A, 80A, 180A | |
| Branch circuit | CZ0511-BL Explosion-proof breaker module Maximum current is 40A | |
Descriptions:
The enclosure of explosionproof distribution box is made of 304 or 316L, can be used in hazardous industrial areas. It has characters of high anti-corrosion ,waterproof and dust proof.Therefore they satisfy the requirements inchemical ,petroleum and sea industries.
It is used for distributing and overhauling of single phaseillumination and 3 phase power system in the circuit of 50/60Hz, voltage 230/400V. Different distribution systems may be combined according to the requirements. Combinations, the explosionproof distributionboxes may be designed as user's special requirements.
Modular design.
Transparent operation window make operation convenient.
There is an operation mechanism on the panel.
The Ex module inside has been IECEx and ATEX certified.
Order specifications of illumination boxes:
illumination boxes(with electrical leakage protection):
Distribution boxes(with stocket)
Electrical principal diagram:
Outline dimensions:
Q1. Can I have a sample order for testing?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 20 sets.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
