lead extruder

Manufacturing & Processing Machinery Industrial Processing Machinery

FOB Price:US$ Customizable price / Set(s)

MOQ:1 Set(s)

Payment Method : Others

Keywords:extruder lead extruder lead

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Industrial Processing Machinery Trademark:
Product Package: Specifications:
Place of Origin: Port: shanghia China

Product Description:

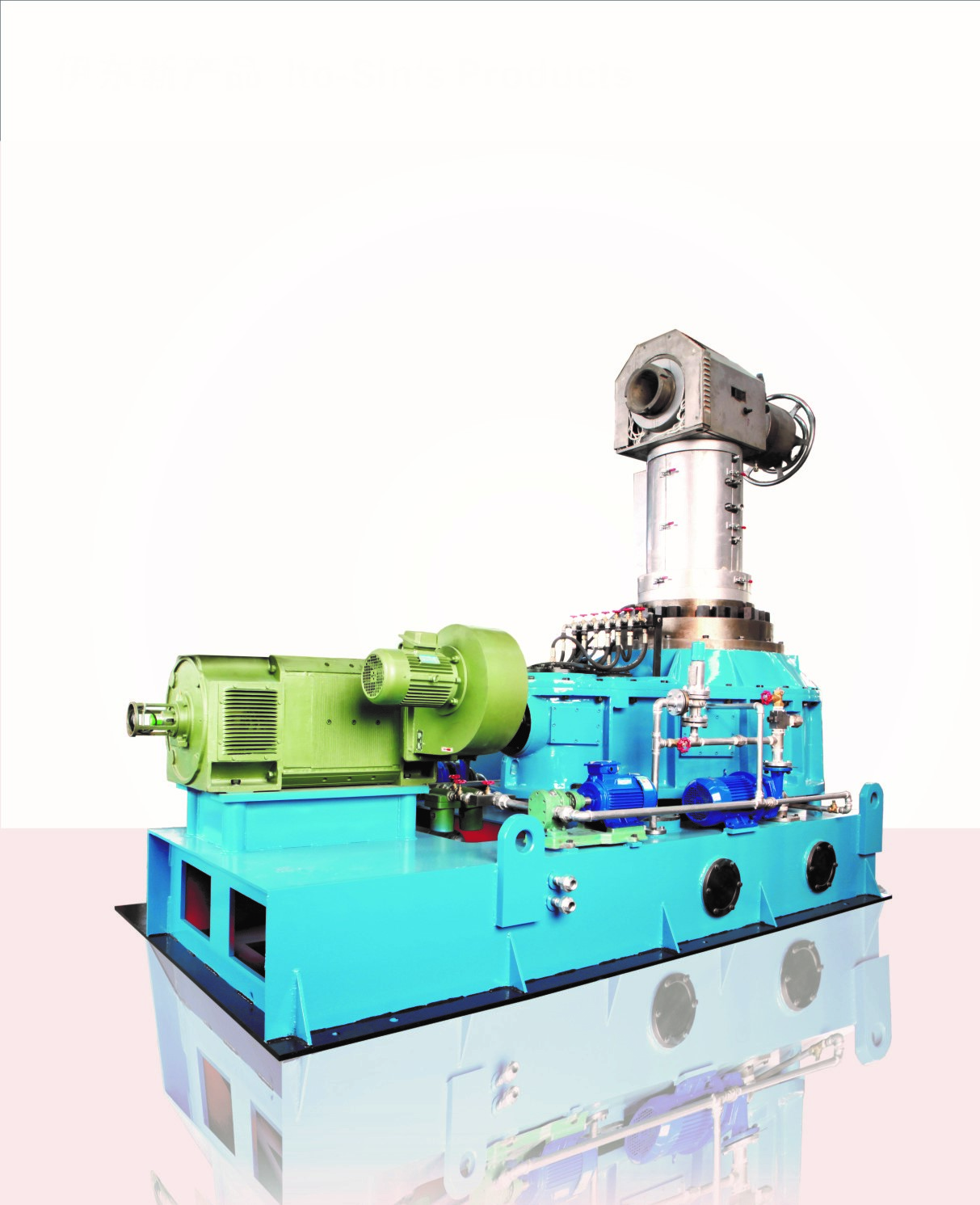

This Lead Extrusion Machine realizes continuous extruding through lead transporting by rotating screw rod. Thickness of sheathing lead can be ensured to be equal in vertical direction. In design, to control each part's temperature strictly makes each part's temperature and extruding pressure near to be invariable. This ensures thickness of sheathing lead can be controlled in the least tolerance range.


Features:

1. Outer diameter of lead layer can be made between Ф40 andФ160mm, to  be achieved by two sets of extruding modules, one at diameter of Ф20~Ф80mm, another one at Ф40~Ф110mm. Users can choose either of them.

2. With a screw to feed lead, it is possible to achieve continuous extrusion, so thickness of lead layer keeps constant and even in longitudinal direction.

3. In addition, unique design for strict control of temperature in every section makes temperature and extrusion pressure constant at each section. Thus thickness of lead layer can be controlled within a minimal common difference.

4. Consumption of lead is 10% less than that of intermittent lead pressing machine.

5. Environment friendly design. The melting furnace, the purifying & holding furnace, and lead conveyor all work in an enclosed system. In addition, as temperature of molten lead is relatively low, distribution of steam is greatly minimized.

6. A small area is needed for the machine, which is easy to operate, low in labor intensity, as only two operators are needed for the machine.


In 2003, Ito-sin(DeYang) Wire & Cable Equipment Co.,Ltd. was awarded the certificate of quality administration system issued by Britain DAS authority and the certificate of quality administration system approved by Britain UKAS authority. In 2005, it was approved by the international wire & cable association as one of the standing members.


Application and composition:


1. Lead wire extruder is used to apply lead sheathing to cables or vulcanize rubber tube for the production of cables.

2. It consists of lead ingot roller conveyor and loading device, lead flake conveyor, 18 ton lead melting furnace, 10 ton purification maintaining furnace, lead extruder, lead stripper, moving pay-off stand, moving take-up stand and electrical equipment, No. 1 die holder or No. 2 die holder.



Contact Name: Miss wu lily Contact Email: wj****l@ito-sin.cn
Contact Job Title: Commercial Manager Contact Mob: 135***099
Contact Tel: Contact Fax:
Address: 德阳市八角工业园区桂江街757# Website: http://www.ito-sin.cn/
Situated in the national manufacturing base of the heavy machinery, Ito-sin(DeYang) Wire & Cable Equipment Co., Ltd. with its investment from a Singapore industrial private company, is a professional manufacturer for wire and cable equipment. After a long-term development of technological research, Ito-sin embodies the capability of developing and manufacturing complete sets of wire and cable equipment. So far, Ito-sin main products include 30 kinds of machines, which involves series of copper, aluminium, alloy aluminium drawing machines, series of copper. aluminium and alloy aluminium continuous casting & rolling lines, upward casting production line for oxygen-free copper rod, frame strander, tubular strander and so on. These products are not only well sold in the domestic market, but also exported to more than 10 foreign countries, such as Chile, Ukraine, Mexico,Iran, Pakistan, Thailand,Vietnam,Singapore and so on. Since its foundation, the company receives quite a lot of praises from the pertinent uthories of finance, industry and commerce and tax. In 2003, it was awarded the certificate of quality administration system issued by Britain DAS authority and the certificate of quality administration system approved by Britain UKAS authority. In 2005, it was approved by the international wire & cable association as one of the standing members. Owning two dedicated manufacturing bases separately in Sichuan Deyang and Shanghai Jinshan, the company has a panel of experienced engineers, high-class administration personnel and skillful technical forces. By exploiting the advanced international administration concept and management principle, the company enjoys a good fame among a great multitude of competent competent competitors due to its high-quality products and excellent after-sale service as well as unique corporate culture and famous brand. Adhesive to the principle of taking customers demands as the first, the company will serve its esteemed clienteles home.
