Home Surveillance Security Waterproof Wireless Camera HD IP Camera Night Vision CCTV Camera
Security & Protection CCTV Products
FOB Price:US$ 90.00 / Piece(s)
MOQ:1 Piece(s)
Payment Method : L/C T/T Wesstern Union Paypal
Keywords:Home Surveillance Security Waterproof Wireless Camera Camera Night Vision CCTV Camera
| Product Category: | Security & Protection > CCTV Products | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
Basic Info.
Model NO.
TSC620-H-LA1-1H-R4-3
Kind
Manual Focus Lens
Certification
CE, FCC, CCC, RoHS, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition
Effective Distance
100m
Sensor Size
1/3 inch
Remote Control
Without Remote Control
Coding
H.264
Trademark
Tsinglink
Transport Package
Carton
Specification
27*18*13cm
Origin
Hefei, Anhui
HS Code
8525801390

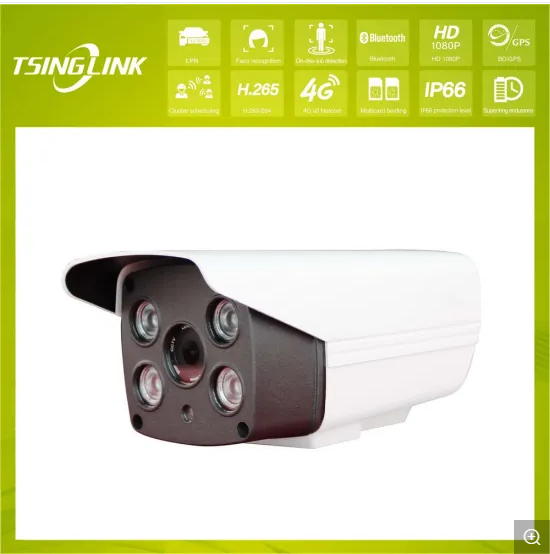

4G HD IR waterproof bullet network camera is a product that includes modules of HD camera, IR lighting lamps, video encoding, wireless transmission, local storage, etc. It applies to the indoor or outdoor occasions where there is no method to wiring or costly for wiring but high definition image quality is required meanwhile, such as road, warehouse, building site, greenhouse, pipeline, garden, etc. Key Features - Effective pixels: 1.4 /2.1/4.0 megapixels, 25f@1280*1024, 25f@1920*1080, 25f@2688*1520 - 6mm /6-22mm manual focusing lens, min. illumination: 0.01Lux - 2 /4 array IR lighting lamps, 60m/100m IR distance - Support dual stream - Intelligent mode: 3D noise reduction, digital WDR, lens correction, defogging, corridor surveillance - Support 4G wireless video transmission - Support DC12V power supply - Support Tsinglink iCVS cloud video management platform and iCAP protocol -Support audio and alarm input /output |
Specifications
| Video | |
| Coding | H.264 |
| Sensor | 1/3" SONY EXMOR CMOS Progressive scanning |
| Day /Night Mode | Support automatic color to black |
| Resolution | 1080P/720P/D1 |
| Frame Rate | 1~25 fps adjustable |
| Stream | Support double stream,64kbps~6Mbps adjustable |
| Output | Support 1 channel CVBS output |
| Image automatic adjustment | Auto exposure(AEC),Auto White Balance(AWB),Automatic gain(AGC) |
| Image Adjustment | Color saturation, Bright, Contrast, Tone, Sharpness, Gamma |
| Audio | |
| Input | Support one channel (optional) |
| Output | Support one channel (optional) |
| Storage | |
| Recording Format | AVI |
| SD card | Support micro SD card storage |
| IR | |
| IR distance | 60m(double lamps)-100m(4 lamps) |
| Wireless Net | |
| 3G/4G Net | WCDMA,EVDO,TD-SCDMA, TDD-LTE,FDD-LTE |
| Interface | |
| Wired Net | Support 1 channel |
| Power Supply | |
| Input | 12V |
| General | |
| Size | 342mm(L)×108mm(W)×76mm(H) |
| Installation Way | Wall /Ceiling installation |
| Working Temp./Humidity | -20oC~50oC, 10%~90% |
Factory
Office
Exhibition
1. Are you a factory or a trading company? We are professional factory with nearly two decades experience, with 4000 square meters workshop and over 150 employees. We have the independent right to operate import and export to provide service to overseas customers directly, so there's no need to pay additional commission to agency and we could skip some steps to save more time. We have our own research and development of terminal and platform software, customization and secondary development is welcomed. Tsinglink has independent brand and provide OEM, ODM production as well. 2. What is your pricing strategy? Discount will be provided upon large quantity. For overseas markets, we will offer competitive price to support long-standing customers and distributors. 3. What is your minimum order quantity? Our minimum order quantity is 10 pcs for each model, but we accept small order as trial order. 4. How could I get a sample? Sample fee and freight charge will be listed on sample PI. Once our finance team confirms received your payment, sample and tracking number will be sent. 5. What's the payment terms? We accept TT (Telegraphic Transfer), Western Union etc as payment term for small order and L/C for larger order. 6. What's the delivery time? Usually 7-15 working days after received payment, but it depends on the order quantity. Estimated delivery time will be informed by sales before final payment. 7. What type of shipment will you use? We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea. 8. How about quality control? ISO systems help our factory improve management level, ERP system can help us control the cost of procurement links effectively, so we can provide competitive price, new test equipments can do uninterrupted fatigue testing to ensure products using life. Pre-shipment inspection and third-party supervision are available. 9. Do you have agency for after-sales service? Sure. Our sales will instruct the installation of products and software. Please feel free to contact us if you meet any technical questions, we will help you work it out. 10. How can I be your sole-distributor? We have special policy for sole-distributor. Please contact our sales to get related files. Any further questions, welcome to contact our sales. |
