100L Small capacity essential oil steam distillation equipment for flowers
Agricultural Agricultural Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram
Keywords:
| Product Category: | Agricultural > Agricultural Machinery | Trademark: | HDC |
| Product Package: | Wooden Case | Specifications: | Depend on the Product Model |
| Place of Origin: | China | Port: | Shanghai |
100L Small capacity essential oil steam distillation equipment for flowers
Product introduction
Essential oil steam distillation,advanced and Continuously improving .We had specialized in essential oil extracting technology and equipment for more than 30 years,serviced for thousands of customers all over the world.we hope to bring customers extraordinary experience and sincerely hope to serve you.
Application of essential oil distillation equipment:
This essential oil distillation equipment is popular,famous,advanced and with top quality in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.
Main advantage of essential oil distillation equipment
(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.

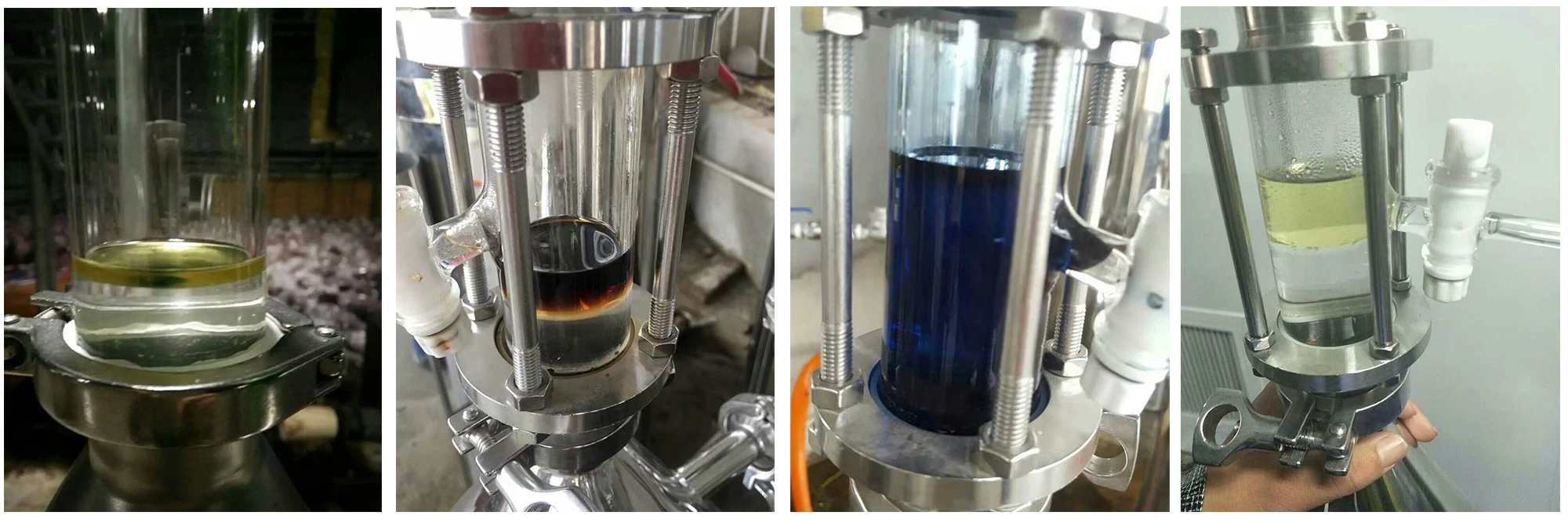

Oil quality
| Model | 100L | |
| Distillation kettle volume L | 100 | |
| Kettle inside design pressure Mpa | 0.09 | |
| Heating area m2 | 0.7 | |
| condenser system m2 (condenser +cooler) | 0.87 | |
| Feed port diameter(mm) | 196 | |
| Oil-water separator(fermentor)L | 8 | |
| Equipment floor area | Length | 950 |
| Width | 650 | |
| Height | 2100 | |
| E vaporation capacity (kg/h) | 10 | |

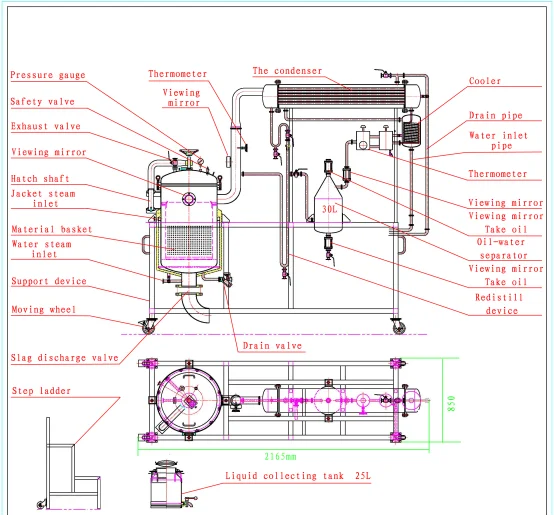

Machine Structure
The device consists of distillation kettle, material basket, jacket heating layer, insulation layer, demister, condensing tower,re-distillation column, rectifier, oil-water separator, Electric steam
boiler, filter and other related pipelines composition.
1, Distillation equipment are made of S30408 stainless steel, equipment, surface polishing Ra ≤ 0.6μm, outer surface matte treatment Ra ≤ 0.8μm, to ensure that no health dead ends, meet GMP requirements.
2, Include control box, manhole, cleaning ball, the water inlet, depending on the light mouth, sight glass, spare mouth, pressure gauge interface, thermometer interface, return port, outlet, through steam mouth and other related fittings.

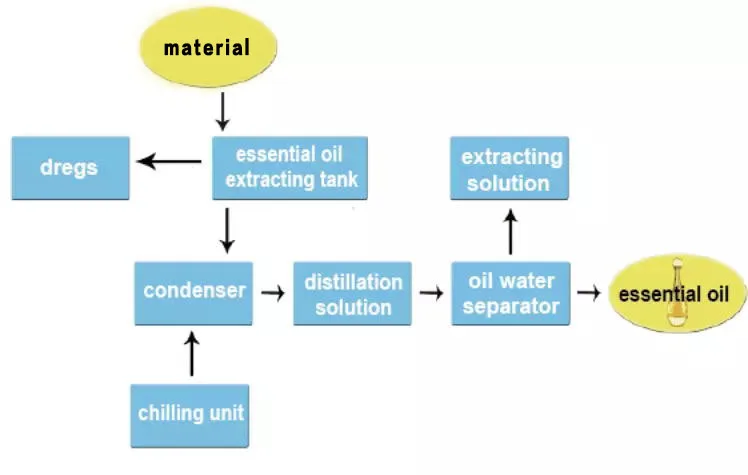

Flow Chart
No. | Equipment Name | Model | Main parameters |
| 1 | Essential oil distillation equipment | 100L | 1, Structure: The device consists of distillation kettle, material basket, jacket heating layer, insulation layer, demister, condensing tower, re-distillation column, rectifier, oil-water separator, Electric steam boiler, filter and other related pipelines composition. 2, Distillation kettle: Max volume 150L, effective volume 100L, material basket volume 80L, use jacket heating and steam direct heating, heat exchange area more 1m2 Kettle inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120℃,work temperature≤100℃. Working medium:water; Jacket layer inside: Material Aluminium silicate, thickness 50mm Slag discharge door:Manual slag door, DN100; Insulation layer: Material Aluminium silicate, thickness 50mm 3, Demister: Size Φ102×500, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements. 4, Condensing tower: Vertical condenser. Heat transfer area is greater than 2m2. Pipeline: designed pressure: normal pressure;working pressure: normal Pressure; design temperature: 100℃, work temperature≤100℃. Working medium:Secondary steam. Length: Φ25×2; Shell: designed pressure: 0.3Mpa,working pressure: normal pressure; design temperature: 80℃,work temperature: 15~30℃. Working medium: cooling water. 5,Pure dew storage tank: 304 stainless steel production, volume 25L. 6, Oil-water separator: the special oil-water separator, stainless steel tank, glass as the cup, tank volume is 30L. 7, Filter: 120 mesh filter, flow 2.0m3 / h, material for the S30408. 8, Electric steam boiler: 380v, 50Hz, adjustable 6-18kw, steam temperature: 120℃/100℃, steam production: 26kg/h, working pressure: 0.4 ~ 0.6MPa, cable cross-sectional area: 10m2, water pressure: 0.4MPa. 9, Accessories: S30408 stainless steel bracket, a thermometer, a pressure gauge, a mirror.
|

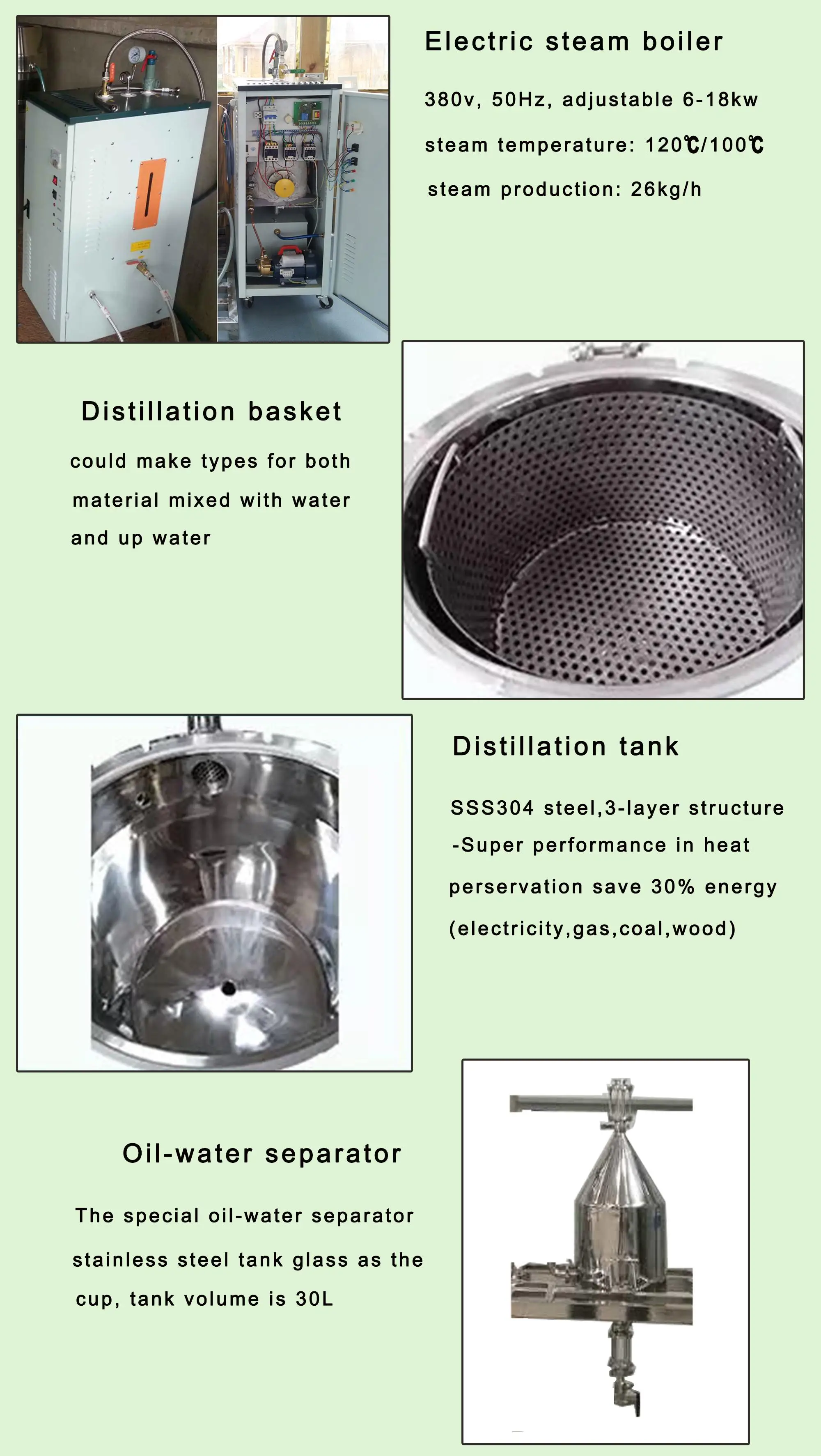

Detailed show
Raw material
| Flowers | Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage;achillea millefolium; osmanthus; peony; marigold;l aurel; |
| Leaves | Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil. |
| Roots | Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor. |
| Grasses | Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose. |
| Wood | Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras. |
| Resins | Frankincense; myrrh; benzoin; fir tree; amyris; Elemi. |
| Bark | Cinnamon. |
| Citrus | Bergamot; grapefruit; lemon; orange; lime; tangerine |
| Seeds | Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; capsicum ; fennel. |
2.Production capacity per batch
Q:What is the oil yield?
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.
Q:Can I use the machine to extract several kinds of raw materials?
Yes,of course.
Q:Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your Reference.
Q:What heating way does your machine support?
Electricity/gas/wood/steam heating.
Q:What is your material of your machine?
Stainless steel(Standard type is SUS304,it can be customized according to your request)
Q:How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.
Q:What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you a discount.
Q:Do you have machines in stock?
No,our machine is produced according to your request.
