Efficiency Squirrel Cage Rotor Speed Control Three Phase AC Electric Electromagnetic Brake Motor

Auto,Parts & Accessories Automotive & Parts

FOB Price:US$ 50.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : L/C T/T D/P Wesstern Union Paypal

Keywords: Efficiency Squirrel Cage Rotor  Speed Control  Three Phase  AC Electric  Electromagnetic  Brake Motor

Add to Favorites

Product Category: Auto,Parts & Accessories > Automotive & Parts Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai

Basic Info.

Model NO.
YEJ280M1-2 0.75KW
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, Ce
Brand
Wannan Motor
Frame Size
80mm-315mm
Output
0.18kw-220kw
Poles
2.4.6.8.10
Duty
S1
Insulation
F
Efficiency
Ie1
Cooling
IC411-Tefc
Protection Degree
IP55 (Motor) & IP23 (Brake)
Voltage
380V, or Customized
Frequency
50Hz, 60Hz
Terminal Box
Top, Right Side, Left Side
Frame
Cast Iron
Service Factor
1.0
Mounting Type
B3, B5, B35
Ambient Temperature
40°c, 1000 M. a.S.L
Trademark
WNM
Transport Package
Carton/Wooden Case/Pallet
Specification
1485*635*855MM
Origin
Anhui, China
HS Code
8501520000

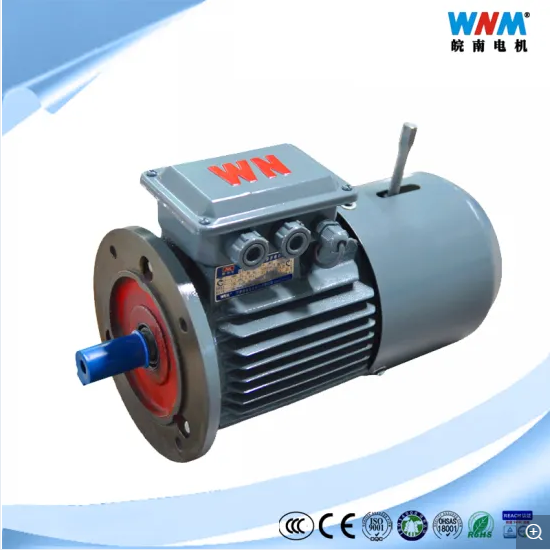

Yej2 IEC High Efficiency Squirrel Cage Rotor Speed Control Three Phase AC Electric Electromagnetic Brake Motor IP55 F 0.18~220kw for conveyors
---------------------------------------------------------------------------------------------

Applications
Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.


General Description
  • Frame sizes: 80 to 315

  • Rated output: 0.18 to 220kW

  • Voltage: 380V

  • Frequency: 50Hz

  • Efficiency levels: IE1

  • Enclosure: IC411 - TEFC

  • Degree of protection: IP55 (motor) & IP23 (brake)

  • Braking mode: Power failure brake

  • Rectification code: One-half period rectification

Features
Electromagnetic brake, fast braking, energy saving, simple structure, exact position.

Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole

Mounting
Conventional mounting type and suitable frame size are given in following table(with "√")
Framebasic typederived type
B3B5B35V1V3V5V6B6B7B8V15V36B14B34V18
80~112
132~160---
180~280-----------
315------------
If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.
