Siemens China High Efficiency 3 Phase Low Voltage Induction Cast Iron AC Electric Motors
Auto,Parts & Accessories Automotive & Parts
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal
Keywords:Siemens China High Efficiency 3 Phase Low Voltage Induction Cast Iron AC Electric Motors
| Product Category: | Auto,Parts & Accessories > Automotive & Parts | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Foshan |
Basic Info.
Siemens China High Efficiency 3 Phase Low Voltage Induction Cast Iron AC Electric Motors
Motor Summary
| Frame size | 80- 355 |
| Pole | 2-8 |
| Rated voltage | 220/380V, 380/660V |
| Frequency | 50Hz/60Hz |
| Power | 0.55kw-315Kw |
| Protection degree | IP55 |
| Cooling method | IC411 |
| Insulation class | F |
| Ambient Temperature | -20°C~40°C |
| Altitude | not exceed 1000 Meter |
| Working Duty | S1(Continuous) |
Overview

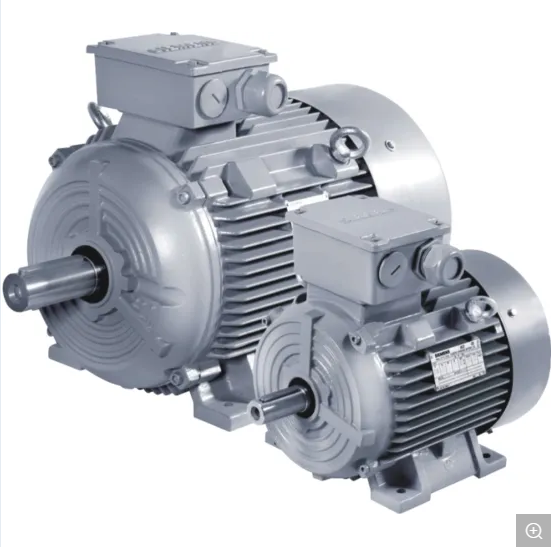

SIMOTICS GP 1LE0001 series of high efficiency 3 phase asynchronous motors (1LE0001 series motor)
with cast iron housing is Totally Enclosed Fan Cooled (TEFC)
with IP55 environmental protection,
and applicable for general purpose use.
These motors are designed and manufactured in accordance with ISO, IEC standards, GB standards.
By switching to 1LE0001 series motor, customer can save energy up to 10 %!
Features of 1LE0001 series siemens motor
Frame material: grey cast iron.
Standard color: stone grey (RAL 7030)
Available in 2, 4, 6 pole motor (0.75kW and up) with efficiency grade 3. according to GB18613-2012 and efficiency class IE2.
Optimized compact style construction.
Standard mounting construction according to IEC 60034-7: IM B3, IM B5, IM B35 and etc.
All motors are designed to IP55 degree of protection (IEC 60034-5).
Regreasing devices for FS280~355 as standard,and for FS100~250 as option.
Reinforced bearings for increased cantilever forces for FS100 ~ 355 as option.
Winding protections with PTC, PT100 and KTY84-130 as option.
Insulation system is designed for temperature class 155 (F). At rated output with line-fed operation, the motors can be used in temperature class 130 (B).
Environmental
| Degrees of motor protection IP55 (IEC 60034-5). | ||
| Altitude shall not exceed 1000m above sea-level (IEC 60034-1). | ||
| Allowed air temperature between -20 oC and 40 oC (IEC 60034-1). | ||
| Permitted relative humidity: | ||
| ? -20 oC ≤ T ≤ 20 oC:100 % | ||
| ? 20 oC < T ≤ 30 oC:95 % | ||
| ? 30 oC < T ≤ 40 oC:55 % | ||
Application Industry
Packaging
Lingyi Office and Team
FAQ
Q: What is your MOQ of this item?
A: 5PCS.
For the first time cooperation, we accept trial sample order.
Q: What's your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: What's the delivery time?
A: 30-45 days after receiving your L/C or T/T deposit.
Q: How long is your warranty?
A: 12 months after receiving B/L.
