6YL-68 screw oil presser for castor seed/groundnut oil press machine/palm kernel oil expeller
Agricultural Agricultural Machinery
MOQ:1 Set(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram
Keywords:oil presser oil pressing machine oil mill oil milling machine oil processing machine oil making machine oil extraction machine oil extractor oil extract oil expeller
| Product Category: | Agricultural > Agricultural Machinery | Trademark: | HDC |
| Product Package: | Wooden Case | Specifications: | 880*440*770mm |
| Place of Origin: | China | Port: | Shanghai |

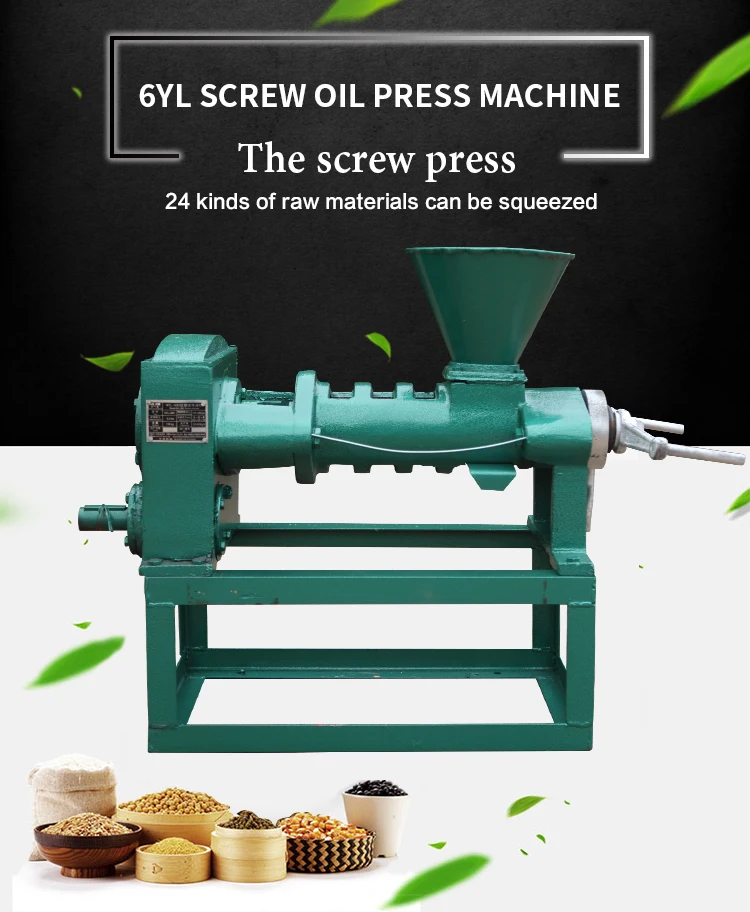

6YL-68 screw oil presser for castor seed/groundnut oil press machine/palm kernel oil expeller
Production introduction:
6YL-68 Screw Oil Press Machine characterized by its simple design, small volume and lightweight, easy to handle and move.This machine is able
to extract oil from various of vegetable oil materials, the machine can be used for cold pressing as well as hot pressing, highly productive, easy for
operating ,low labor intensity and high economical profit ,which also has less noise and a high rate of oil output, hence, it is welcome by customers.
Working structure:

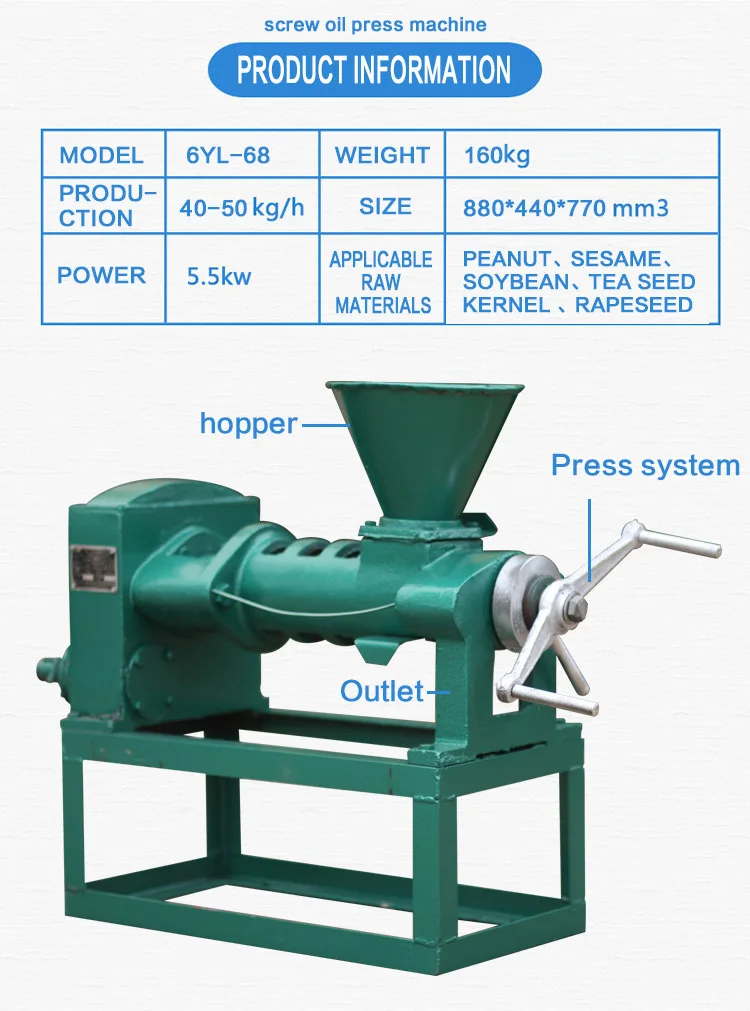

6YL-68 Screw oil press machine is mainly composed of 6 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, control part . All the parts are assembled on the frame and screwed as a whole.
Working principle:
6YL-68 oil making machine is a screw type pressing machine that is capable of extracting oil within a caged barrel-like cavity. Usually, raw material enters it from the feeder. Then, the machine utilizes strong frication and continuous pressure to compress the raw material. After compression, the oil will come out from a small oil outlet. More importantly, the seed fiber solids and other larger impurities can't pass through the small oil outlet. And, the extracted seeds will be pressed into hardened oil cake and discharged from your oil making machine.

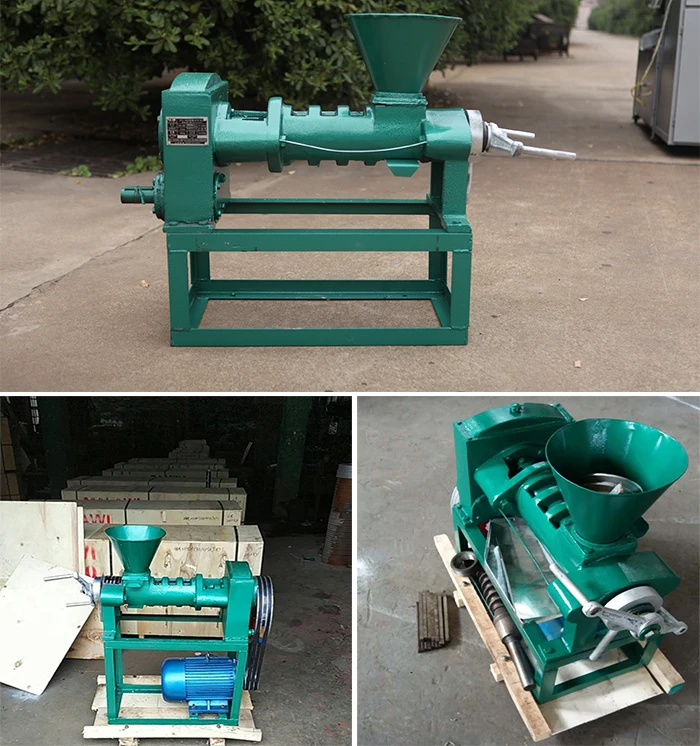

Product display:

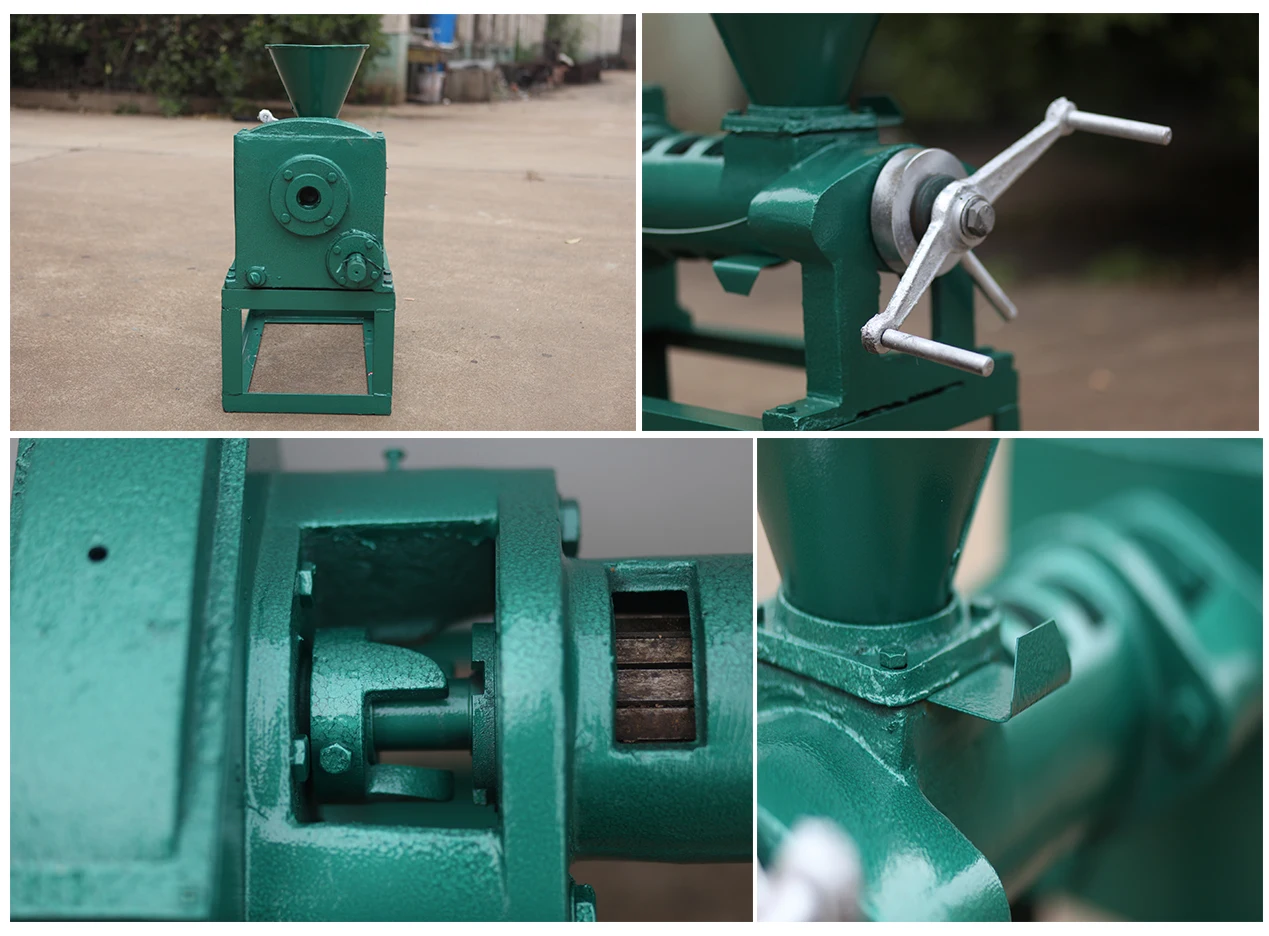

Details show:
Warm prompt: For daily convenient use, 6YL-68 Screw oil press machine are offen equipped with auxiliary tools, such as electric motor, diesel engine, elevator or other tools.
Applications:
Although 6YL-68 Screw oil press machine is small in size, it boasts superior oil making capacity.It can be used for various materials such as Peanuts, Rape seeds, Sesame seeds, Soybeans, cottonseeds, Tea seeds, Tung Tree seeds, Sunflower seeds, Palm kernel, Coconut meat, Corn germ, Rice bran, Almonds, Black cumin, Cacao beans, Coffee beans, Hazelnuts, Hemp seed, Jatropha, Jojoba, Linseed, Mustard seeds, Black seeds, Palm nuts, Poppy seeds, Pumpkin seeds, Shea nuts, Walnuts,etc.
Technical parameters:
Model | Capacity | Power | Electric machinery | Packing size(mm) | Gross and net weight (kg) |
6YL-68 oil press machine | 40-50Kg/h | 5.5KW | 380V/50HZ/Triple phase | 880*440*770 | 160/140 |
6YL-80 oil press machine | 80-150Kg/h | 5.5KW | 380V/50HZ/Triple phase | 1510*440*700 | 350/330 |
6YL-95/100 oil press machine | 150-200Kg/h | 7.5KW | 380V/50HZ/Triple phase | 1910*550*765 | 450/420 |
6YL-120 oil press machine | 200-300Kg/h | 11KW | 380V/50HZ/Triple phase | 2100*630*770 | 530/500 |
6YL-130 oil press machine | 300-400Kg/h | 15KW | 380V/50HZ/Triple phase | 2280*700*780 | 780/750 |
6YL-160 oil press machine | 400-600Kg/h | 18.5KW | 380V/50HZ/Triple phase | 2050*600*850 | 950/900 |
Why choose HDC oil press machine?
Packing & Delivery
1.Delivery: Ship
2.Port: Qingdao,Wuhan,Shanghai
3.Packaging Details: Plywood, international standard trade packing.
FAQ
Q1: What is the Warranty for the machines?
A1: 1 year for free.
Q2: What is the Material?
A2: Stainless steel and carbon steel.
Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.
Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.
Q5: How to ask quotation?
A5: Please note us what tpye of raw seeds , and how many tons of raw seeds you want to treat per day, then we will send you quotation as soon as we can.
Q6:Does the screw oil press need to be heated?
A6:Yes, it does.Preheat with dry oil cake for 30 minutes before feeding seeds normally.
Q7: How many people are required to operate this screw oil press?
A7: 1-2 people can operate.
