Access Panel XC-APA-013

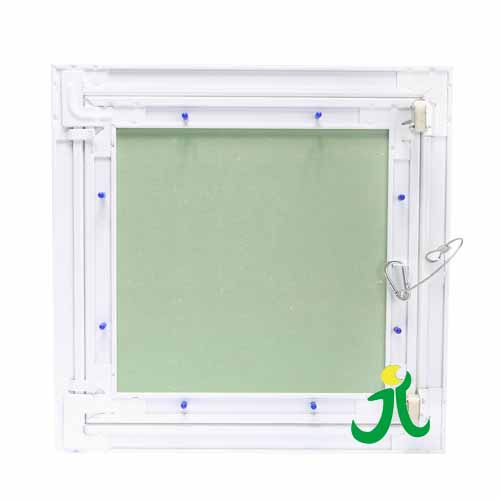

XC-APA-013 access panel is extruded aluminum profile with seal strips, with top high quality push lock, and with safety string hook.

Features of Aluminum Access Panel

1. Strong aluminum frame with white seal strips which for dust proof and sound barrier.

2. High quality push(snap) lock

3. White powder coated finish frame if request

4. Inner door removable.

5. Clean, continuous surfaces without visible hardware after treated and install on the ceilings and walls.

6. Easy open and close, quick installation.

Standard Specification

1. Available in ceiling or drywall maintainance panel

2. 12.5 mm aluminum profile and strong hardware

3. White powder coated finish

4. With sealing strips between inner and outer frames

5. Concealed snap lock, push open

6. 12.5mm moisture resistant gypsum board inlay optional: 12.5mm and 15mm moisture resistant gypsum board inlay

7. Removable door panel with safety

8. Quick installation without difficulty

9. Standard size: 20x20cm, 30x30cm, 40x40cm, 45x45cm, 50x50cm, 60x60cm, 60x120cm

10. Customized size and color are available

11. Package:2pc/box, then put into pallet is available.

Standard Sizes (Special Sizes Available Upon Request)

FAQ

Q1: Are you a factory or trading company?

A: We are a professional Industrial and Trading Company, have more than 10 years production experiences.

Q2: Could you provide some samples?
A: We will be happy to send you free existing samples if you need check the quality.

Q3: How does your factory do regarding quality control?

A:"Quality is priority." We always attach great importance to quality controlling from the beginning to the end.

Q4: What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Packing, Storage, Transportation, Service

Color box, label, special box, carton and pallet can be provided according to customer request.

Our warehouse is dry and clean, goods are well kept. The container can be loaded directly into our factory.

Sometimes per customer’s request, we help them souring some goods, or customer purchase by themselves.

These out-side purchased items can group together with ourselves produced item and keep in our warehouse, and loading together.

Installation Steps

1. Fix the position and draw the correct size on the plasterboard.
2. Drill a rough hole matching the access hole on the plasterboard;
3. Place the access hole at the rough hole;
4. Fix the first fastener/screw to the frame, check and align with the hole, and then apply the second screw;
5. Open the door several times to check the flexibility;
6. Put multiple screws on the frame;
7. Especially the corner must be marked with screws;
8. The installation is complete;
9. Close the access port;
