Video Measurement System Optical Machine for Hardware (VMS-3020G)
Tools,Hardware & Instruments Measuring Instruments
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram
Keywords:Optical Machine for Hardware
| Product Category: | Tools,Hardware & Instruments > Measuring Instruments | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shenzhen |

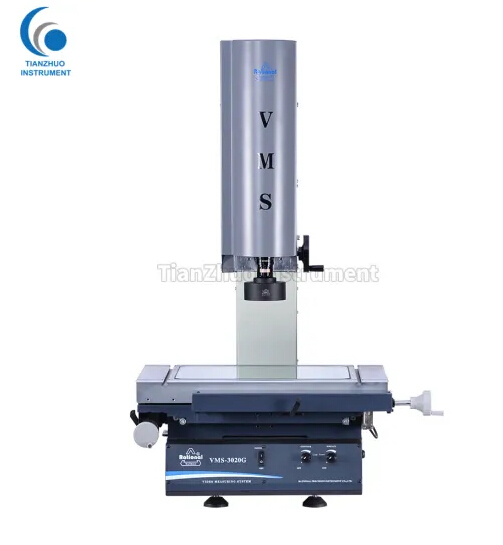

Video Measurement System Optical Machine for Hardware (VMS-3020G)
PRODUCT INTRODUCTION
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, it's a high precision and high efficiency measuring machine with good quality and reliability .
Widely used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
FEATURES
1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. Detects the measured workpiece's specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
SPECIFICATIONS
| Working Table | Model | VMS-1510G/ VMS-1510F | VMS-2010G/ VMS-2010F | VMS-2515G/ VMS-2515F | VMS-3020G/ VMS-3020F | VMS-4030G/ VMS-4030F |
| Metal table size (mm) | 354×228 | 404×228 | 450×280 | 500×330 | 606×466 | |
| Travel (mm) | 150×100 | 200×100 | 250×150 | 300×200 | 400×300 | |
| Z-axis travel (mm) | 200 (can be customized to 400) | |||||
| Consistency error of origin in different sections | G series: E0≤30 (every 100mm displacement in Z axis); F series: E0≤20 (every 100mm displacement in Z axis) | |||||
| Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm) | ||||||
| Video System | F Series | G Series | ||||
| GIGE Color Camera | 1/3"color CCD camera | |||||
| Auto zoom lens magnification: 0.58X~7.5X | Auto zoom lens magnification: 0.7X~4.5X | |||||
| Magnification: 27.4~351.3X(24"display) | Magnification: 26.6~171X | |||||
| Object view: 14mm~1.4mm | Object view: 8.1mm~1.3m | |||||
| Surface lighting and transmission lighting both adopt adjustable LED | ||||||
PRODUCT PHOTOS
