Metal Crusher Paper Wood Plastic Machine Single Shaft Shredder for (BH1500)
Manufacturing & Processing Machinery Plastic,Rubber Machinery & Moulds
FOB Price:US$ 15,000.00 / Roll(s)
MOQ:1 Roll(s)
Payment Method : L/C T/T
Keywords:Crusher
| Product Category: | Manufacturing & Processing Machinery > Plastic,Rubber Machinery & Moulds | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Guangzhou |

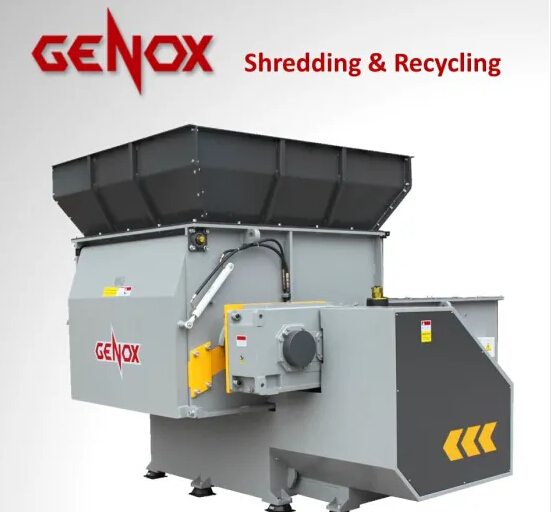

GENOX Single Shaft Shredders
BEHEMOTH Series Single Shaft Shredders are heavy duty size reduction machines
suitable for processing a wide range of materials. These shredders are ideal for
especially hard and voluminous products. The large shredding chamber and loading
hopper capacity, combined with the PLC controlled horizontal RAM pusher ensures
optimum feeding of material to the rotor therefore achieving the most efficient
performance. Throughputs typically range between1, 500kg/hr 12, 000kg/hr+
depending on the model, material type and application as below:
suitable for processing a wide range of materials. These shredders are ideal for
especially hard and voluminous products. The large shredding chamber and loading
hopper capacity, combined with the PLC controlled horizontal RAM pusher ensures
optimum feeding of material to the rotor therefore achieving the most efficient
performance. Throughputs typically range between1, 500kg/hr 12, 000kg/hr+
depending on the model, material type and application as below:
· Plastics Mouldings, Purgings/Lump, Profiles, Films etc.
· Timber/Wood Pallets, Joiners Waste, Green Waste etc.
· Paper & Cardboard Confidential Documents, Production Waste, Packaging Materials etc.
· Copper Cable Household, Telecoms and Industrial Cables including S. W. A
· Aluminum Used Beverage Cans (UBC's), Swarf, Cables etc.
· Textiles Carpet (Rolls & Tiles), Garments etc.
· Security Destruction Counterfeit Items, Faulty Goods, Out of Date Stock etc.
· Foam Production Waste etc.
· Mixed Household & Commercial Waste RDF/SRF Production
Specification
| Model series | BH1500 | BH2000 |
| Feed opening (LXW)(mm) | 1500X1675 | 2000X1675 |
| Ram(mm) | 760 | 760 |
| Rotor diameter(mm) | 480 | 480 |
| Speed(r/min) | 80 | 80 |
| Screen (mm) | 40-100 | 40-100 |
| Rotor knives (pcs) | 84 | 95 |
| Counter knives (pcs) | 6 | 8 |
| Motor power (kw) | 90 | 55+55 |
| Hydraulic power (kw) | 11 | 11 |
| Weight (kg) | Approx 10200 | Approx 13800 |
| Dimension (LXWXH)(mm) | 3630X2870X2630 | 3630X4260X2630 |
Standard Features
· Energy Efficient + Maximum Cutting Force & Productivity
· Shock Absorbing Gearbox reduces Stress on Drive Components
· Rotor Knives can be rotated and used on several edges before replacement.
· Long Life Counter Knives can be adjusted to maintain cutter clearance
· Quick Change Screens for accurate particle size control
· Segmented Shredding Chamber Floor with Brass Guides & PU Slides
· Twin Speed Hydraulics with integrated air cooler
· Stand Alone Electrical Control Panel with Siemens PLC Control System
· Tested, Approved and Certified to the applicable CE safety standards
![]()
Certification
We awarded 50 utility model patents and 3 invention patents.
![]()
![]()
![]()
Certification
We awarded 50 utility model patents and 3 invention patents.
