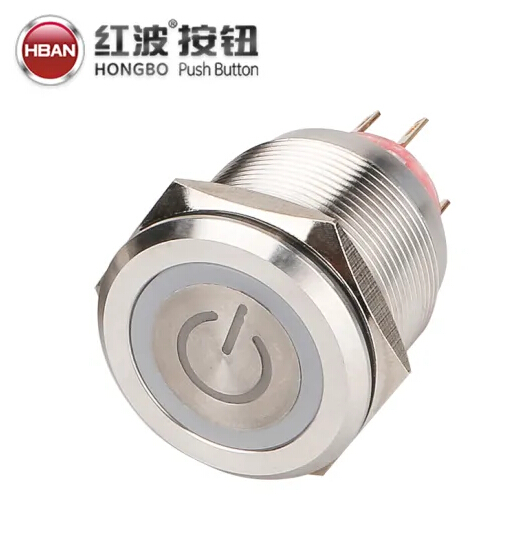

25mm Hbs1-Agq25-Et/S IP67 Metal Industrial Push Button Switch with LED

Electrical & Power Energy Electrical Switches & Supplies

FOB Price:US$ 4.76 / Piece(s)

MOQ:20 Piece(s)

Payment Method : T/T Wesstern Union Paypal Money Gram

Keywords:Switch

Add to Favorites

Product Category: Electrical & Power Energy > Electrical Switches & Supplies Trademark:
Product Package: Specifications:
Place of Origin: Port: Shanghai

25mm Hbs1-Agq-22es 19mm IP67 Metal Industrial Push Button Switch with LED

Product Description








Parameter

Metal Push Button Switch With Led
Mounting hole size :25mm
Switch value:5A/250V AC
Operation type:Momentary, Latching
Contact configuration:1NO1NC,2NO2NC
Hear shape:Flat
Crust material:Stainless Steel
Terminal type:Pin terminal
Electrical life :≥50,000 times
Mechanical life:≥1,000,000 times
Operation temperature:-40oC~+80oC
Contact Resistance:≤50mΩ
Insulation Resistance:≥1000mΩ
Operation stroke:3mm
IP Class:IP67
Contact material:Silver alloy
Illumination type:Ring illumination and illuminated Power symbol
Led color:Red Green Blue Orange White Yellow (One led)
Led voltage:2V(3V),5V(6V),12V,24V,36V,110V,220V
Led life:50,000 hours
