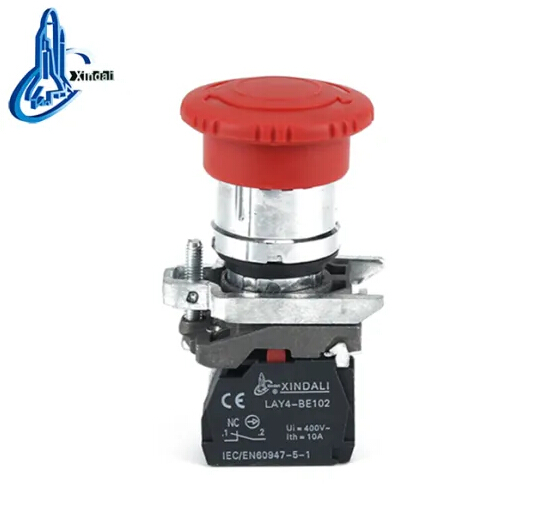

Lay4-BS542 Mushroom 22mm Metal Switch Emergency Stop Push Button

Electrical & Power Energy Electrical Switches & Supplies

FOB Price:US$ 1.27 / Piece(s)

MOQ:1200 Piece(s)

Payment Method : L/C T/T Wesstern Union Paypal

Keywords:Switch

Add to Favorites

Product Category: Electrical & Power Energy > Electrical Switches & Supplies Trademark:
Product Package: Specifications:
Place of Origin: Port: Ningbo
Product Description



Product Application

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
Main technical parameter
Basic technical parameter of button
Basic technical parameter of signal lamp
Rated insulation
AC 600V(50Hz/60Hz)
Insulation resistance
≥50MΩ
Conventional heating current
10A
Contact resistance
≤25MinΩ
Insulation resistance
≥50MΩ
Pf withstand voltage
AC 2.5KV/min
Contact resistance
≤25MinΩ
Voltage wave
±20%
Mechanical life
100x10000
pushbutton
50x10000
selector switch
Brightness
60cd/m2
Electrical life
500x10000
pushbutton
25x10000
Selector switch
Continuous working life
10x10000h




Main Features

1)Surrounding temperature:-25oC~+55oC
2) Air relative humidity:≤85%
3) It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h:
4) Pollution grade is III,installation sort is III,protection grade is up to IP65.

5) Altitude:≤2000m
