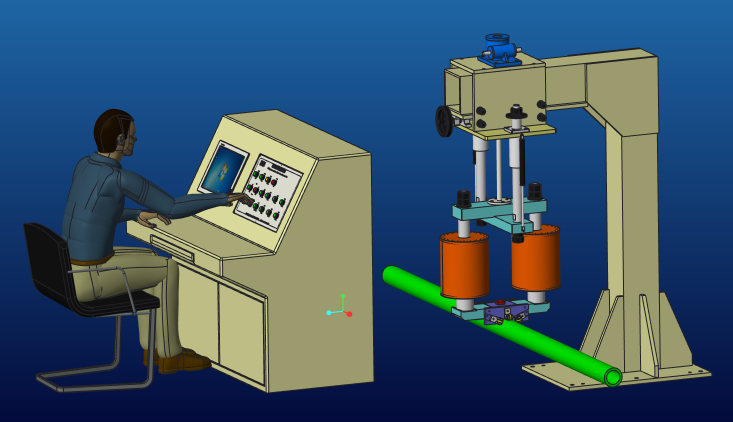

MFL-551 Magnetic Flux Leakage Detector for Ferromagnetic Welded Pipe

Manufacturing & Processing Machinery Pipeline Engineering & Equipment

FOB Price:US$ 36,000.00 / Piece(s)

MOQ:1 Piece(s)

Payment Method : T/T

Keywords:Magnetic fluxleakage flaw detector

Add to Favorites

Product Category: Manufacturing & Processing Machinery > Pipeline Engineering & Equipment Trademark: BKN
Product Package: Wooden case Specifications: Customized
Place of Origin: China Port: Shanghai

Magnetic flux leakage detection means that after the ferromagnetic material is magnetized, a magnetic flux leakage field is formed on the inner and outer surfaces due to defects of the iron pipe. One can detect defects by detecting changes in the magnetic flux leakage field.

1.Ambient temperature:-10℃40℃.                        2.Ambient temperature10%85%

3.Probe form:Differential coil or magnetoresistive element       4.Gain 99dB continuously adjustable

5.Detection channel :2                                    6.High pass:1Hz2000Hz step1Hz

7.Low pass1Hz2000Hz step1Hz                        8.Inhibition:0%100%

9.Warning level1%100%                              10.Scrap level:1%100%

11.Detection speed:0300m/min                           12.Blind zone setting :110000ms

13.Power supply:AC110V/220V adjustable



Contact Name: Miss Hui Li Contact Email: li****i@bknzdh.com
Contact Job Title: Export Manager Contact Mob: 182***927
Contact Tel: 18225861927 Contact Fax: 025-52244350
Address: 3-102, No.1 Hengyi Road, Qixia District, Nanjing City Website: http://www.bkneddy.com/
Nanjing BKN Automation System Co., Ltd., originated from the eddy current testing laboratory of the Nanjing University of Technology. It is an eddy current testing benchmark enterprise and has long been committed to the development and production of bearing hardness and crack eddy current screening equipment. Our products are widely used in aerospace, electricity, petroleum, natural gas, metallurgical machinery, and automotive industries and we have high proprietory intellectual property rights patent technology. Our products are exported to USA, Russia, Singapore, Thailand, India, Hongkong, Taiwan, Yemen, Kazakhstan, Iran, Japan, Korea, Brazil. BKN has formed a social scientific research cooperation network with well-known universities and research institutes in China, which has a strong R&D and production capacity. It guarantees the leading and word-class technology position of BKN industrial nondestructive testing technology. BKN adheres to the concept of specialization, refinement, and strength, focusing on stainless steel pipe on-line and off-line automatic flaw detection, and has achieved good results in this field and become leaders in the industry. The eddy current sorting machine is the company's flagship product, suitable for rapid sorting of bearing cracks, mixing, hardness deviation, burns. The whole system consists of four parts: testing equipment, testing probe, mechanical and electrical. Realize automatic detection of defects, automatic sorting, automatic alarm. BKN is a high-tech enterprise in China, an outstanding private technology enterprise in Jiangsu Province, a AAA credit enterprise of Bank of China, and a national innovation leader brand. Our company integrates technology, industry, trade, and integration, has advanced production equipment, excellent research and development team,
