1kw home solar energy system with built in pwm solar controller
Electrical & Power Energy Solar Power System
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram Others
Keywords:solar power system home solar energy system solar panel home power system
| Product Category: | Electrical & Power Energy > Solar Power System | Trademark: | BR SOLAR |
| Product Package: | 555*385*220mm | Specifications: | 1KW |
| Place of Origin: | CHINA | Port: | Shanghai |

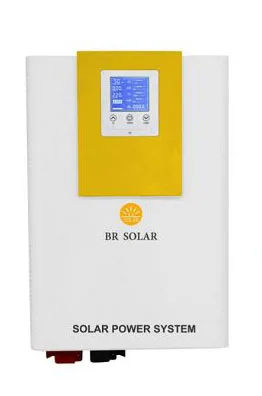

 | Off grid solar inverter&controller
inverter > Pure sine wave output Low frequency toroidal lower loss(50/60HZ±1%) > Brand new wide LCD screen,clearly and precisely shows working data > Three-stage charging:Constant current,condtant voltage,float charge(220VAC±2%) > Three Types Working modes;Battery type selectable > Added fault code query function,easy to monitor the operation in real time > Supports RS232 or RS485 communication port > QTY: 1PC controller >Built-in 30A controller >pure sine wave, high frequency output >support grid/Diesel input |

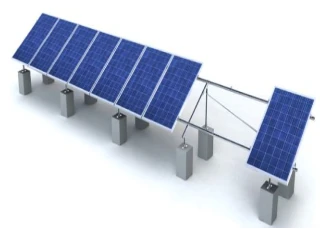

Solar Mounting System > Customized for :Rooftop(Flat/Pitched) Ground .Carport etc > Adjustable tile angle from 0 to 65 > QTY: 1PC
|
|

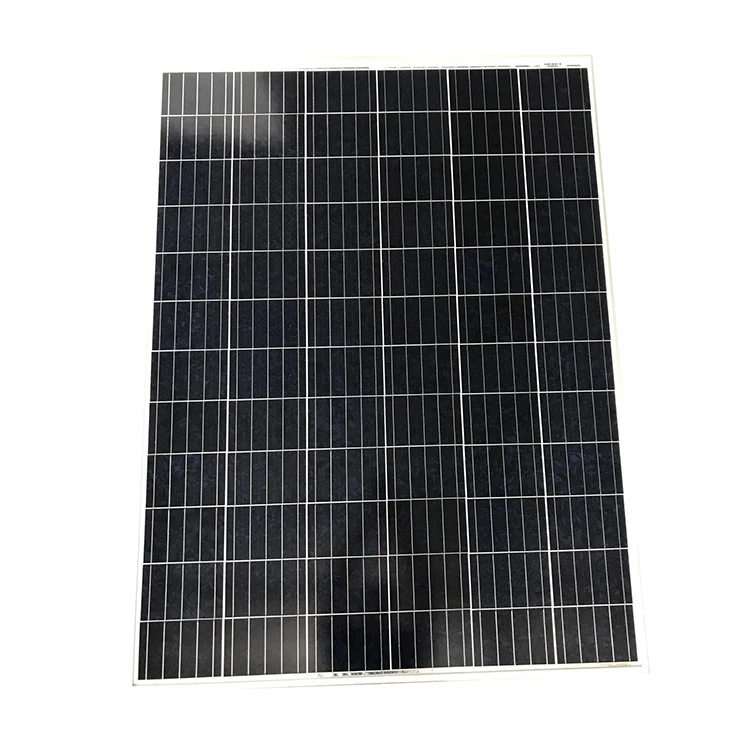

 | Solar Panel > Optional Mono/Poly Panels > 25 years Warranty > Excellent mechanical load resistance > PID Resistant,High salt and ammonia resistance > QTY: 4PCS |
Battery
> Capacity: 200AH/12V > QTY: 2PCS |  |
| Specification | |||||||
| Model:AS | 10224-30 | 20248-30 | 30248-50 | 40248-60 | 50296-50 | 60296-50 | |
| Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Battery Voltage | 24VDC | 48VDC | 48/96VDC | 96VDC | |||
| Size(L*W*Hmm) | 470*316*130 | 620*400*181 | |||||
| Packing Size(L*W*Hmm) | 555*385*220 | 700*485*181 | |||||
| N.W.(kg) | 10.5 | 21 | 24 | 25 | 26 | 30 | |
| G.W.(kg)(Carton Packing) | 12 | 23 | 26 | 27 | 28 | 32 | |
| Parameter | |||||||
| Input | DC Input Voltage Range | 10.5-15VDC(singe battery Voltage) | |||||
| AC Input Voltage Range | 145VAC-275VAC | ||||||
| AC Input Frequency Range | 45HZ-65HZ | ||||||
| Output | Effciency | ≥85% | |||||
| Output Voltage(Battery Mode) | 220VAC±2% | ||||||
| Output Frequency(Battery Mode) | 50/60HZ±1% | ||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||
| AC Output Voltage Range | 220VAC±10% | ||||||
| AC Output Frequency Range | Tracking Automatically | ||||||
| Inside Solar controller(Optional) | Charging Mode | PWM | |||||
| Charging current | 30A | 30A | 50A | 60A | 50A | 50A | |
| PV Input Voltage Range | 30V-44V | 60V-88V | 60V-88V | 60V-88V | 120V-176V | 120V-176V | |
| Max PV Input Voltage(At 25℃) | 50V | 100V | 100V | 100V | 200V | 200V | |
| PV Array Maximum Power | 840W | 1680W | 2800W | 3360W | 5600W | 5600W | |
| Working Mode | Battery First/AC First/Saving Energy Mode | ||||||
| AC Charging current(selectable) | 0-30A | ||||||
| Transfer Time | ≤4ms | ||||||
| Display | LCD | ||||||
| Thermal method | Cooling fan in intelligent control | ||||||
| Battery Type(selectable) | LEAD | Charge Voltage:14V;Float Voltage:13.8V(Single battery voltage,x2 for 24V;x4 for 48V) | |||||
| OP-LE | Charge Voltage:14V;Float Voltage:13.8V(Single battery voltage,x2 for 24V;x4 for 48V) | ||||||
| LITHIUM | Charge Voltage:13V;Float Voltage:13.8V(Single battery voltage,x2 for 24V;x4 for 48V) | ||||||
| Remark | The charging parameters of other types battery can be user-defined | ||||||
| Protection | Over-load/Over-discharge/Short circuit/High temperayure/Reverse polarity | ||||||
| Communication | RS232/RS485(Optional) | ||||||
Product guidance
Q1: Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 5-7 days, mass production,Depend on the quantity
Q3: Are you a factory or a trading company?
A: We are the factory with high production capacity and product range of solar products in China. Welcome to visit us anytime.
Q4: How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL, UPS, FedEx ,TNT etc. It usually takes 7-10 days to arrive. Airline and sea shipping also optional .
Q5: What is your Warranty Policy?
A: We offer 3 to 5 years warranty for the entire system and replace with new ones for free in case of quality problems.
