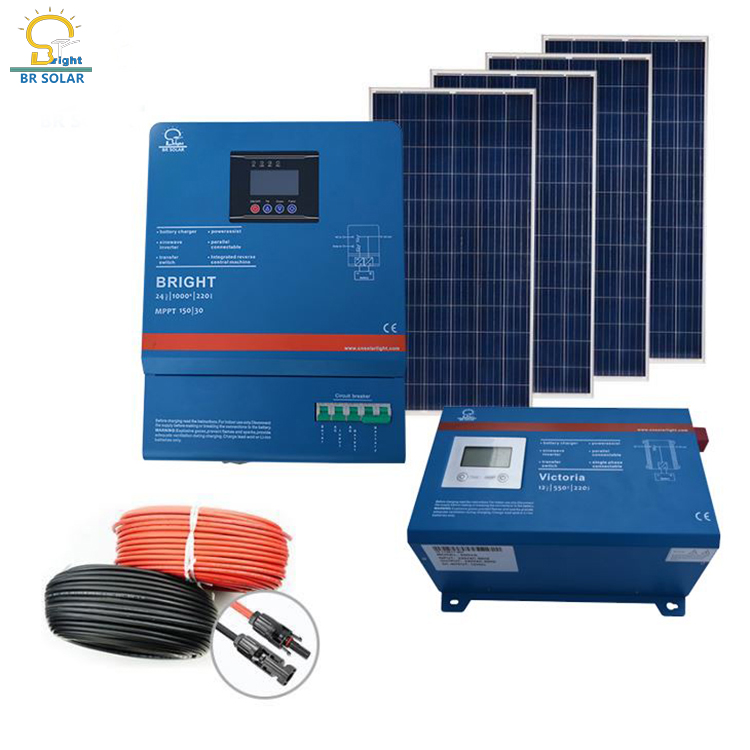

5kw solar panel off grid systems for home
Electrical & Power Energy Solar Power System
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram Others
Keywords:solar system solar panel home system solar home systems
| Product Category: | Electrical & Power Energy > Solar Power System | Trademark: | BR SOLAR |
| Product Package: | 635*535*252mm | Specifications: | 5kw |
| Place of Origin: | CHINA | Port: | Shanghai |

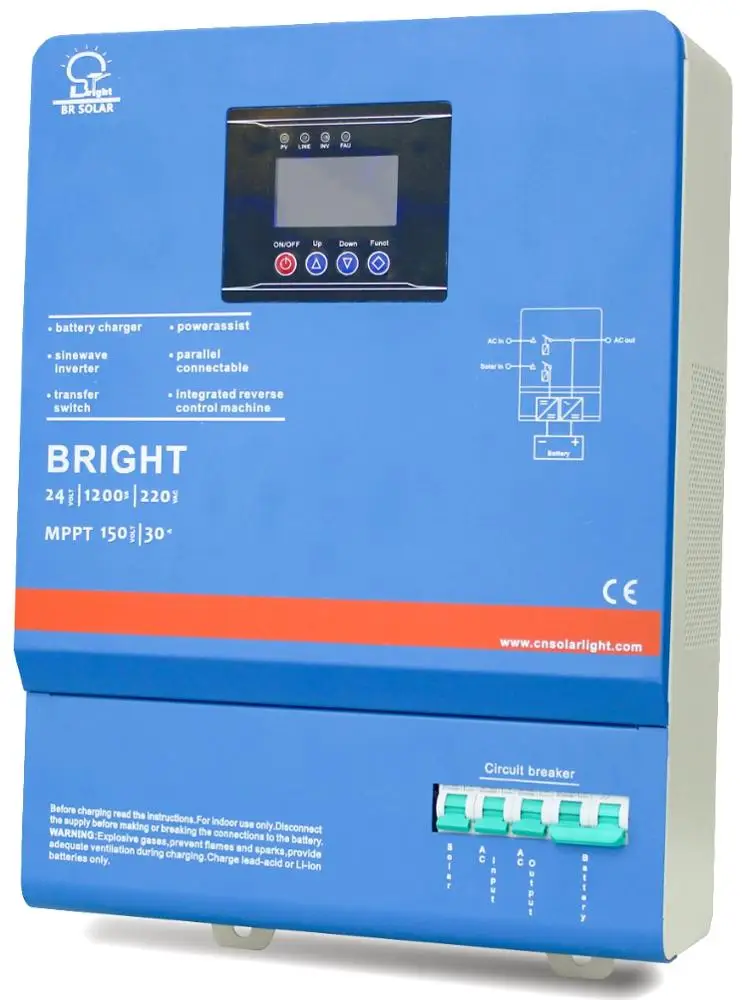

 | Off grid solar inverter&controller > Name: BR-5K-48V-60A(MPPT)BR48V-60A > Specification: Inverter With Built-in 50A Controller,DC48V-AC220V > Remarks:1. AC Input & AC Output: 220VAC. 2. Support grid/Diesel Input. 3. Pure sine wave, power frequency output. > QTY: 1PC
|
Panel Rack > Name: Slope Rooftop or Flat rooftop Including Complete Fittings > Specification: Wind load:55m/s, Snow load:1.5kn/m2 Structure:Anodized Aluminum+ Stainless Steel, Angle Adjustable (Customized Rack Is Available ) > QTY: 1SET
|
|

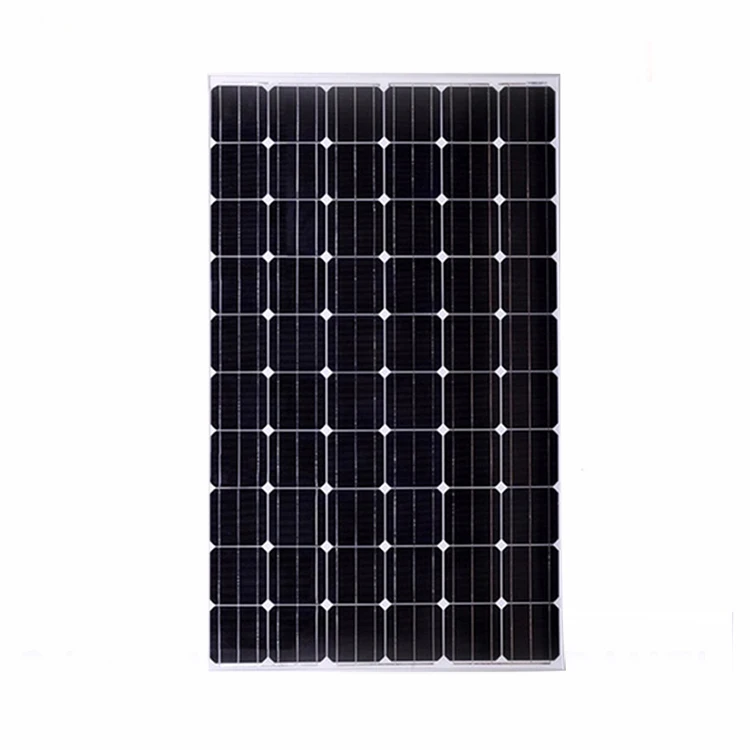

| Solar Panel > Name: Solar Panel Poly Type Power 260W,36V > Specification: BR-P260W > Remarks: Connection Method: Total Release Power:18.7KWH > QTY: 18PCS |

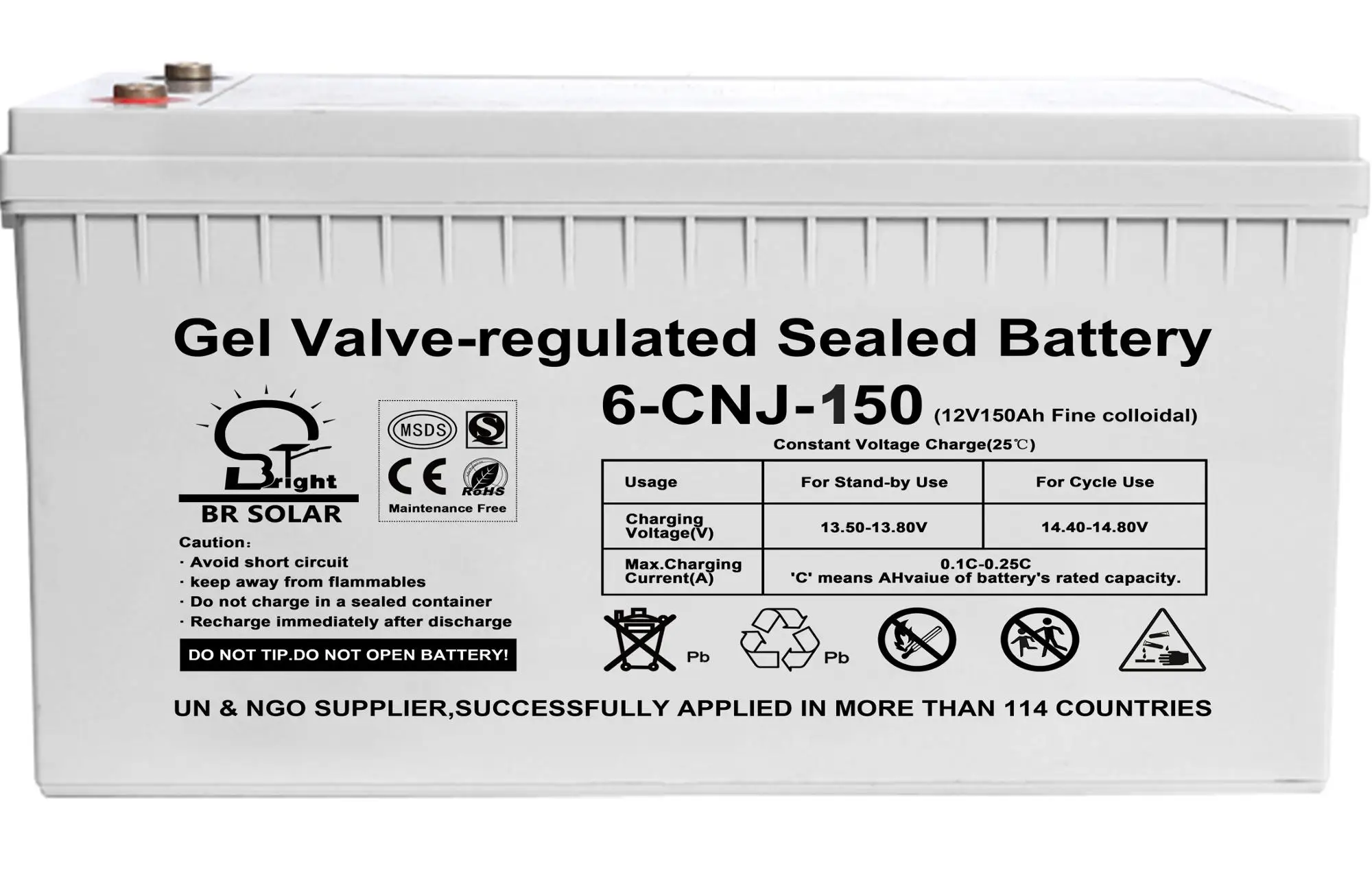

| Gel Battery
> Name: Solar Battery Including Connecting Cable. Gelled Type 150AH 12V > Remarks: 4 strings x 2 parallels Total Release Power:10KWH > QTY: 8PCS |  |
| Specification | ||||||
| Model: MPPT | 0.3-1KW | 1.5-6KW | ||||
| power rating(w) | 300 | 700 | 1500 | 3000 | 5000 | |
| 500 | 1000 | 2000 | 4000 | 6000 | ||
| Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
| Charge Current | 10A MAX | 30A MAX | ||||
| Battery Type | Can be set | |||||
| Input | Voltage Range | 85-138VAC/170-275VAC | ||||
| frequency | 45-65Hz | |||||
| Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | ||||
| frequency | 50/60Hz±1%( Inverter mode) | |||||
| Output wave | Pure Sine Wave | |||||
| Change time | < 10ms(Typical load) | |||||
| frequency | >85%(80% Resistive load) | |||||
| overcharge | 110-120%/30S;>160%/300ms; | |||||
| Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | |||||
| Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V ~150VDC | ||||
| PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | ||||
| Rated charge current | 30A(Max) | 60A(Max) | ||||
| MPPT efficiency | ≥99% | |||||
| Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||
| Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||
| Operating ambient temperature | -15-+50℃ | |||||
| Storage ambient temperature | -20 - +50℃ | |||||
| Operating / storage environment | 0-90% No Condensation | |||||
| Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | ||||
| Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | ||||
| Gross Weight (KG) | 12 | 19 | 25 | 35 | ||
| 20 | 30 | 38 | ||||

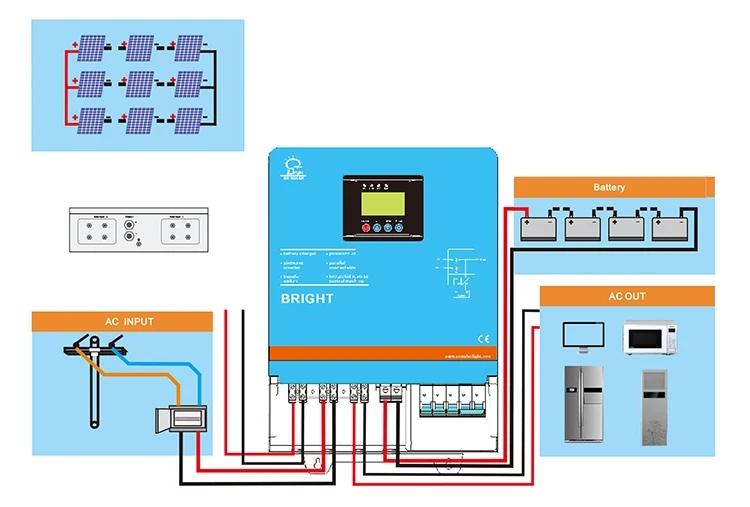

Connection Diagram:
Q1: Can I have a sample order for solar products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 5-7 days, mass production,Depend on the quantity
Q3: Are you a factory or a trading company?
A: We are the factory with high production capacity and product range of solar products in China. Welcome to visit us anytime.
Q4: How do you ship the goods and how long does it take to arrive?
A: Sample shipped by DHL, UPS, FedEx ,TNT etc. It usually takes 7-10 days to arrive. Airline and sea shipping also optional .
Q5: What is your Warranty Policy?
A: We offer 3 to 5 years warranty for the entire system and replace with new ones for free in case of quality problems.
| Contact Name: | Mrs Sherry Zhou | Contact Email: | se****e@brsolar.net |
| Contact Job Title: | Manager | Contact Mob: | 152***938 |
| Contact Tel: | +86-514-87600306 | Contact Fax: | |
| Address: | Yangzhou City, Jiangsu Province, China | Website: | http://www.brsolar.net |
Yangzhou Bright Solar Solutions.,Ltd
A brief introduction of us for you to learn us: Established in 1997, an ISO 9001:2015,CE&EN,RoHS,IEC,Soncap,PVOC&COC,SASO,TUV,FCC,IP67,etc approved Manufacturer and Exporter. And with 12 years' exporting and manufacturing experience,our Solar products have been successfully applied in more than 120 countries.
