convenient and practical power LCD Display inverter solar
Electrical & Power Energy Solar Power System
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram Others
Keywords:inverter solar inverter solar power system solar power inverter
| Product Category: | Electrical & Power Energy > Solar Power System | Trademark: | BR SOLAR |
| Product Package: | 535*435*172mm | Specifications: | 1KW |
| Place of Origin: | CHINA | Port: | Shanghai |

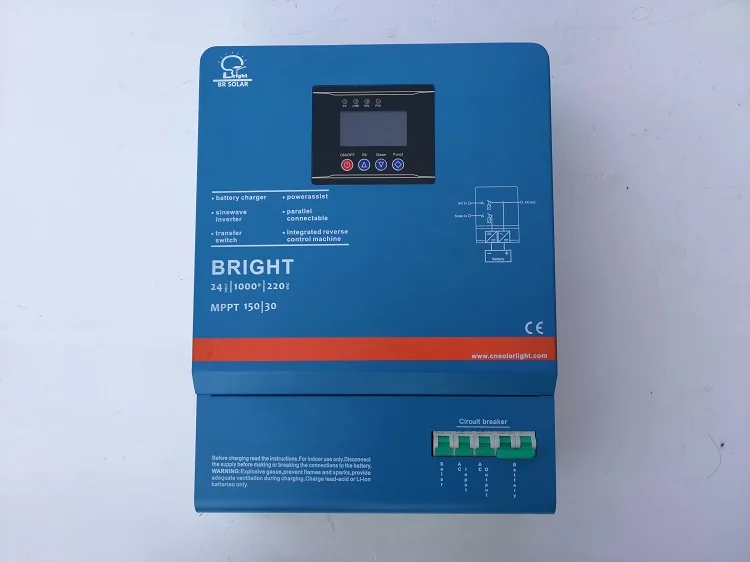

convenient and practical power LCD Display inverter solar
Features:
Pure sine wave output;
Low frequency toroidal transformer lower loss;
Brand new wide LCD screen, clearly and precisely shows working data;
Three -stage charging: Constant current, constant voltage, float charge;
Three types working modes; Battery type selectable;
Added fault code query function, easy to monitor the operation in real time;
Supports RS232 or RS485 communication port.
| Specification | ||||||
| Model: MPPT | 0.3-1KW | 1.5-6KW | ||||
| power rating(w) | 300 | 700 | 1500 | 3000 | 5000 | |
| 500 | 1000 | 2000 | 4000 | 6000 | ||
| Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 | |
| Charge Current | 10A MAX | 30A MAX | ||||
| Battery Type | Can be set | |||||
| Input | Voltage Range | 85-138VAC/170-275VAC | ||||
| frequency | 45-65Hz | |||||
| Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | ||||
| frequency | 50/60Hz±1%( Inverter mode) | |||||
| Output wave | Pure Sine Wave | |||||
| Change time | < 10ms(Typical load) | |||||
| frequency | >85%(80% Resistive load) | |||||
| overcharge | 110-120%/30S;>160%/300ms; | |||||
| Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | |||||
| Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V ~150VDC | ||||
| PV Power | 12VDC-30A(400W); 24VDC-30A(800W) | 12VDC-60A(800W); 24VDC-60A(1600W); 48VDC-60A(3200W) | ||||
| Rated charge current | 30A(Max) | 60A(Max) | ||||
| MPPT efficiency | ≥99% | |||||
| Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | |||||
| Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | |||||
| Operating ambient temperature | -15-+50℃ | |||||
| Storage ambient temperature | -20 - +50℃ | |||||
| Operating / storage environment | 0-90% No Condensation | |||||
| Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | ||||
| Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | ||||
| Gross Weight (KG) | 12 | 19 | 25 | 35 | ||
