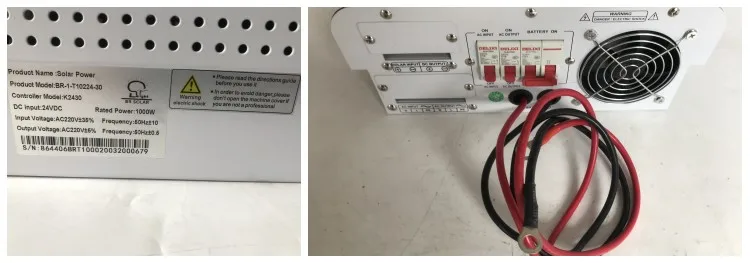

1kw new pwm pure sine wave solar inverter
Electrical & Power Energy Solar Components
MOQ:1 Piece(s)
Payment Method : L/C T/T D/P Wesstern Union Paypal Money Gram Others
Keywords:pwm inverter 1000w pwm with inverter
| Product Category: | Electrical & Power Energy > Solar Components | Trademark: | BR SOLAR |
| Product Package: | 580*385*230 | Specifications: | 1KW |
| Place of Origin: | CHINA | Port: | Shanghai |
1kw new pwm pure sine wave solar inverter
Pure sine wave output;
Low frequency toroidal transformer lower loss;
Brand new wide LCD screen, clearly and precisely shows working data;
Three -stage charging: Constant current, constant voltage, float charge;
Three types working modes; Battery type selectable;
Added fault code query function, easy to monitor the operation in real time;
Supports RS232 or RS485 communication port.
| Specification | ||||||||
| Model: T-1 | 10212/24 | 20224/48 | 30224/48 | 40248/96 | 50248/96 | 60248/96 | 70296 | |
| Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | |
| Peak Power(20ms) | 3000W | 6000W | 9000W | 12000W | 15000W | 18000W | 21000W | |
| Start Motor | 1HP | 2HP | 3HP | 3HP | 4HP | 4HP | 5HP | |
| Battery Voltage | 12/24VDC | 24/48VDC | 48/96VDC | 96VDC | ||||
| Size(L*W*Hmm) | 490*316*141 | 620*400*181 | ||||||
| Package Size(L*W*Hmm) | 580*385*230 | 700*485*265 | ||||||
| N.W.(kg) | 13 | 21 | 24.5 | 26 | 27 | 29 | 30 | |
| G.W.(kg) | 14.5 | 28.5 | 31.5 | 33 | 34 | 36 | 37 | |
| Installation Method | Wall-Mounted | |||||||
| Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) | ||||||
| AC Input Voltage Range | 73VAC~138VAC / 145VAC~275VAC | |||||||
| AC Input Frequency Range | 45Hz~65Hz | |||||||
| Max AC charging current | 15A MAX(Depending on the model) | |||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||
| Output | Efficiency(Battery Mode) | ≥85% | ||||||
| Output Voltage(Battery Mode) | 110VAC±2% / 220VAC±2% | |||||||
| Output Frequency(Battery Mode) | 50/60Hz±1% | |||||||
| Output Wave(Battery Mode) | Pure Sine Wave | |||||||
| Efficiency(AC Mode) | >99% | |||||||
| Output Voltage(AC Mode) | 110VAC±10% / 220VAC±10% | |||||||
| Output Frequency(AC Mode) | Tracking Automatically | |||||||
| Output waveform distortion(Battery Mode) | ≤3%(Linear load) | |||||||
| No load loss(Battery Mode) | ≤0.8% rated power | |||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | |||||||
| No load loss(Energy saving Mode) | ≤10W | |||||||
| Battery Type (Optional) | LEAD | Charge Voltage:14V;Float Voltage:13.8V(Single battery voltage) | ||||||
| OP-LE | Charge Voltage:14.2V; Float Voltage:13.8V(Single battery voltage) | |||||||
| LITHIUM | Charge Voltage:13V(Single battery voltage) | |||||||
| Customize battery | Charge and discharge parameters of different types of batteries can be customized according to user requirements | |||||||
| Protection | Battery undervoltage alarm | 11V, LITHIUM 9.5V(Single battery voltage) | ||||||
| Battery undervoltage protection | 10.5V, LITHIUM 9V(Single battery voltage) | |||||||
| Battery overvoltage alarm | 15V, LITHIUM 14V(Single battery voltage) | |||||||
| Battery overvoltage protection | 17V, LITHIUM 15V(Single battery voltage) | |||||||
| Battery overvoltage recovery voltage | 14.5V, LITHIUM 13.5V(Single battery voltage) | |||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||
| Temperature protection | >90°C(Shut down output) | |||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | ||||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||||||
| Inside Solar controller (Optional) | Charging Mode | MPPT or PWM | ||||||
| Charging current | 12V/24V/48V System: 10A,20A,30A,40A,50A,60A; 96V System: 50A | |||||||
| PV Input Voltage Range | 12V System: 15V-44V; 24V System: 30V-44V; 48V System: 60V-88V; 96V System: 120V-176V | |||||||
| Max PV Input Voltage(At 25°C) | 12V/24V System: 150V; 48V System: 150V; 96V System: 300V | |||||||
| PV Array Maximum Power | 12V System: 140W/280W/420W/560W/700W/840W; 24V System: 280W/560W/840W/1120W/1400W/1680W; 48V System: 560W/1120W/1680W/2240W/2800W/3360W; 96V System: 5.6KW/11.2KW | |||||||
| Standby loss | ≤3W | |||||||
| Maximum conversion efficiency | >95% | |||||||
| Working Mode | Battery First/AC First/Saving Energy Mode | |||||||
| Transfer Time | ≤4ms | |||||||
| Display | LCD(External LCD Display(Optional)) | |||||||
| Thermal method | Cooling fan in intelligent control | |||||||
| Communication | RS232/RS485(Optional) | |||||||
| Environment | Operating temperature | -10℃~40℃ | ||||||
| Storage temperature | -15℃~60℃ | |||||||
| Noise | ≤55dB | |||||||
| Elevation | 2000m(More than derating) | |||||||
| Humidity | 0%~95% (No condensation) | |||||||
