Welded Wire mesh Machine
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:welded wire mesh machine wire welding machine
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | 苏州 | Port: | 上海 |
Anber can supply the machine that the wire rod can feed in coil or feed in pieces.

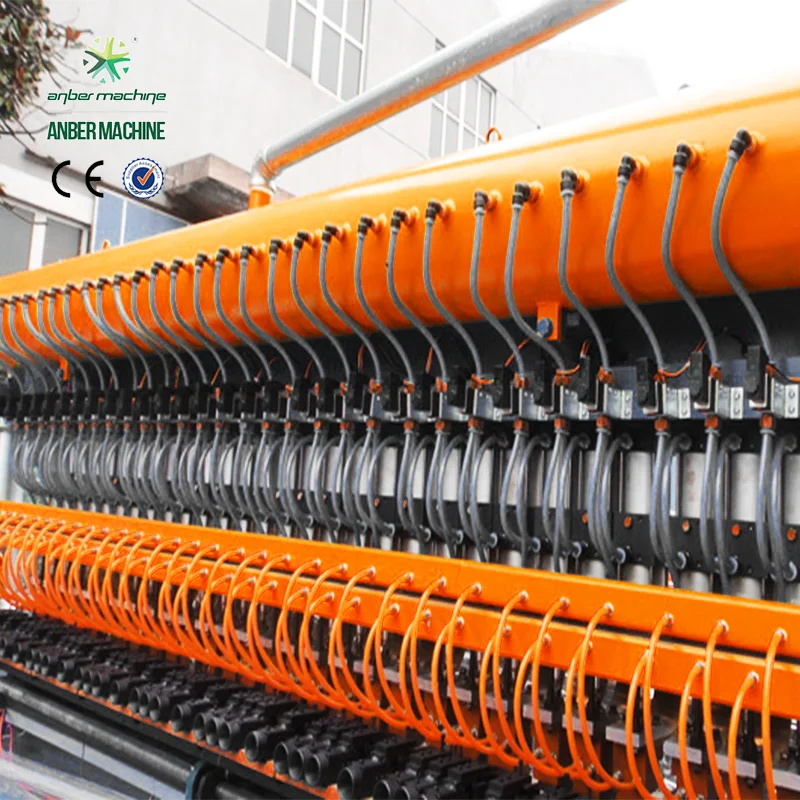

ABE series consist of the shelf for releasing line, warp-rectified mechanism, mesh welding machine, mesh cutting machine and the shelf for mesh falling materials. It can weld O2 to O12 cold-rolled reinforcing steel with rib, steel wire as well as stainless steel wire. It adopts hydraulic pressure transmission. PLC can compile procedure controlling in order to make the distance of the mesh check accurate and operate conveniently. It can adopt once pressurization, once electrify or once pressurization, three times electrify while welding. The disk of warp release the line, warp rectifying, weft increasing materials, mesh welding, mesh cutting the falling net for the fixed length. All the actions go on successively and automatically. Many types design can satisfy different requirements. ABE series are machinery, they adopt electrical machinery that can change frequency to control electrode servo, electrical machinery control the pulling mesh. It adopts Siemens
Max. mesh width(cross wire length) | 2500mm |
Line wire spacing | 150mm, freely programmable spacing |
Cross wire spacing | 150mm, can be adjusted |
Line wire diameter and feeding | Φ5– Φ12mm, pre-cut |
Cross wire diameter and feeding | Φ5– Φ12mm, pre-cut |
Max. welding speed | 60-70 strokes per minute |
Air consumption | ≥0.8Mpa, 2m3/min |
Cooling water consumption | ≥0.3Mpa, 3m3/min |
Machine overall dimension | 40m(L) × 8m(W) × 3m(H) |
Machine overall weight | 25,000Kg |
Electronic parts specifications: | |
Numbers of welding transformer | 6 |
Numbers of air cylinder (welding press) | 6 |

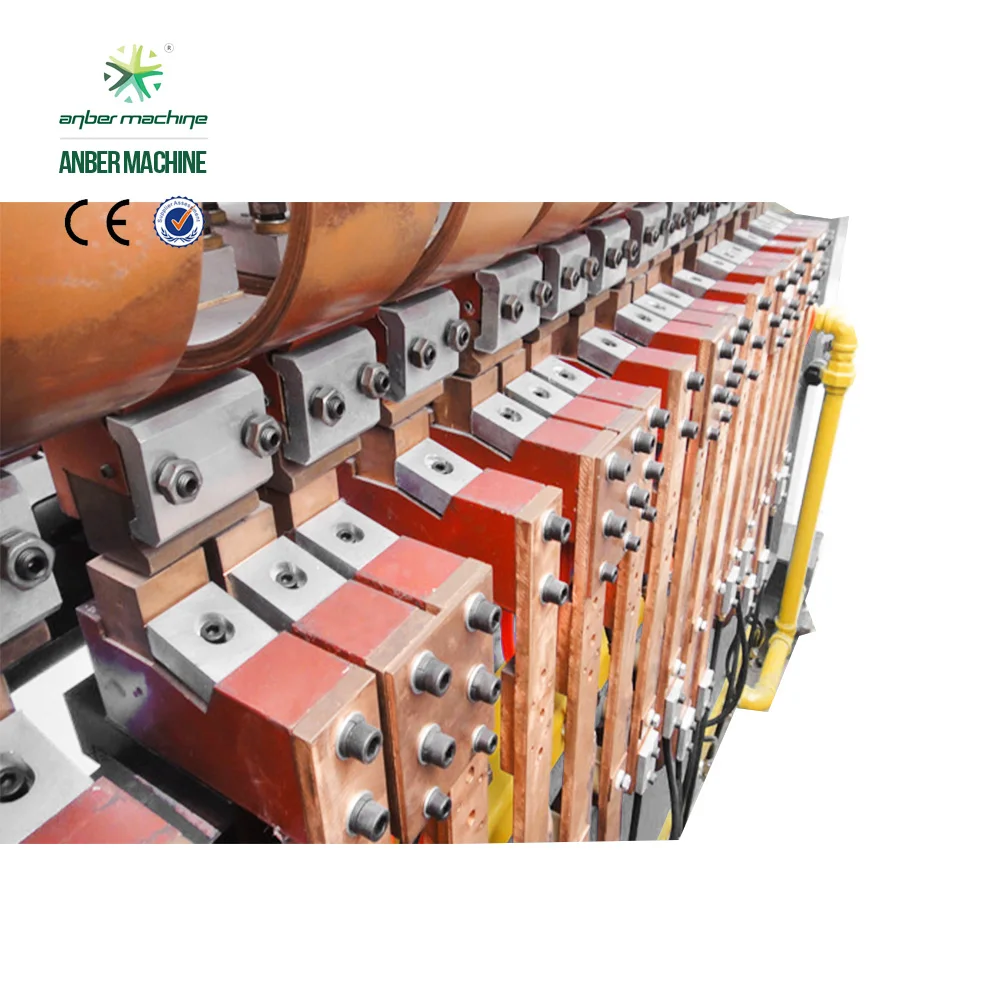

Numbers of electrode | 20 |
Electric power of welding transformer | 125KVA, 220V/60Hz/3Phase |
Consumption of compressed air | ≥4 M3/min |
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
From 2013, we ABO have attend many fairs, like
"IBS&KBIS 2016" in Las Vegas, 2016 BIG5 in Dubai, we will attend annual fair to show our new type.
Here is the fair show.
For metal beads and lath, we ABO have got many certificate,
1, rib lath sliting device patent,
2, multi angle beads slitting and rollforming patent,
3, Architrave beads patent,
4, Hi-tech enterprise cartificate
5, chinese industry-academy-research reward
Scan with wechat Our website
Add: No. 525, Jindong road, Jinxi town, Kunshan, China
Tel: (+86)-510-88239310/88239309
Fax: (+86)-510-88237950
Web: www.china-anbermachine.com
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.
3. What should we charge for your engineer?
You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from the machine finished installation.
5. How could we do after one year warranty period?
We can also do service for you, but you need pay for spare parts and engineer's cost.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
9. How many worker do we need running those machines?
One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
| Contact Name: | Mrs Melissa Chen | Contact Email: | fa****y@abosteel.com |
| Contact Job Title: | Manager | Contact Mob: | 133***130 |
| Contact Tel: | (+86)-13382240130 | Contact Fax: | (+86)-510-88239310/88239309 |
| Address: | NO. 525. Jingdong road, Jinxi town, Kunshan, China | Website: | http://www.abosteel.com/cn/products.html |
ABO Building Materials (kunshan) Co., Ltd. is a professional building mesh manufacturer located in Kunshan, Jiangsu province, China, near to Shanghai Port, one of the largest shipping port in China.
ABO has occupied 20000 square meters, and also has got 100 acres in the industrial zone for the future expansion.
We have high speed machines to match with the big requirement of the expanded metal lath, plaster mesh, angle bead, truss girder, rib lath, etc.
ABO has hundreds of patents for the technic and about 60 patents for the product invention.
Besides, we work with leading raw material suppliers in order to provide you with reliable items.
Our company provides a wide range of building materials including:
● Angle Beads
● Rib Lath
● Coil lath
● Diamond metal lath
● Expanded metal mesh
● Welded wire mesh
● Architrave Beads
● Plaster stop beads
● Control joint beads
● 3D Truss girder
● Fiber glass mesh
We are able to offer your quality at highly competitive prices. Endearvour to develop strong, long-lasting business to business relationships with our customers through careful consideration of client's needs.
