20P102 2000mm expanded metal mesh machine, Heavy-duty expanded metal mesh machine
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Set(s)
Payment Method : L/C T/T
Keywords:Heavy-duty expanded metal mesh machine expanded diamond mesh machine
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
Expanded Metal Mesh Machine Description
What is expanded metal mesh?
Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
Expanded Metal Mesh Production Process
1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.

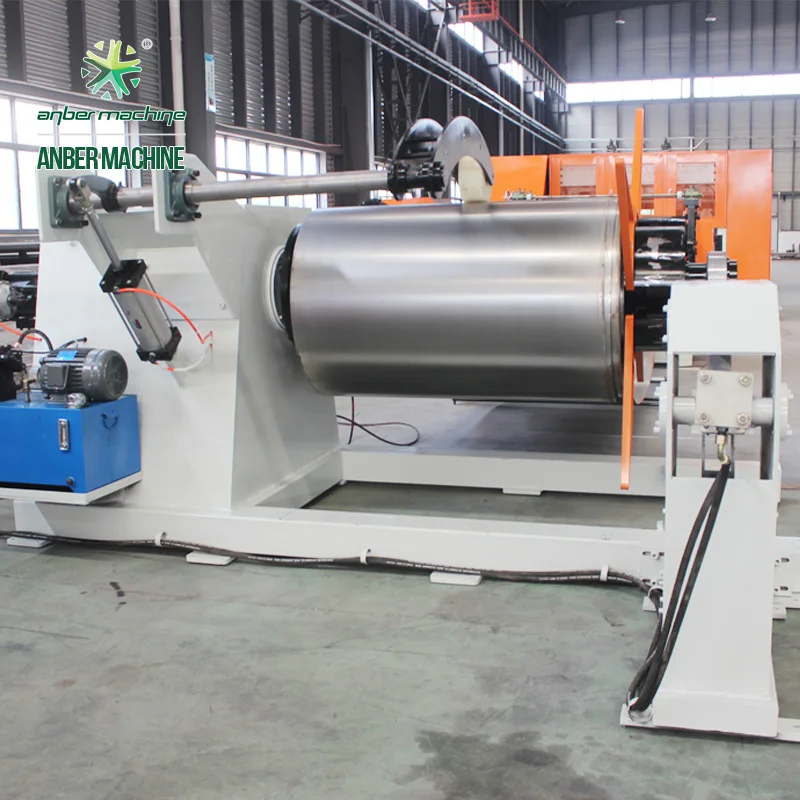

7T Decoiler
Main technical parameters
Max. Coil width: 1500mm
Max. Loading weight: 7 T
Coil inner diameter: 508mm or according to customer’s demand
Main motor power: 11KW
Overall size of machine(L*W*H):3820*2100*1660mm
Weight: about 2.2T
Material straightening machine
Main parameter
Max. Material width: 1500mm
Max. Thickness of mild steel: 3 mm for mild steel
Rollers :9 rollers (4upper+ 5Lower )
Rollers diameter:150mm
Hardness:40Cr material,58°
Motor:7.5KW
Machine size(L*W*H):2100*1400*1730mm
Weight: about 4.0 T

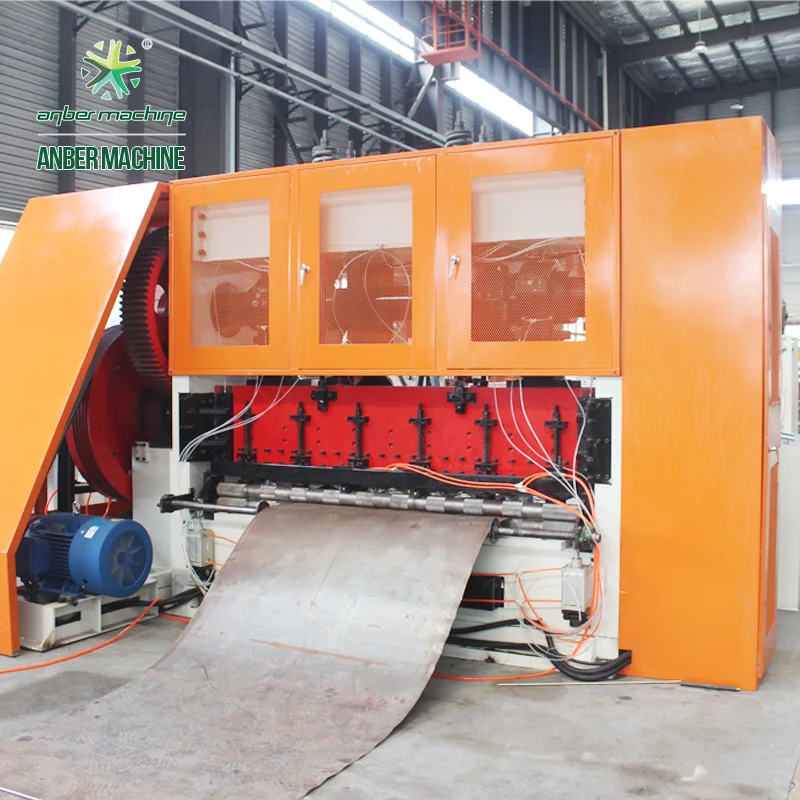

2000mm Expanded metal machine
Main technical parameters
Model: ABE-6.0-2000
Nominal Pressure Force: 100 Tons
Max. Width of the steel plate: 2000 mm
Thickness of material: ≤6.0mm for mild steel
Max. Strokes per minute: 80strokes/min
Stroke of slide: 80mm
Motor power: 30 kw
Max. LWD: 200 mm
Max. SWD: 80mm
Overall dimension of main machine (L*W*H): 4200*1900*2500mm
Machine weight: about 14 tons
Automatic lubrication system
Servo motor feeding system
Control system: PLC (length calculate, pieces calculate and auto cutting)
Expanded mesh leveling machine
Main parameter
Max width of expanded mesh: 1500mm
Max thickness of raw material: 3 mm for mild steel
Quantity of rolls:17 rolls
Working method: 2 rolls feeding+15 rolls leveling
Diameter of rolls: 60-70mm
Surface Hard:HRC58
Motor power:11 KW
Hydraulic cutting device
Machine size(L*W*H):2470*1325*1600 mm
Weight: about 1.5 T
Working speed: frequency control

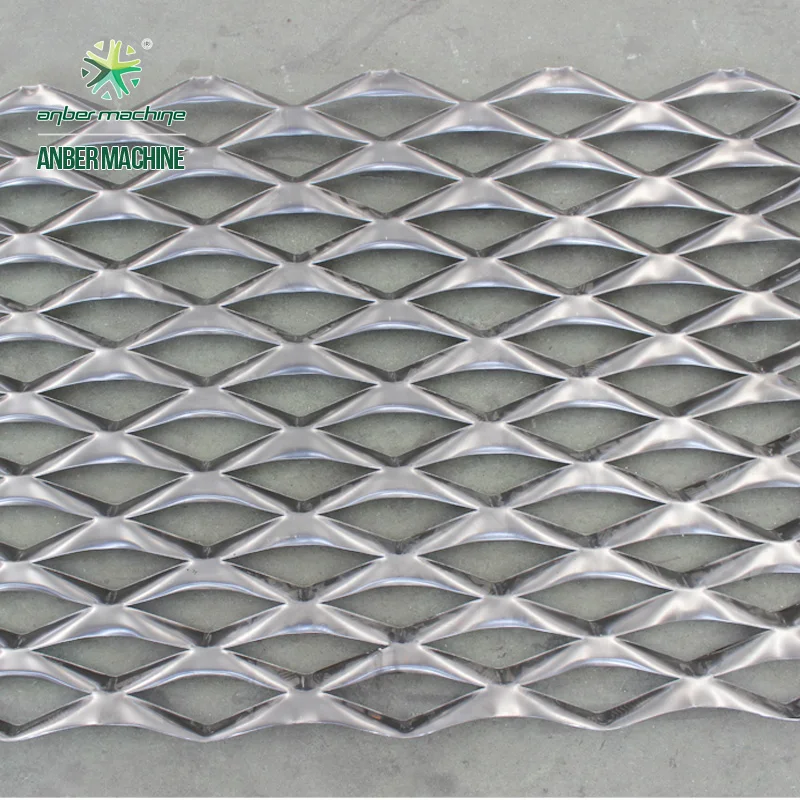

Expanded metal mesh
Main parameter
LWD*SWD:200*80mm
Strand width:30mm
Thickness:1.5mm
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
From 2013, we ABO have attend many fairs, like
"IBS&KBIS 2016" in Las Vegas, 2016 BIG5 in Dubai, we will attend annual fair to show our new type.
Here is the fair show.
For metal beads and lath, we ABO have got many certificate,
1, rib lath sliting device patent,
2, multi angle beads slitting and rollforming patent,
3, Architrave beads patent,
4, Hi-tech enterprise cartificate
5, chinese industry-academy-research reward
Scan with wechat Our website
Add: No. 525, Jindong road, Jinxi town, Kunshan, China
Tel: (+86)-510-88239310/88239309
Fax: (+86)-510-88237950
Web: www.china-anbermachine.com
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.
3. What should we charge for your engineer?
You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from the machine finished installation.
5. How could we do after one year warranty period?
We can also do service for you, but you need pay for spare parts and engineer's cost.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
9. How many worker do we need running those machines?
One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
