19P118 2000mm expanded metal mesh machine production line
Manufacturing & Processing Machinery General Industrial Equipment
MOQ:1 Set(s)
Payment Method :
Keywords:expanded mesh machine expanded metal mesh machine
| Product Category: | Manufacturing & Processing Machinery > General Industrial Equipment | Trademark: | |
| Product Package: | Specifications: | ||
| Place of Origin: | Port: | Shanghai |
What is expanded metal mesh?
Expanded Metal mesh is traditionally seen as a metal material with diamond shaped holes. Expanded Metal is produced by an expanding machine, which uses a pressured slitting and stretching process to transform solid metal sheets and coils into expanded mesh. Most types of metal, including precious and specially produced metals, can be expanded.
Expanded Metal Mesh Production Process
1. Sheets or coils or metal are fed into the expanding machine. A little metal can create a lot of mesh, adding value and saving resources and money.
2. Each machine is fitted with a unique "Knife", dedicated to a particular pattern. New patterns and knives can be created in-house for specific applications.
3. The machines are then programmed or manually controlled to ensure the metal is expanded to the exact specification. Rigorous quality checks are carried out to ensure product consistency throughout the expanding process.
4. Using the unique shearing and stretching process means very little waste is created. the metal is sheared and then stretched in a single process creating the apertures and therefore expanding the metal. The mesh is then either cut into sheets or wound onto coils ready for shipping or further processing.
10T Hydraulic Decoiler with coil car
Main technical parameters :
Max. Coil width: 1250mm
Max. Loading weight: 10T
Coil inner diameter: 508mm or according to customer’s demand
Main motor power: 7.5-11KW
Hydraulic station: 2.2KW
Overall size of machine(L*W*H):3900*1720*1900mm
Weight: about 3.5T
Material straightening machine
Main parameter
Max. Material width: 1250mm
Max. Thickness of mild steel: 3.5mm
Rollers :9 rollers (4upper+ 5Lower )
Rollers diameter:150mm
Motor:7.5KW
Machine size(L*W*H):2600*1380*1450mm
Weight: about 4.0 T

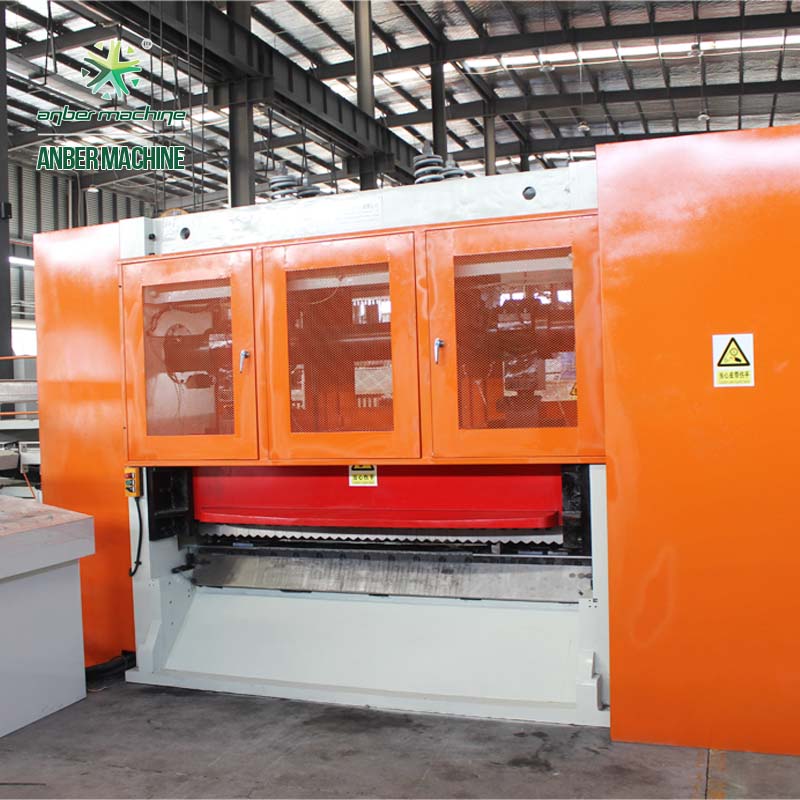

2000mm Expanded metal machine
Main technical parameters :
Model: ABE-6.0-2000
Nominal Pressure Force: 160 Tons
Max. Width of the steel plate: 2000 mm
Thickness of material: ≤6.0mm for mild steel
Max. Strokes per minute: 80 strokes/min
Stroke of slide: 80mm
Motor power: 30 kw
Max. LWD: 200 mm
Max. SWD: 100mm
Overall dimension of main machine (L*W*H): 4200*1900*2500mm
Machine weight: about 14 tons
Automatic lubrication system
Servo motor feeding system
Control system: PLC (length calculate, pieces calculate and auto cutting)
Four-roller flattening machine
Main parameter
Model: ABE-FYP1250
Max. Thickness of material: 3.5mm for mild steel
Max. Width of expanded mesh: 1250mm
Two working roller length: 1400mm
Two working roller diameter: Φ270mm
Two working roller hardness: HRC58
Two support roller length: 1200mm
Two support roller diameter: Φ500mm
Two support roller hardness: HRC53
Roller material: alloy steel
Adjusted method: worm and gear+hand wheel
Motor power: 11-15kw, speed control by converter
Overall size of machine(L*W*H): about 3220*1200*2100mm
Machine weight: about 7.5 Tons
Expanded mesh leveling and cutting machine
Main parameter
Max width of expanded mesh: 1250mm
Max thickness of raw material: 3.5mm for mild steel
Quantity of rolls:17 rolls
Working method: 2 rolls feeding+15 rolls leveling
Diameter of rolls: 50-70mm
Surface Hard:HRC58
Motor power:7.5KW
Hydraulic cutting device
Machine size(L*W*H):2150*1650*1790 mm
Weight: about 3.5 T
Working speed: frequency control
Metal mesh
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
Scan with wechat Our website
Contact: Kathy Tel/Whatsapp: +86 15861575609
Add: No. 525, Jindong road, Jinxi town, Kunshan, China
Tel: (+86)-510-88239310/88239309
Fax: (+86)-510-88237950
Web: www.china-anbermachine.com
1. How long will your engineer reach our factory?
Within one week after machine arrival your factory.
2. How many days will you finish installing ?
Normally we will finish installation and training within 7 days. Machine installation only need 1-2 days. The left time just training your workers.
3. What should we charge for your engineer?
You should charge for the air tickets, hotel, food and also their salary 100USD one day per person.
4. How long is your machine's warranty period?
All our machine have one year guarantee, starting from the machine finished installation.
5. How could we do after one year warranty period?
We can also do service for you, but you need pay for spare parts and engineer's cost.
6. How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
7. Does your engineer understand English?
Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
8. How do we solve the machine problem after your engineer leaving?
Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
9. How many worker do we need running those machines?
One or two workers required for machine operation, there will be only one worker for our micro type expanded metal mesh machine within 25T punching force otherwise need two workers for hevay duty expanded metal machine.
